Everbilt 9236061 - Dimensions; Cabinetry Dimensions; Drawer Dimensions; Mounting Dimensions

9/32”
(7 mm)
ø 1/4” (6 mm)
depth 3/8” (10 mm)
7/16” (11 mm)
5

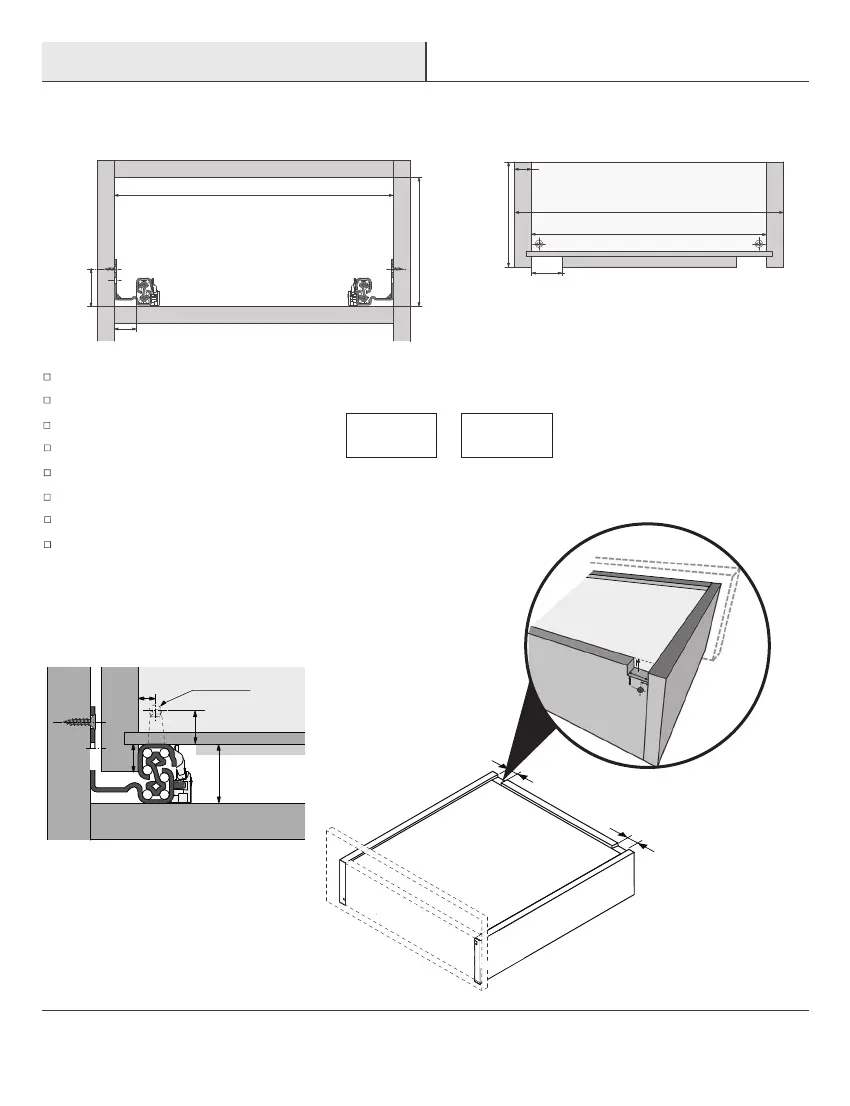

Dimensions
Please review these diagrams and measure and mark your installation location before you begin the installation procedures.
MOUNTING DIMENSIONS
Inside cabinet width (ICW)
Cabinet opening height
13/16" (21 mm)
1-15/32"
(37 mm)
CABINETRY DIMENSIONS
1 3/16"
(30 mm)
1 3/16"
(30 mm)
15/32"-19/32"
(12-15 mm)
1 3/16" (30 mm)
7/16"
(11 mm)
9/32"
(7 mm)
diameter of drill-hole = Ø 1/4" (6 mm)
depth of drill-hole = 38" (10 mm)
1” (26 mm)
1-3/16" (30 mm)
Drawer height
Outside drawer width
Inside drawer width
Drawer side thickness
1/2" (13 mm) or 5/8" (16 mm)
DRAWER DIMENSIONS
Drawer depth: 21 in. (533 mm) outside length of drawer sides, without decorative front, for a four sided box
Drawer slides will not work with 3/4 in. (19 mm) drawer slides. Max. drawer side thickness = 5/8 in. (16 mm)
Drawer side thickness must be 1/2 in. (13 mm) or 5/8 in. (16 mm)
Outside drawer width = Inside cabinet width minus 5/8 in. (16 mm) or 3/8 in. (10 mm)
Inside drawer width = Inside cabinet width minus 1-21/32 in. (42 mm)
Maximum drawer height = cabinet opening height minus 13/16 in. (20 mm)
Minimum cabinet opening height = drawer height plus 13/16 in. (20 mm)
Dimensions in millimeters (inch approximations as noted)
Bottom
15/32”-19/32
12-15
mm
