Everbilt 9236061 - Metal Rear Attachment Set

7

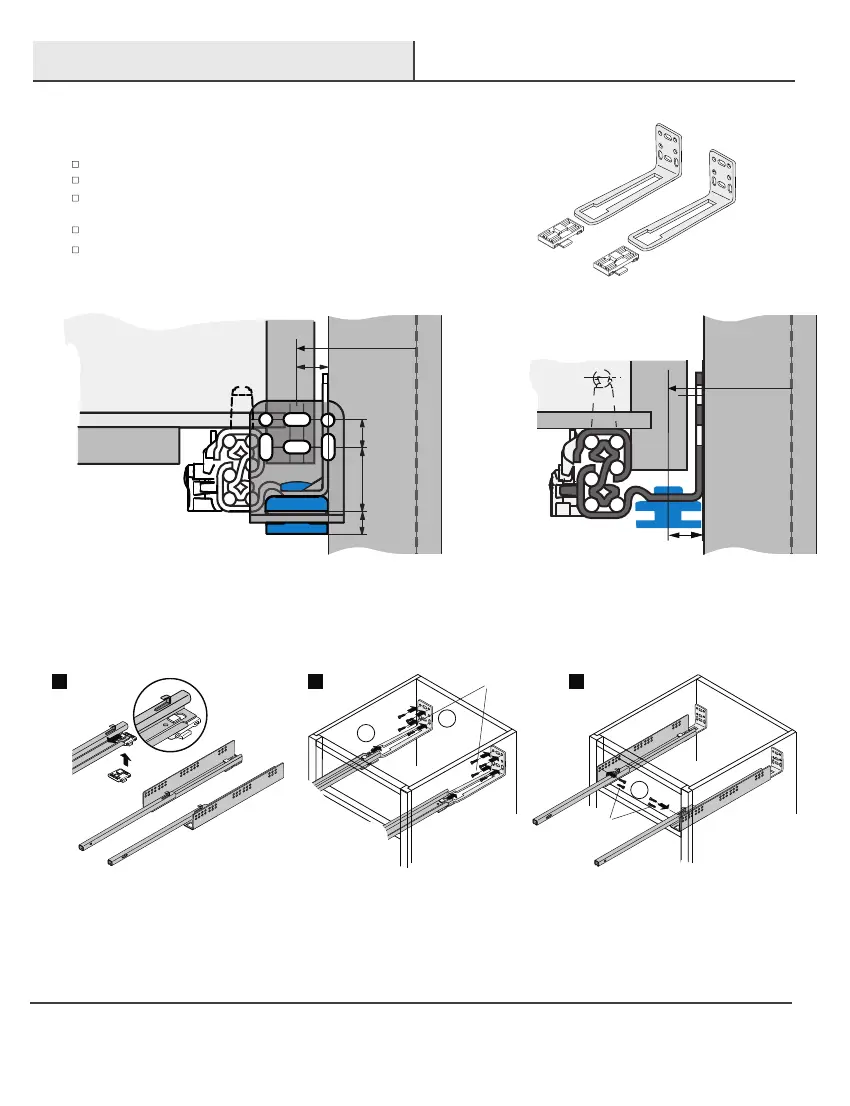

Face Frame Installation
3
Metal rear attachment set (screw-on)
Set contains 2 metal rear mount rackets and 2 plastic connectors
Non-handed, two-piece design
For up to 50 mm (1 15/16“) depth adjustment
and ± 1,5 mm (1/16“) side adjustment
Additional adjustment via oblong holes
Installation recommended with min.
four panhead screws (F)
2
1
3
1
2 3
** The Face Frame Bracket
can also be placed upside down
**
**
G
G
3/8 " (10 mm)
3/8 " (10 mm)
5/16 "
(8 mm)
25/32 "
(20 mm)
11/32
"
(9 mm)
* Center of rear
adapter
* Center of rear
adapter
* Center of the metal rear adapter = Width of the face frame - Thickness of the cabinet side panel + 3/8 " (10 mm)
Face frame Face frame
