Face Frame Installation
1

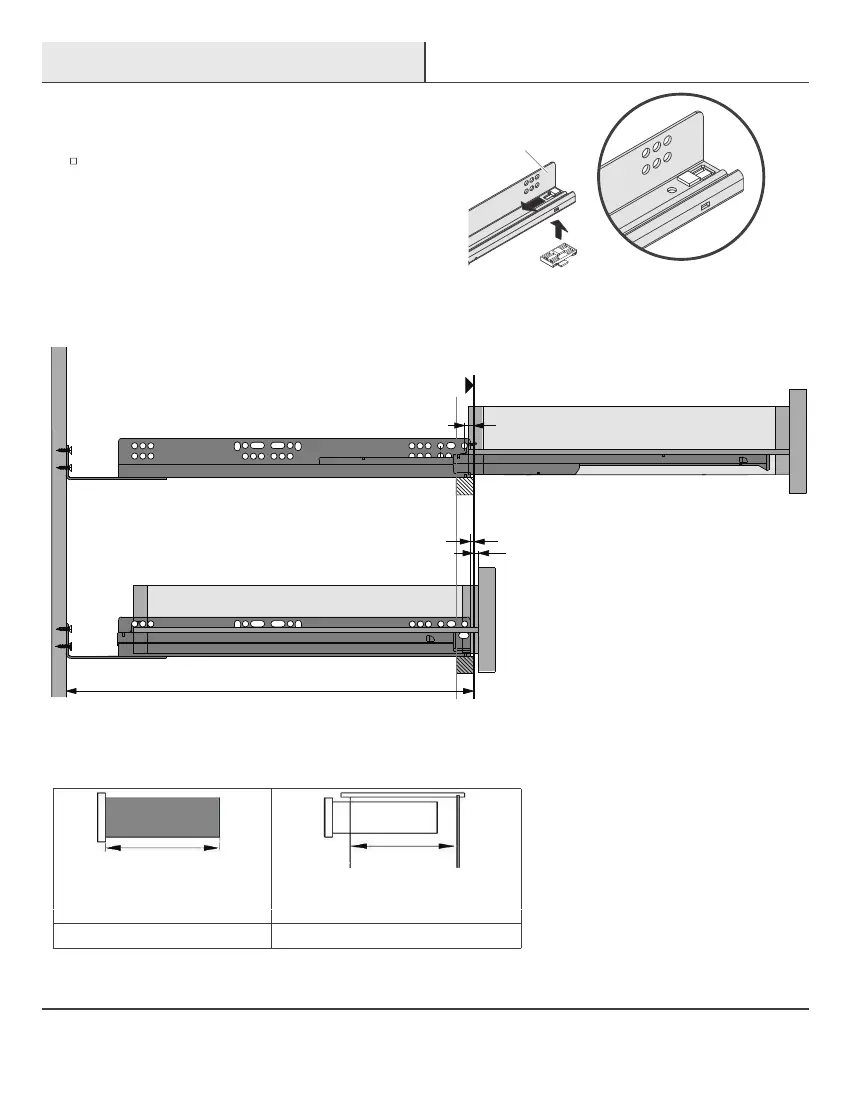

Preparing the slides
Slide plastic connector from rear bracket into the notch
on the left and right drawer slides (A and B) forward, as shown.
A/B
6 HOMEDEPOT.COM
Please contact 1-800-305-1726 for further assistance.
Cabinet front edge
Minimum/maximum cabinet depth (see below)
Face frame application with
overlay decorative front
Front gap 1/16“ (1.5 mm)
Setback 3/32“ (2 mm)
3/8“ (10 mm)
Inset application increases minimum cabinet depth
by thickness of decorative front.
2
Face frame application
Drawer box length Minimum / maximum inside cabinet depth
with metal rear attachment bracket
inch
mm inch mm
21
"
(533 mm)
21 7/8
" -
23 3/4
"
(555 - 605 mm)
