Frameless Installation
2

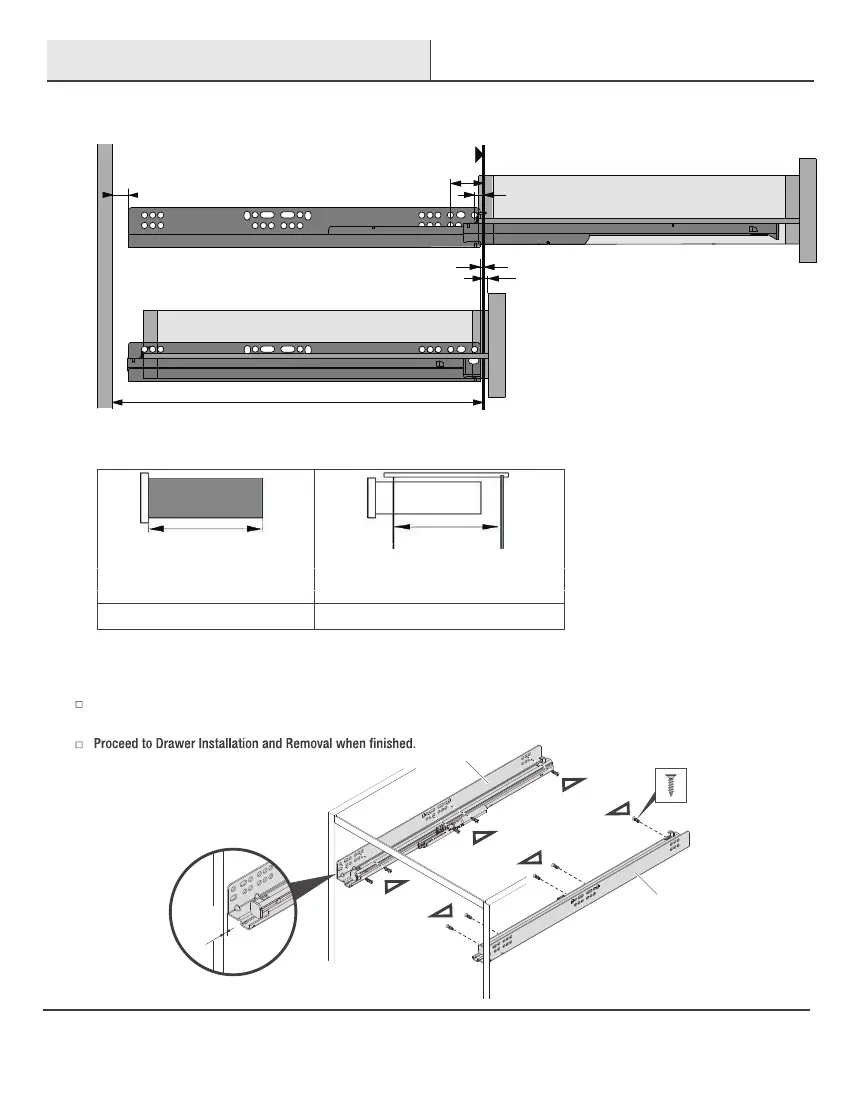

Installing the drawer slides
Attach the left and right drawer slides (A and B) to the inside of the cabinet using #6 x 5/8 in. screws (G).
Ensure you leave a 1/16 in. (2 mm) space between the face of the cabinet and the start of the drawer slides.
#6x5/8" (G)"
B
A
1
Frameless application
Drawer box length Minimum inside cabinet depth
inch mm inch mm
21
" (533 mm)
21 5/8
" (550 mm)
Cabinet front edge
Minimum cabinet depth (see below)
Inset application increases minimum cabinet depth
by thickness of decorative front.
Frameless application with
overlay decorative front
Front gap 1/16“ (1.5 mm)
Setback 3/32“ (2 mm)
3/8“ (10 mm)
1 7/16“ (37 mm)
Min. 5/8“ (16 mm)
To Next Page
