ASSEMBLY-REAR FENDER STICK

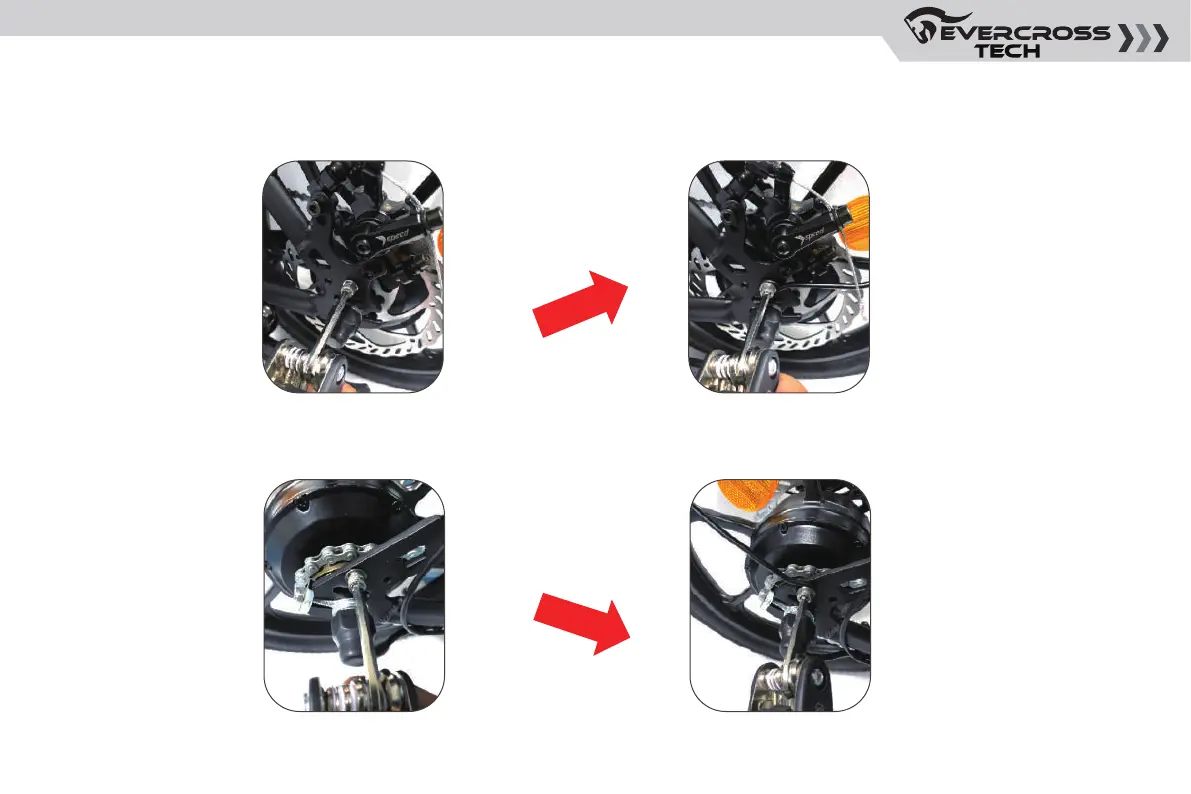

(1)Use the No. 5 Allen wrench in the 16-in-1 tool to remove the fender support fixing screws and washers
pre-installed on the left and right sides of the frame, as shown in the picture on the right.
(2)Pass the support stick through the fender support stick fixing screw and tighten it into the corre-
sponding screw holes on both sides of the frame with a No. 5 hexagonal wrench, as shown on the left.
