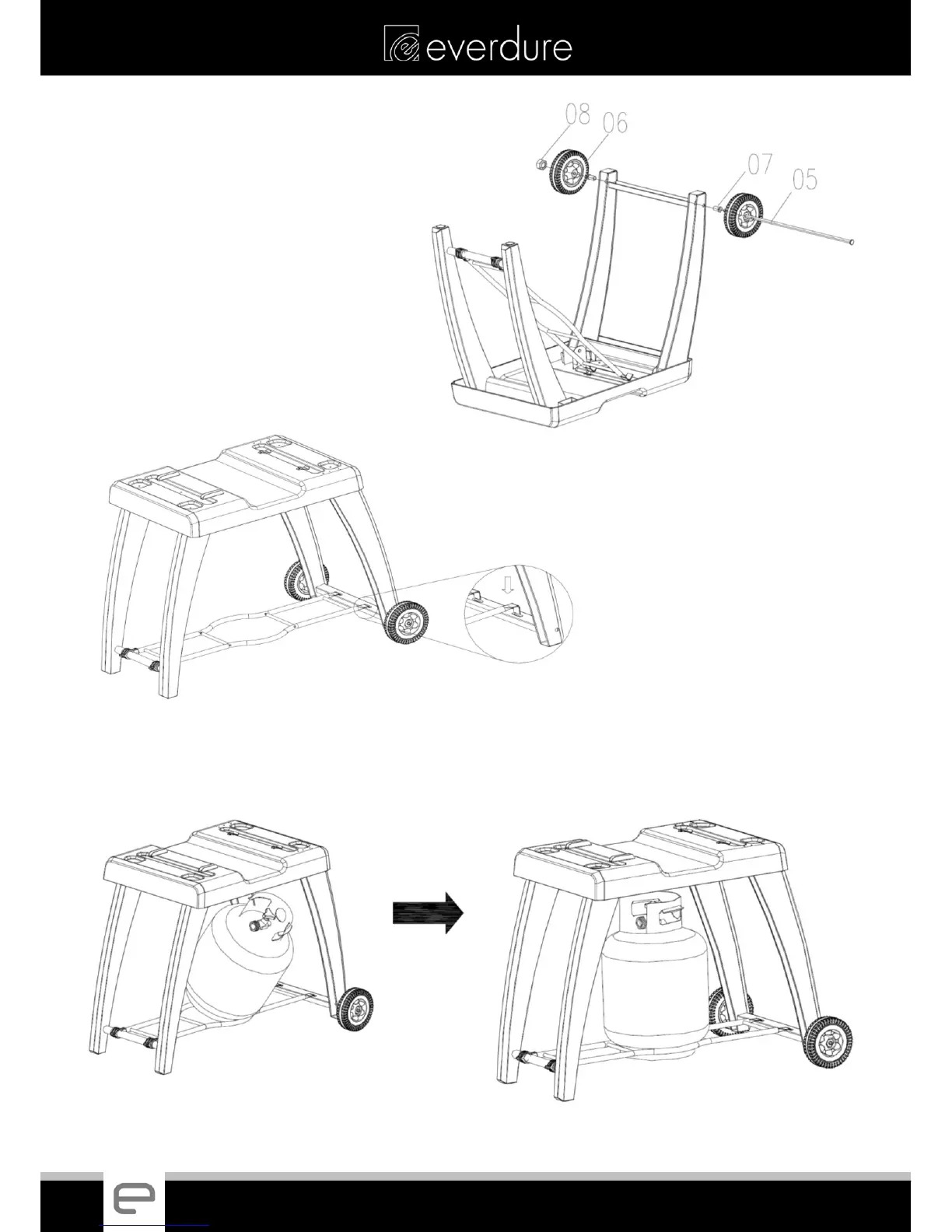

3. Fix the wheels onto the axle leg assembly
with the axle and M8 nut. A wheel spacer is
placed between each wheel and the leg, with
the wider end closest to the wheel. There is a
flattened area on the axle which can be used
to secure the axle while fully tightening the nut.
4. Carefully turn the trolley stand over
onto its legs and wheels and place the
hooks at the end of the cylinder support
into the slots in the support bar of the
axle leg assembly.
5. Place the gas cylinder in the centre of the cylinder support.
11
