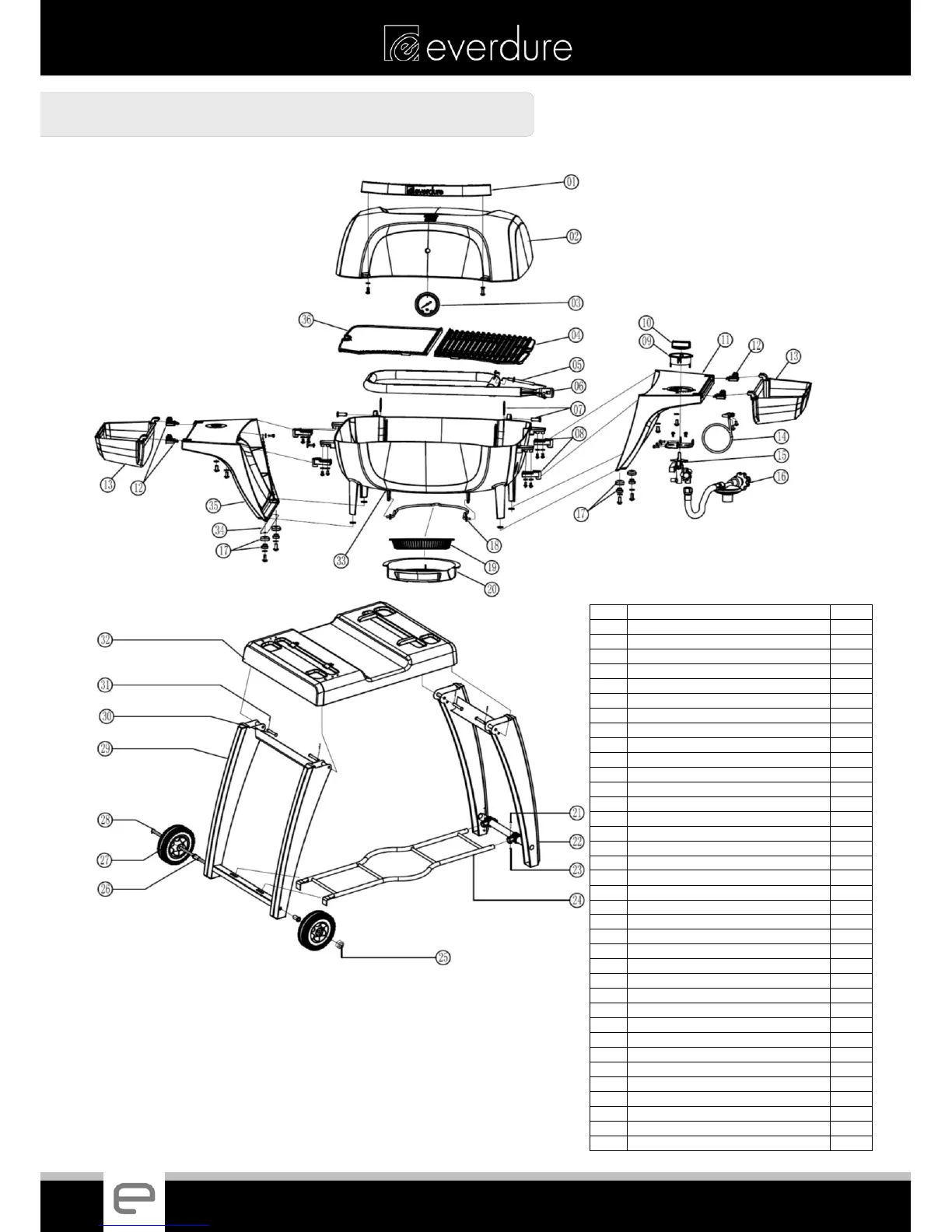

PARTS LIST
REF PART NAME QTY
01 Hood Handle (M4 Screw & washer) 1
02 Hood 1
03 Temperature Indicator 1
04 Right Hand Open Grill Plate 1
05 Ignition Pin 1
06 Burner 1
07 Hood Shaft & Pin 2
08 Bracket Sets (A&B) 4
09 Control Knob Bezel 1
10 Control Knob 1
11 Servery Handle Left 1
12 Servery Hinges 4
13 Servery 2
14 Hose Bracket 1
15 Valve & Manifold 1
16 Hose & Regulator (LPG Only) 1
17 Foot Assembly (2 parts) 4
18 Fat Tray Support 1
19 Foil Tray 1
20 Fat Tray 1
21 M4 x 25mm Screw 2
22 Leg Assembly 1
23 M4 Nut 2
24 Cylinder Support 1
25 M8 Nut 1
26 Wheel Spacer 2
27 Wheel 2
28 Axle 1
29 Axle Leg Assembly 1
30 Pin 4
31 Split Pin 4
32 Trolley Top 1
33 Barbecue Chassis 1
34 Trolley Fixing Bracket 1
35 Servery Handle Right 1
36 Left Hand Solid Plate 1
15
