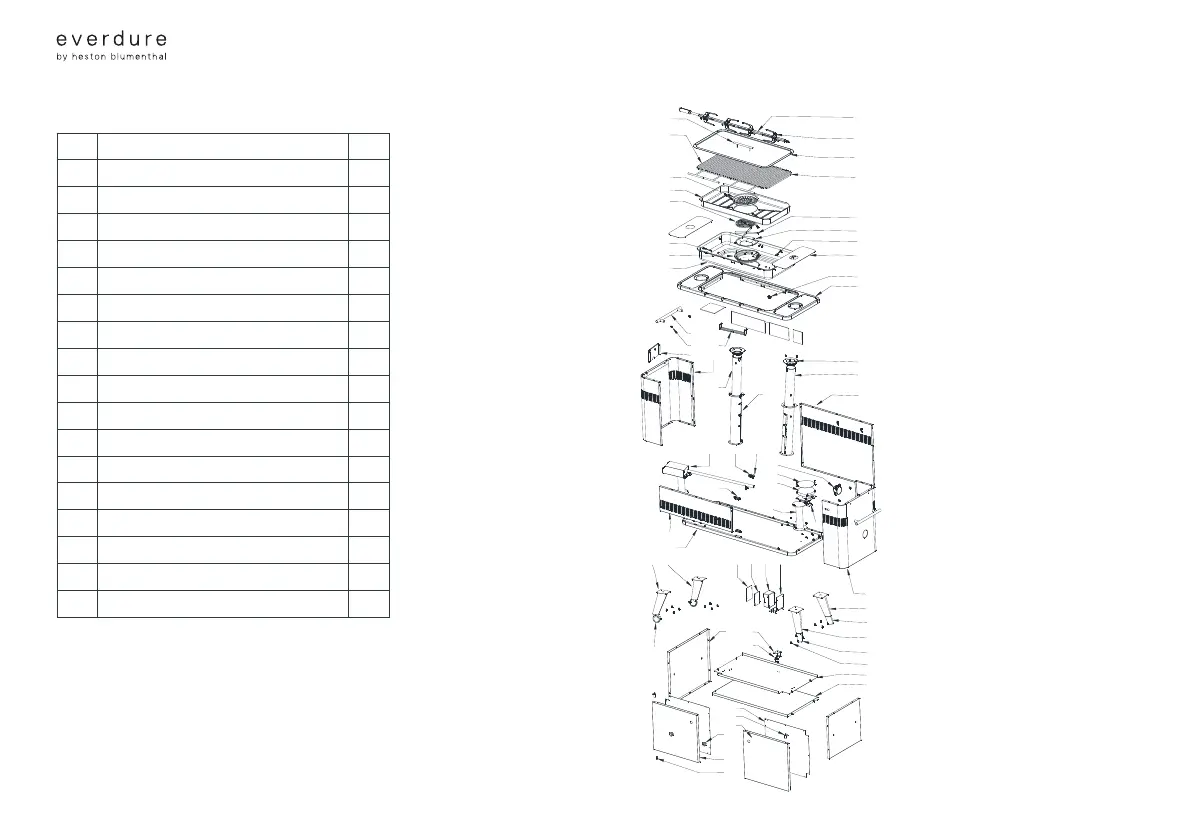

Everdure HUB - Page 17

17
Assembly, Operation & Maintenance Instructions
46 Thermostat 1
47 Castor Leg Front 1
48 Cabinet Top Panel 1
49 Cabinet Side Panel 2
50 Cabinet Shelf 1
51 Door Inner Panel 2
52 Door Upper Hinge 2
53 Left Hand Door 1
54 Right Hand Door 1
55 Door Handle 2
56 Door Lower Hinge 2
57 Lockable Castor 2
58 PCB Top Cover 1
59 PCB 1
60 PCB Bottom Cover 1
61 PCB Mounting 1
62 Element Switch 1
63 Rotisserie Motor Switch 1
Note: List does not include all fasteners.
