INSTALLATION
CABINET DIMENSIONS & VENTILATION REQUIREMENTS

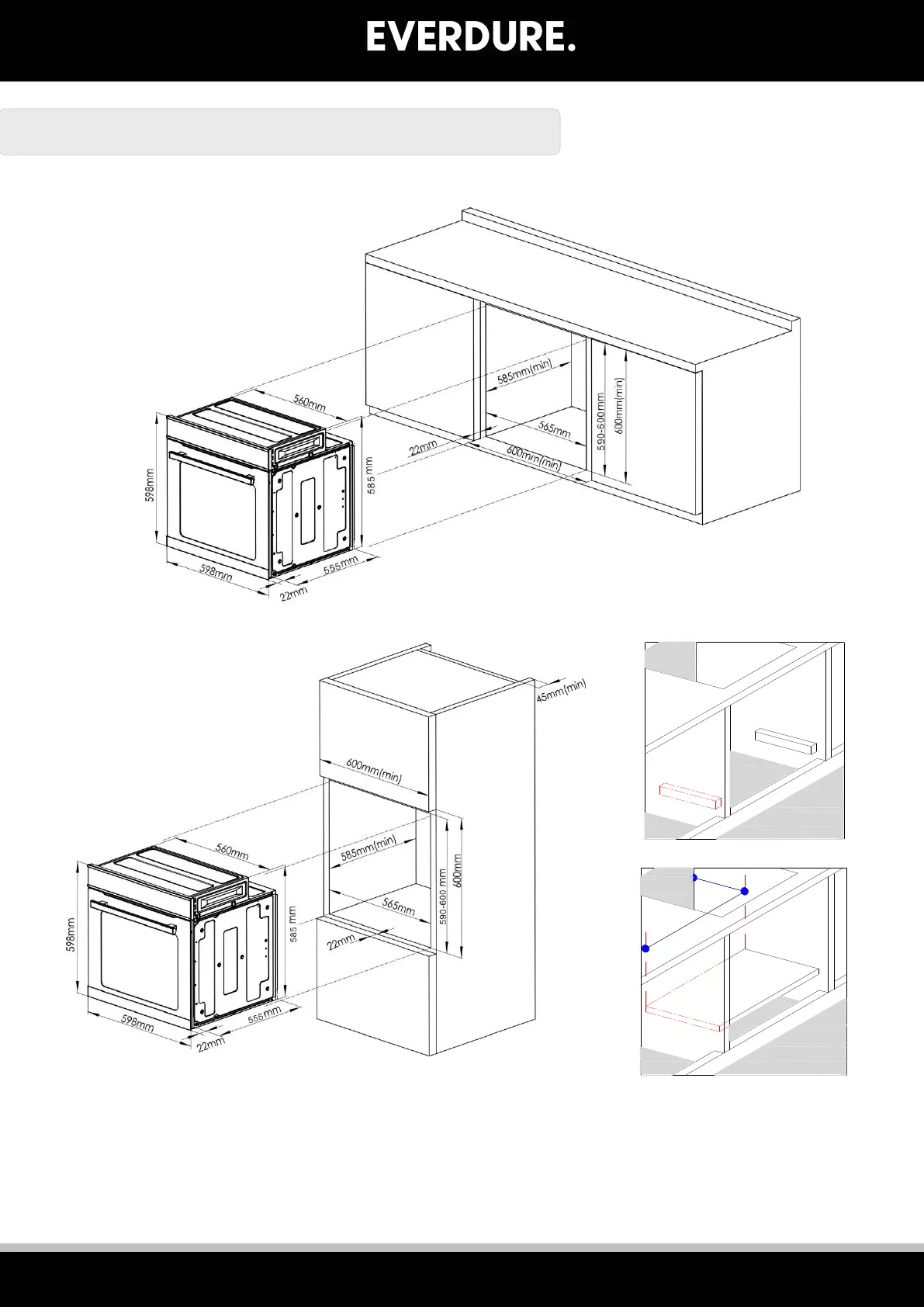

The figures below show the ventilation and cut-out requirements for the installation of the appliance into a standard
kitchen cabinet. A gap is required at the rear, with ventilation below and above, allowing the air to enter below the
appliance and exit above it. If the oven rests on a continuous flat surface, there must be an aperture of at least
45x560mm behind the oven to allow the air to flow. Failure to follow this will result in damage to your appliance
and/or surrounding cabinets. In taller wall cabinets, always leave a gap up the back of the cabinets for extra
ventilation.
