Electrical System
The switch is a three-position switch. The center
position is OFF. Moving the switch in one direction
will pay the anchor line out. Moving the switch in
the opposite direction will pull the anchor line in.
Fwd Bilge
Manually activates the forward bilge pump located
in the bilge below the head compartment sole.
The pump moves water out through a thru-hull
tting in the hull. The pump is also activated by
an automatic oat switch that is activated when-
ever the batteries are connected. This pump will
run as needed whenever the water in the bilge
accumulates high enough to raise the oat switch
to the ON position and turn off when the water
is removed.
Aft Bilge 1
Manually activates the aft bilge pump located
in the stern bilge near the transom. The pump
moves water out through a thru-hull tting in the
hull. The pump is also activated by an automatic
oat switch that is activated whenever the batter-
ies are connected. This pump will run as needed
whenever the water in the bilge accumulates high
enough to raise the oat switch to the ON position
and turn off when the water is removed.
Aft Bilge 2
Manually activates the aft bilge pump located in
the stern bilge below the batteries. The pump
moves water out through a thru-hull tting in the
hull. The pump is also activated by an automatic
oat switch that is activated whenever the batter-
ies are connected. This pump will run as needed
whenever the water in the bilge accumulates high
enough to raise the oat switch to the ON position
and turn off when the water is removed.
Notice:
The bilge pumps will start automatically
when there is sufcient water in the bilge to
activate the oat switch. Each oat switch
is protected by a fuse located in the system
compartment and is always supplied current
when the batteries are connected.
Baitwell Pump
Activates the pump that supplies seawater to the
baitwell.
Baitwell Recirc
Activates the baitwell pump that recirculates the
water in the baitwell.

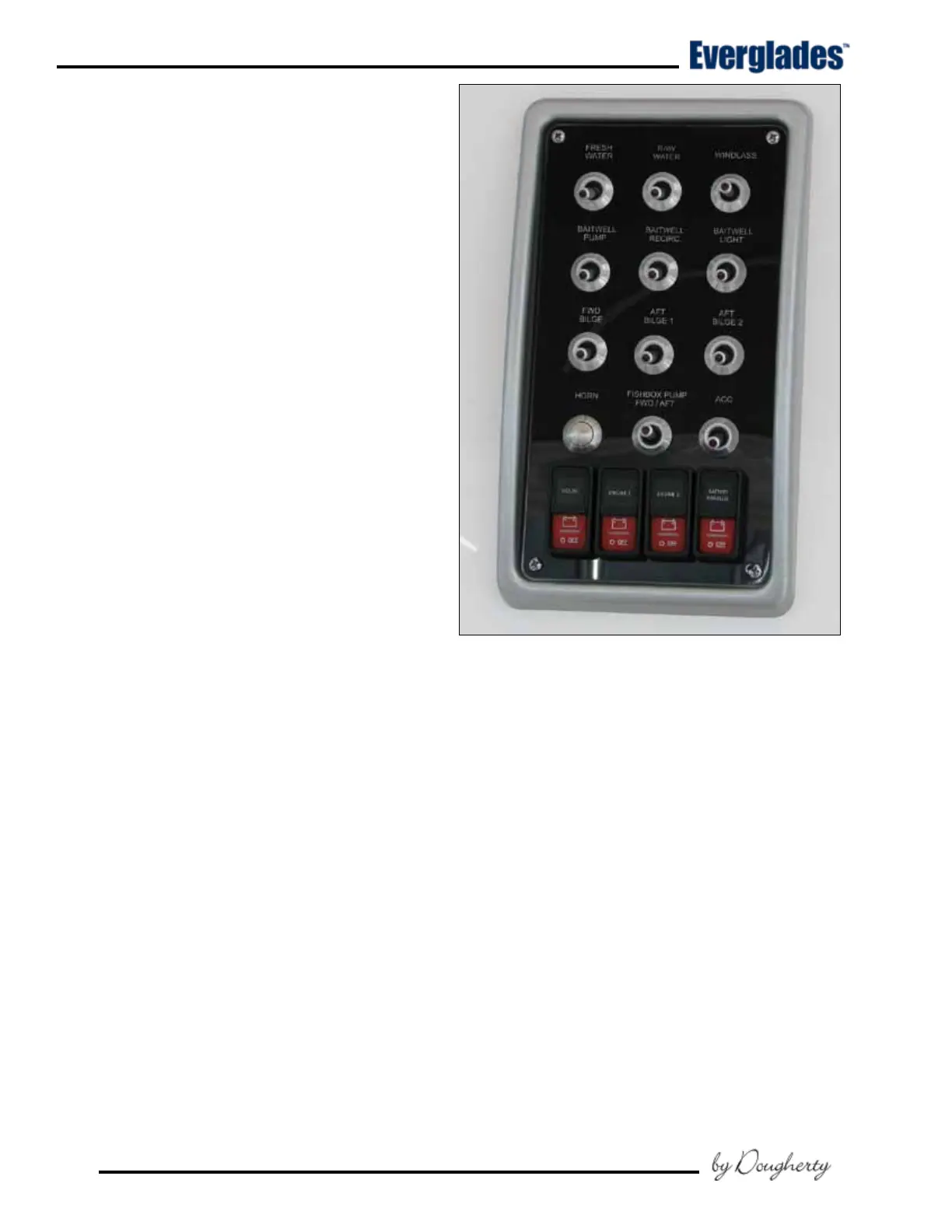

Helm Switch Panel
Bait Light
Activates the light in the baitwell.
Horn
Activates the boat horn located on the hardtop.
Fishbox FWD/AFT
Activates the pumps that drain the forward and aft
shboxes. The switch is a three-position switch.
The center position is OFF. Moving the switch
in one direction will activate the forward shbox
pump. Moving the switch in the opposite direction
activates the aft shbox pump.
To avoid damage to the pump, always monitor the
water level as the pump drains the shbox and
turn it off immediately when draining is complete.
ACC
Reserved for additional DC accessories installed
by you or your Everglades dealer.
