26 Installation Instructions

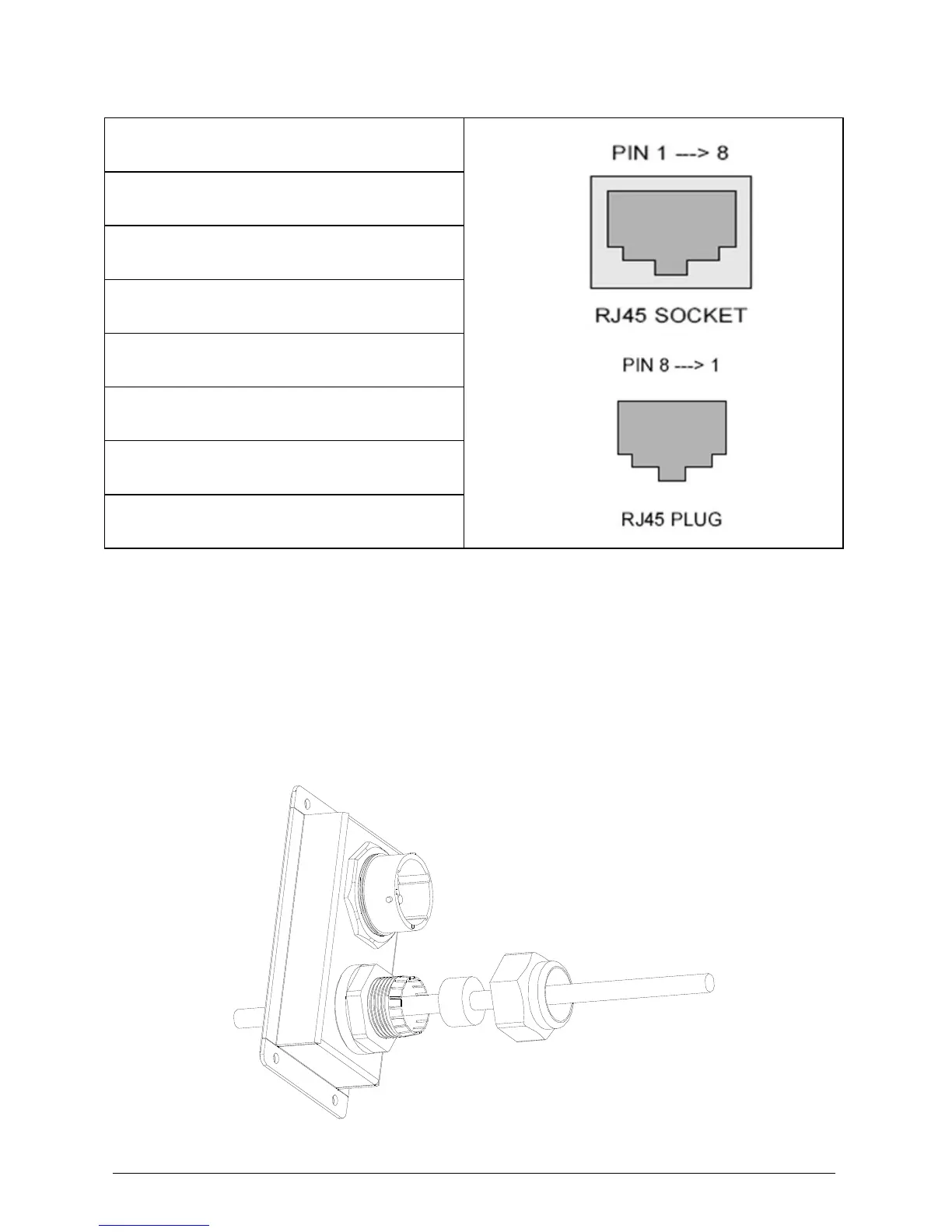

The definition of the pins of RS485 for Eversol-TL series:
Pin1------- TX_RS485A
Pin2-------TX_RS485B
Pin3-------RX_RS485A
Pin4-------GND
Pin5-------GND
Pin6-------RX_RS485B
Pin7-------+7V
Pin8-------+7V
Connection procedure:
1. Pull RS485 cable through three components below including gland body, sealing
insert plug and dome nut, and screw down. We provide you plugs with no hole,
one hole and two holes. If no communication, you should use the plug without
hole. According to different requirement, users can choose one-hole or two-hole
plug.
