Installation Instructions 27
2. A RS485 cable is composed by eight wires with different color. Cut off outside
envelope to reveal the eight wires. Then make the end of every wire straight, and
put them in order.

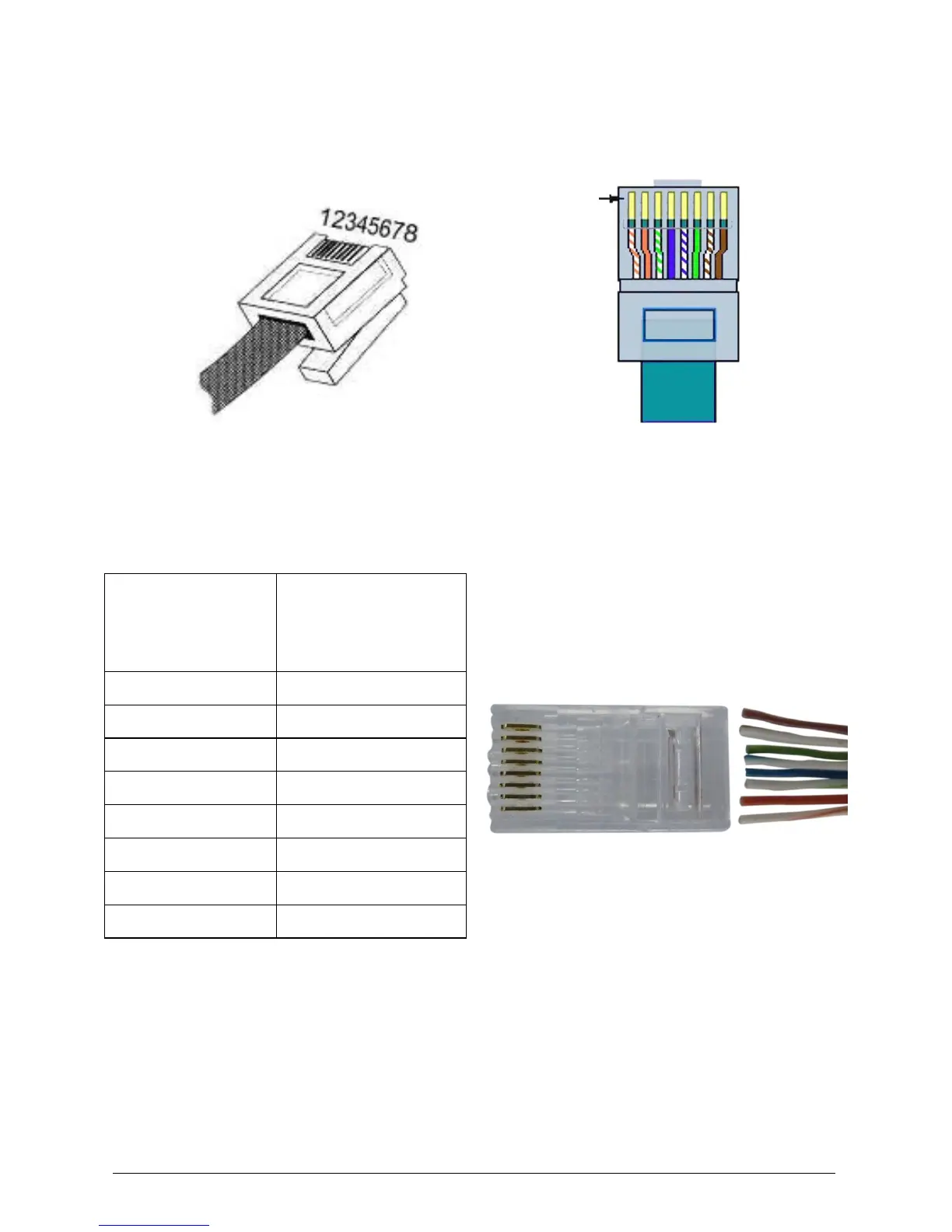

The connection between crystal connectors and RS485 wires is one-to-one
correspondence, one pin of crystal connector to one specific color wire, as shown in
the table below.
3. Insert the eight wires to corresponding slots of the crystal connector at the same
time, and then press them together by a professional tool.
The number of
the pins of crystal
connector
Color of the RS485
wires
1 Orange and white
2 Orange
3 Green and white
4 Blue
5 Blue and white
6 Green
7 Brown and white
8 Brown
