EVGA X299 Micro (131-SX-E295)
- 14 -

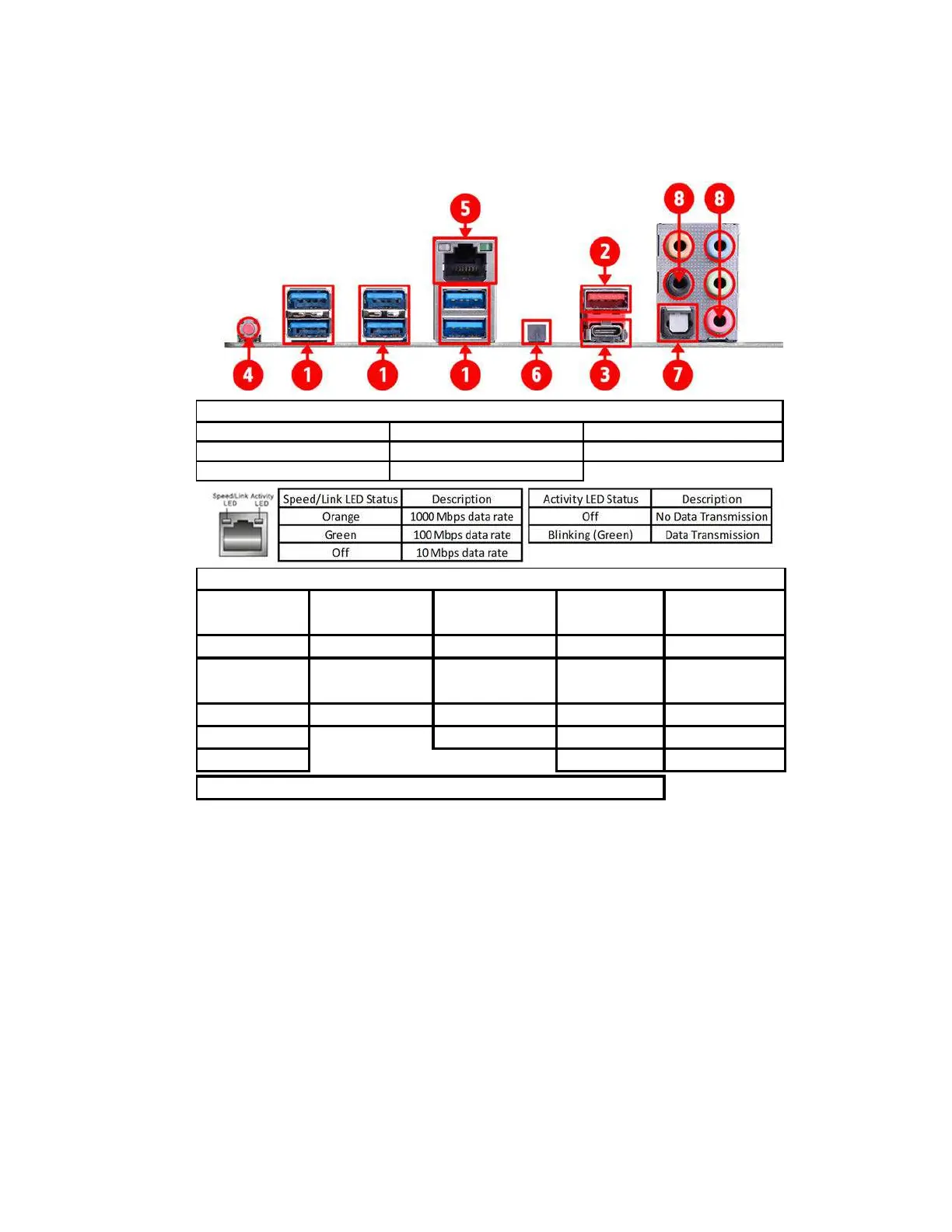

Figure 2. Chassis Rear Panel Connectors
1.
USB 3.0
4.
BIOS/CMOS Reset
7.
Optical Out
2.
USB 3.1 type A
5.
Intel I 219 NIC
8.
Analog Audio Jacks
3.
USB 3.1 type C
6.
M.2 Key-E Vertical Header
I/O Hub
Blue Line in Line In Line in * Rear Speaker Out
Pink Mic In Mic In Mic In Mic In
Black Side Speaker Out Side Speaker Out Side Speaker Out
Orange Center/Sub Out Center/Sub Out
3.5mm Audio Jack Legend
Analog Audio
Port Breakdown
* 7.1 output is enabled via Realtek Software from within Windows. (Page 96)
2
/2.1 Channel 4.0/4.1 Channel 5.1 (6 Channel) 7.1 (8 Channel)
Green
Front Speaker Out/
Front Speaker + Sub
Front Speaker Out/
Front Speaker + Sub
Front Speaker
Out
Front Speaker Out
