EVGA X299 Micro (131-SX-E295)
- 29 -

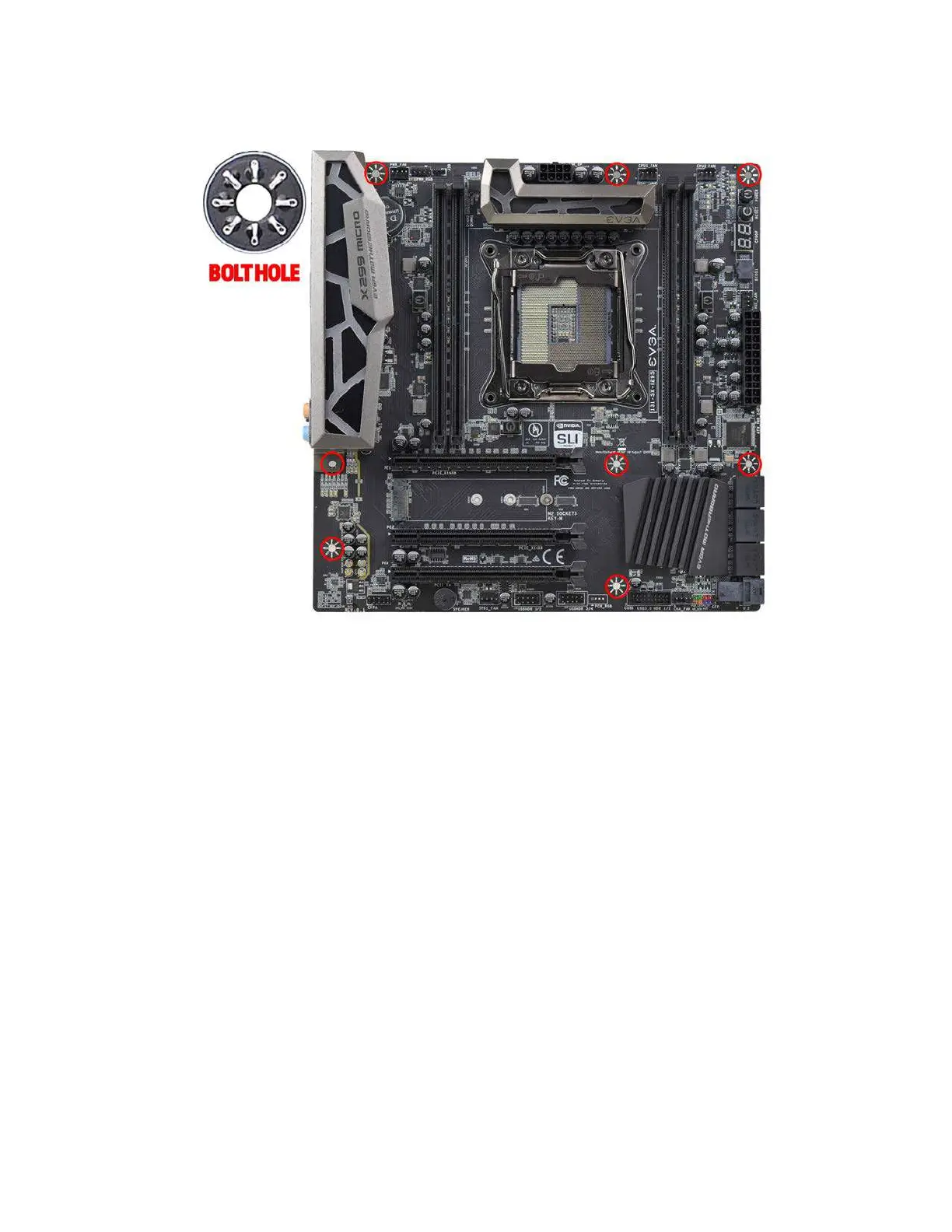

1. All s
afe locations to secure the board to a standoff are circled above in
red.
2. Keep in mind that when the screws are installed, but not fully
tightened, the motherboard should have 1-2mm of movement; this can
help with mounting cards or tight-fits with other components.
3. Once the board is properly aligned, be sure to fully-tighten the board to
the chassis before proceeding.
