EVGA X299 Micro (1
31-SX-E295)
- 41 -

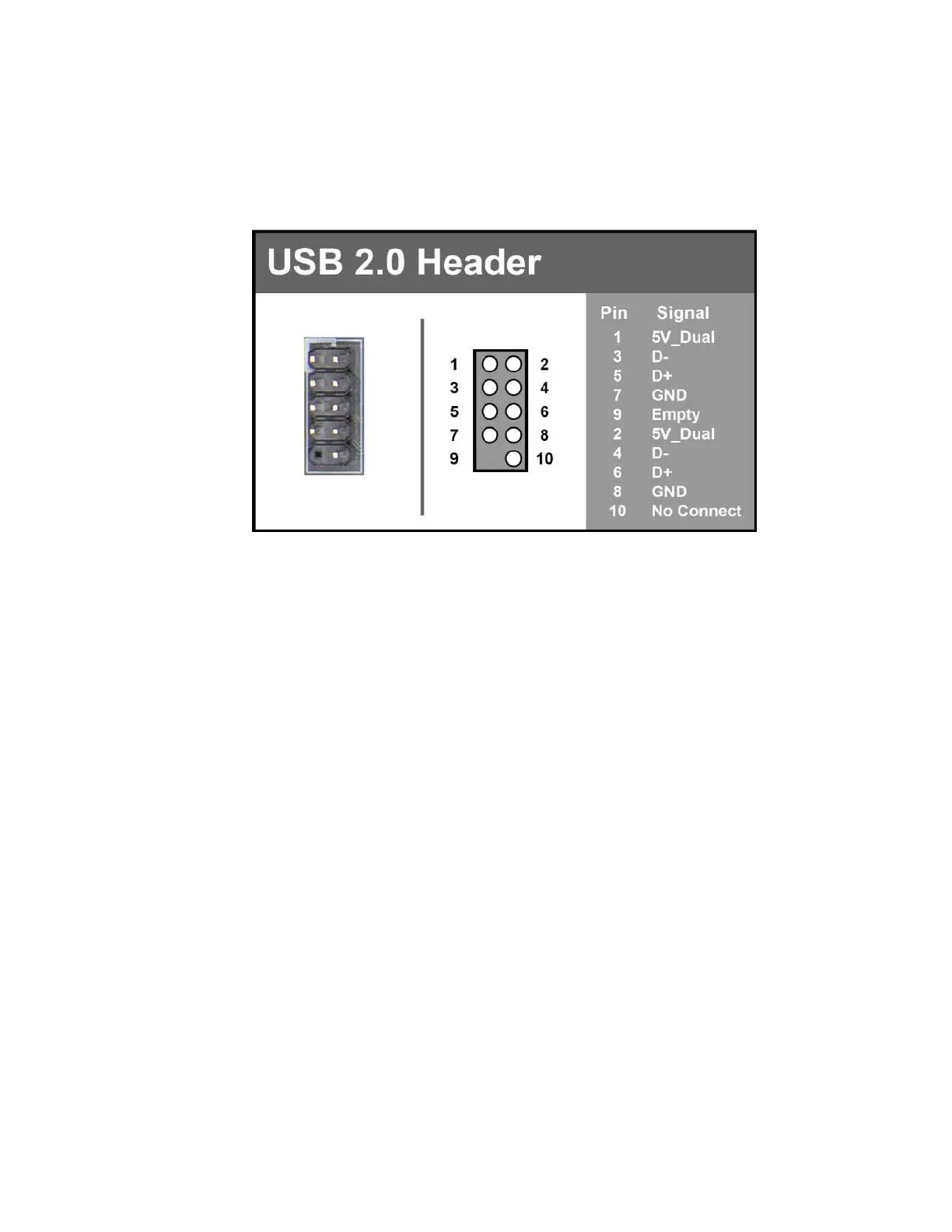

Th
e motherboard contains 2
x 9-
pin internal header conn
ector
s onboard that
can be used to connect an optional external b
r
acket containing up to
four (4)
USB 2.0 ports.
Secure the bracket to either the front or rear panel o
f your chassis (not
all c
hassis are equipped with the front panel option).
Connect the end(s) of the cables to
the USB 2.0 headers on the
motherboard.
40
42
Table of Contents
Table of Contents
2
Before You Begin
4
Parts NOT in the Kit
5
Intentions of the Kit
5
Motherboard Specifications
6
Unpacking and Parts Descriptions
8
Intel X299 MICRO Motherboard LED Reference
9
Intel X299 MICRO Motherboard Component Legend
12
PCI-E Slot Breakdown
23
M.2 and U.2 Slot Breakdown
23
Installing the CPU
24
Installing the CPU Cooling Device
25
Installing System Memory
26
Installing the I/O Shield and I/O Cover
27
Installing the Motherboard
27
Securing the Motherboard into a System Case
28
Installing M.2 Devices
30
Tested Cpus
33
Tested M.2 Key-M
34
Tested M.2 Key-E
34
Connecting Cables
35
Onboard Buttons
44
First Boot
45
SSD, PCI-E SSD, and Nvme SSD Installation Steps
47
Internal RAID Controller
49
Fan Header DC and PWM Setup
84
Setting up SLI and Physx
88
Realtek HD Audio Manager
92
Installing Drivers and Software
116
Windows 10 Driver Installation
116
Warranty and Overclocking
117
Troubleshooting
118
Replacing a BIOS Chip
118
SSD / HDD Is Not Detected
121
System Does Not POST, and POST Code Indicator Reads "C
123
System Does Not POST, and POST Code Indicator Reads "55
124
System Does Not POST, and POST Code Indicator Reads "D7
124
Have a Question Not Covered Above, or Want some Online Resources
125
POST Beep Codes
126
POST Port Debug LED
127
POST Codes
128
EVGA Glossary of Terms
133
Compliance Information
136
