EVGA X79 User Manual

EVGA X79 Motherboard
17
24pin ATX Power (PW1)
PW1 is the main power supply connector located along the right edge of the
board. Make sure that the power supply cable and pins are properly aligned with
the connector on the motherboard. Firmly plug the power supply cable into the
connector and make sure it is secure.
The 24pin Power Connector may be standard or right angled depending on
your motherboard model.
Connector Pin Signal Pin Signal
1 +3.3V 13 +3.3V
2 +3.3V 14 -12V
3 GND 15 GND
4 +5V 16 PS_ON
5 GND 17 GND
6 +5V 18 GND
7 GND 19 GND
8 PWROK 20 RSVD
9 +5V_AUX 21 +5V
10 +12V 22 +5V
11 +12V 23 +5V
12 +3.3V 24 GND

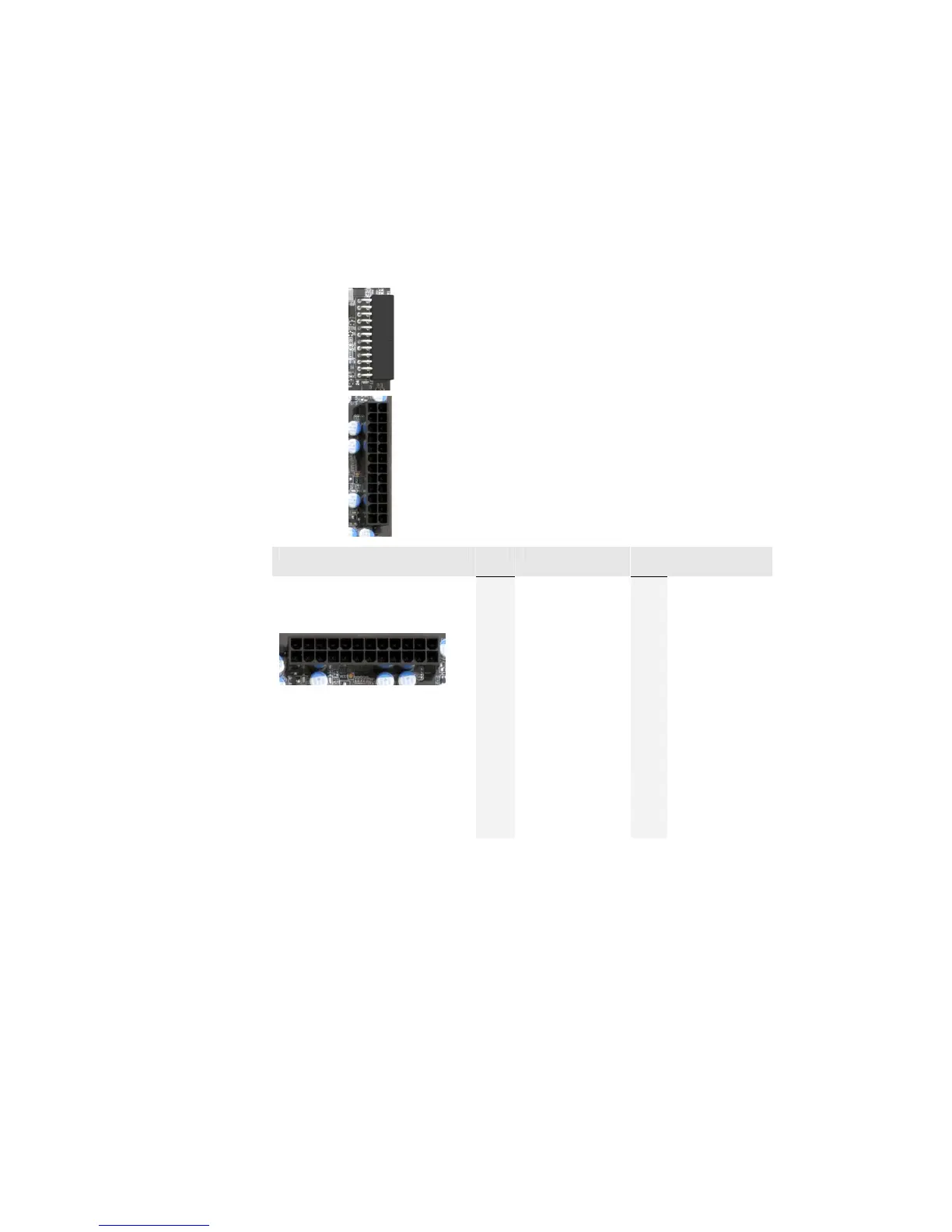

Right Angled 24pin Power Connector
Standard 24pin Power Connector
24
13
12
1
