EVGA X79 Motherboard
18

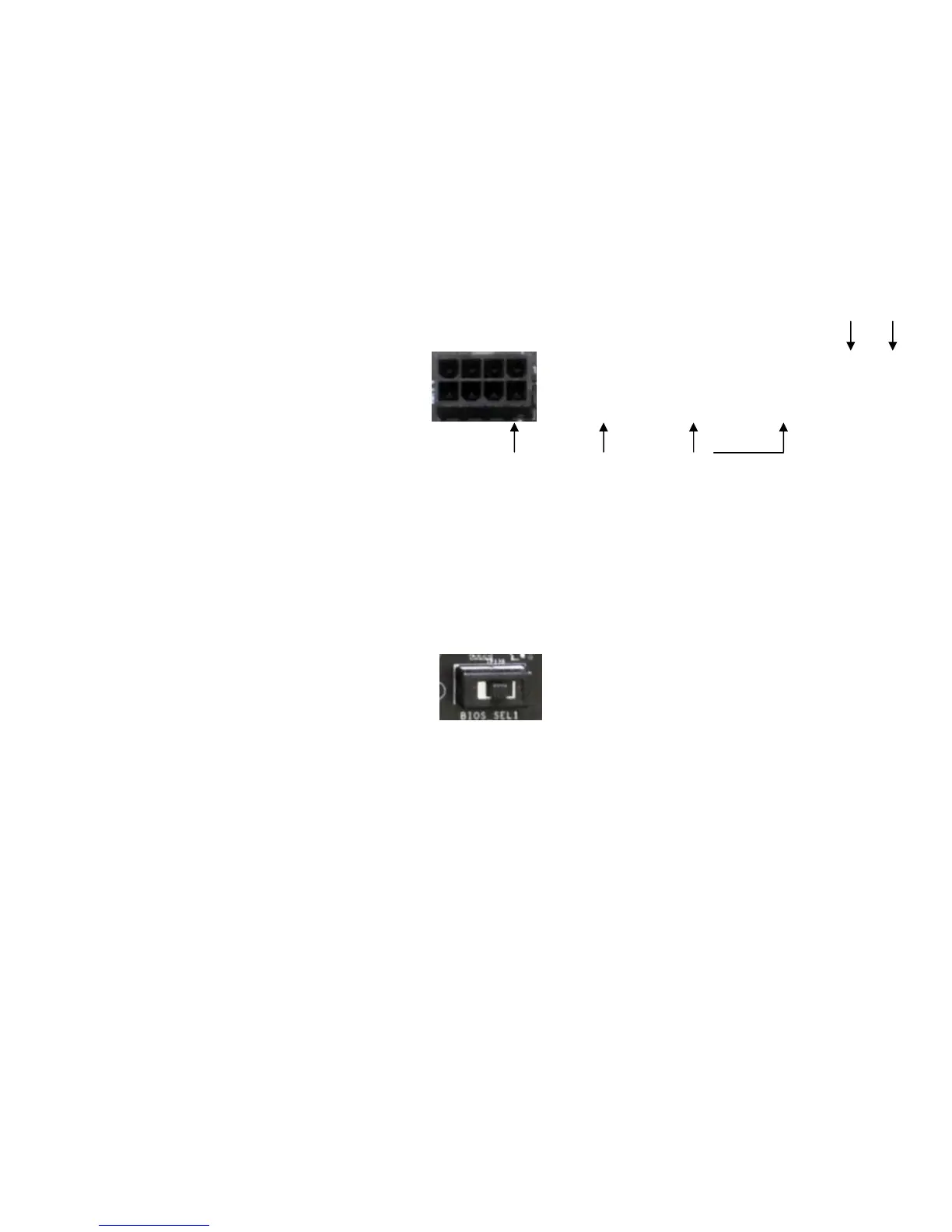

8-pin ATX 12V Power (
PW12-1 & PW12-2)
PW12-1 & PW12-2 (optional), the 8-pin ATX 12V power connections, are
used to provide power to the CPU. Align the pins to the connector and press
firmly until seated. If your motherboard has two 8-pin connectors, the
secondary is optional for improved overclocking.
BIOS Select Switch (Optional)
The BIOS Select Switch is featured on select motherboards and located directly
on the bottom edge of the motherboard. This jumper controls which of
physical BIOS chips are to be used when the system is powered on.
GND
+12V
