EVGA X79 Motherboard
22

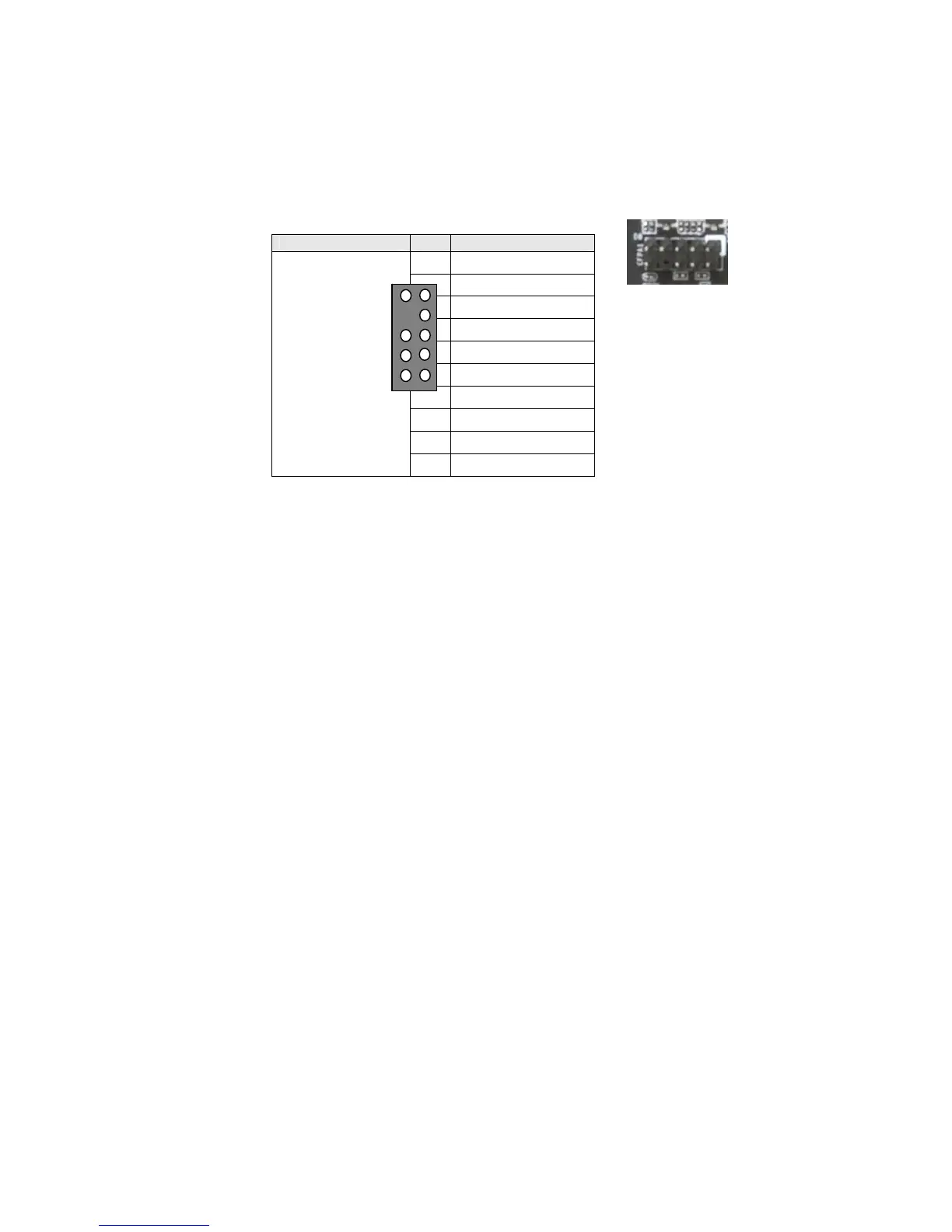

Audio
The audio connector supp
orts HD audio
standard and provides two kinds of
audio output choices: the Fron
t Audio and the Rear Audio.
Connector
Pin
Signal
Front Audio Connec
tor
1 PORT1_L
2 AUD_GND
3
PORT1_R
4
PRECENCE_J
5
PORT2_R
6
SENSE1_RETURN
7 SENSE_SEND
8 Empty
9 PORT2_L
10 SENSE2_RETURN
9
7
5
3
1
10
8
6
4
2
21
23
Table of Contents
Motherboard
1
Table of Contents
3
Before You Begin
5
Parts NOT in the Kit
6
Intentions of the Kit
6
Motherboard
7
Motherboard Specifications
7
Unpacking and Parts Descriptions
9
Unpacking
9
Equipment
9
Hardware Installation
11
Safety Instructions
11
Preparing the Motherboard
12
Installing the CPU
12
Installing the Cooling Device
13
Installing System Memory (Dimms)
14
Installing the Motherboard
15
Installing the I/O Shield
15
Securing the Motherboard into a System Case
16
Connecting Cables
16
24Pin ATX Power (PW1)
17
8Pin ATX 12V Power
18
BIOS Select Switch (Optional)
18
Connecting Internal Headers
19
Front Panel Header
19
Firewire 1394A (1394B Optional)
20
USB Headers
21
Audio
22
PCI-E X1 Slots
23
PCI-E X16/X8 Slots
23
Onboard Buttons
24
Clear CMOS Button
24
RESET and POWER Button
24
Post Port Debug LED and LED Status Indicators
25
Post Port Debug LED
25
LED Status Indicators
25
Installing Drivers and Software
26
Windows 7/Vista/Xp Driver Installation
26
POST Codes
27
EVGA Glossary of Terms
32
Compliance Information
35
