Start Mode
If any of the LEDs does NOT light during start-
ing, it may indicate an engine problem. Refer
to EMM Diagnostics Label.
LED 1, 2, or 3 OFF, seek assistance to return
to port. See your Dealer.
LED 3 flashing indicates a hazardous fuel
condition may exist. Seek assistance to return
to port. See your Dealer.
LED 4 OFF indicates the stop circuit is activat-
ed, make sure the engine cut–off switch teth-
er cord is attached.
LED 4 flashing indicates engine shut down:
• EMM temp. OVER range, refer to Engine
Overheating on page 43.
• Engine temp. OVER range, refer to Engine
Overheating on page 43.
• Excessive No Oil condition. Seek assis-
tance to return to port.
ENGINE MONITORING SYSTEM
Evinrude outboards equipped with remote
controls use the SystemCheck engine moni-
toring system.
Self-Test
During engine start-up, pause with the key
switch in the ON position. The engine moni-
toring system self-tests the warning horn by
sounding a half-second beep. The System-
Check gauge self-tests by turning the indica-
tor lights on simultaneously, then off in
sequence.
IMPORTANT: If the self-test does not happen
as stated, see your Dealer.
LOW OIL Warning
The LOW OIL warning activates the warning
horn for 10 seconds and the low oil gauge
light for a minimum of 30 seconds.
The SystemCheck warning will reoccur at the
next startup if the problem is not corrected.
If the “LOW OIL” warning light illuminates, re-
fill the oil tank immediately. You have a limited
amount of normal operation before running
out of oil. Fill the oil tank with recommend oil
as soon as possible. Refer to Oiling System
information on page 19.
“LOW OIL”
A WARNING
Do not run the engine in a low oil condi-
tion for a long period of time. If run in
excess of 4 hours, the engine will shut
down and will not restart. See dealer if
engine shuts down.

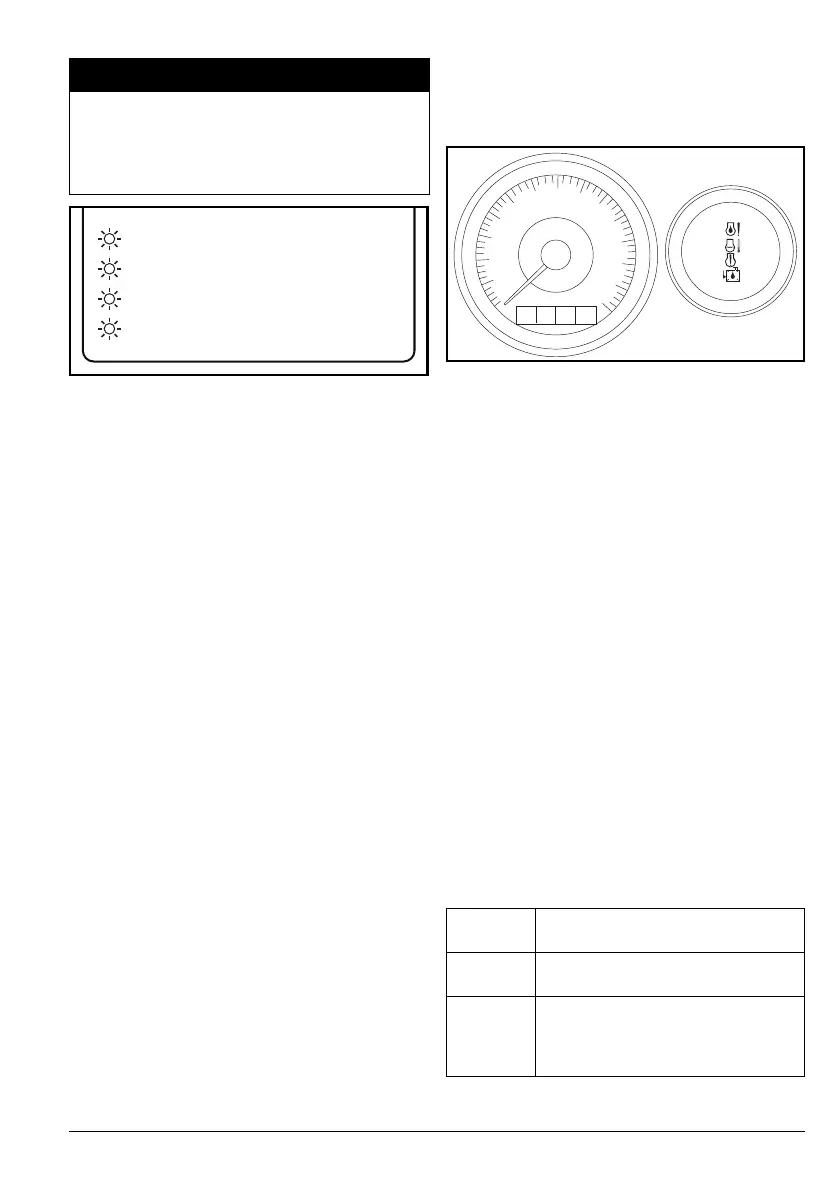

EMM Diagnostics Label 008539
EMM DIAGNOSTICS
3011761
STARTING MODE
RUNNING MODE
- CHARGING
OK
- CRANK POSITION
OK
- SENSORS
OK
- LANYARD / STOP
OK
- CHARGING
FAULT
- INJECTOR / IGNITION
FAULT
- SENSOR
FAULT
- NO OIL / OVERHEAT
Typical SystemCheck gauges 008491
Symptom
Low oil light is ON. Oil in the oil
tank is at reserve level or lower.
Result
EMM will activate S.A.F.E.
mode soon.
Action
Refill oil tank with the
recommended oil. If the oil tank
is full, return to safe harbor and
seek assistance.
1
NO OIL
WATER TEMP
CHECK ENGINE
LOW OIL
0
2
1
3
4
5
6
7
NO
OIL
HOT
CHK
ENG
LOW
OIL
