Evo Affinity 30G - Cabinet Integration and Bracket Mounting; Cabinet System Construction and Bracket Mounting

INSTALLATION INSTRUCTIONS
Affinity 30G
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
14
1
9
16
"
40mm
1
3
16
"
30mm
27
3
4
"
704.85mm
7.65in
194.36mm
Shelving or
drawers can
be installed
under Affi nity
30G if
desired.

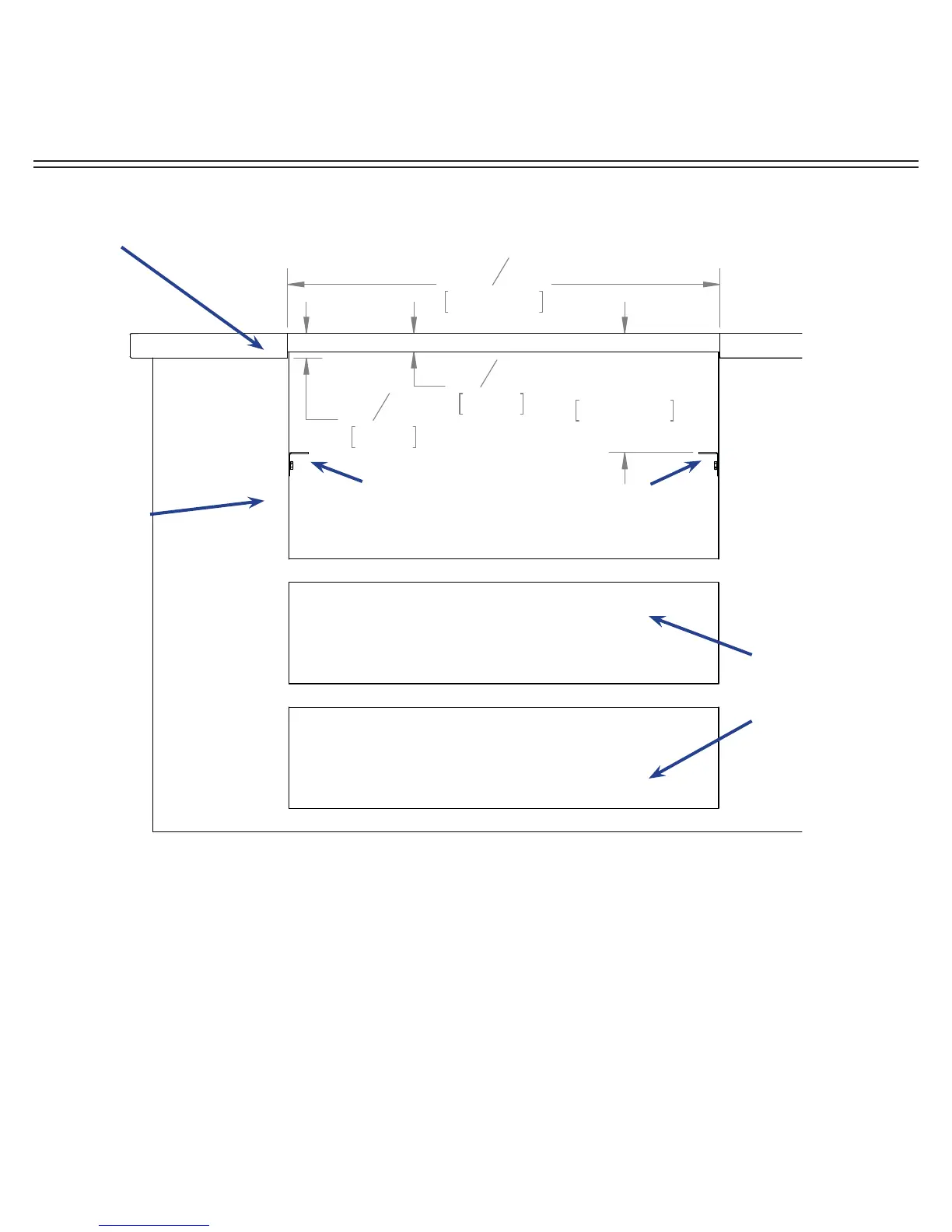

FRONT VIEW
STEP 3: Construct a bay for the Evo unit with your chosen cabinet system. Position and
fasten the supplied mounting brackets 7.65” below the fi nished countertop surface.
Metal right angle mounting brackets supplied with unit are
each 1/16” thick. Mount angle brackets as shown. Unit slides
into framework and rests on top side of brackets. Brackets
are slotted for fasteners at each four corners.
Cabinet
Framework
Example: Tiled countertop with substrate.
Finished countertop thickness should be
3 cm (1-1/5”).
COUNTERTOP INSTALLATION (4 of 4)
