Evo Affinity 30G - Installation Completion Check; Final Verification of Installation Steps

INSTALLATION INSTRUCTIONS
Affinity 30G
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
25

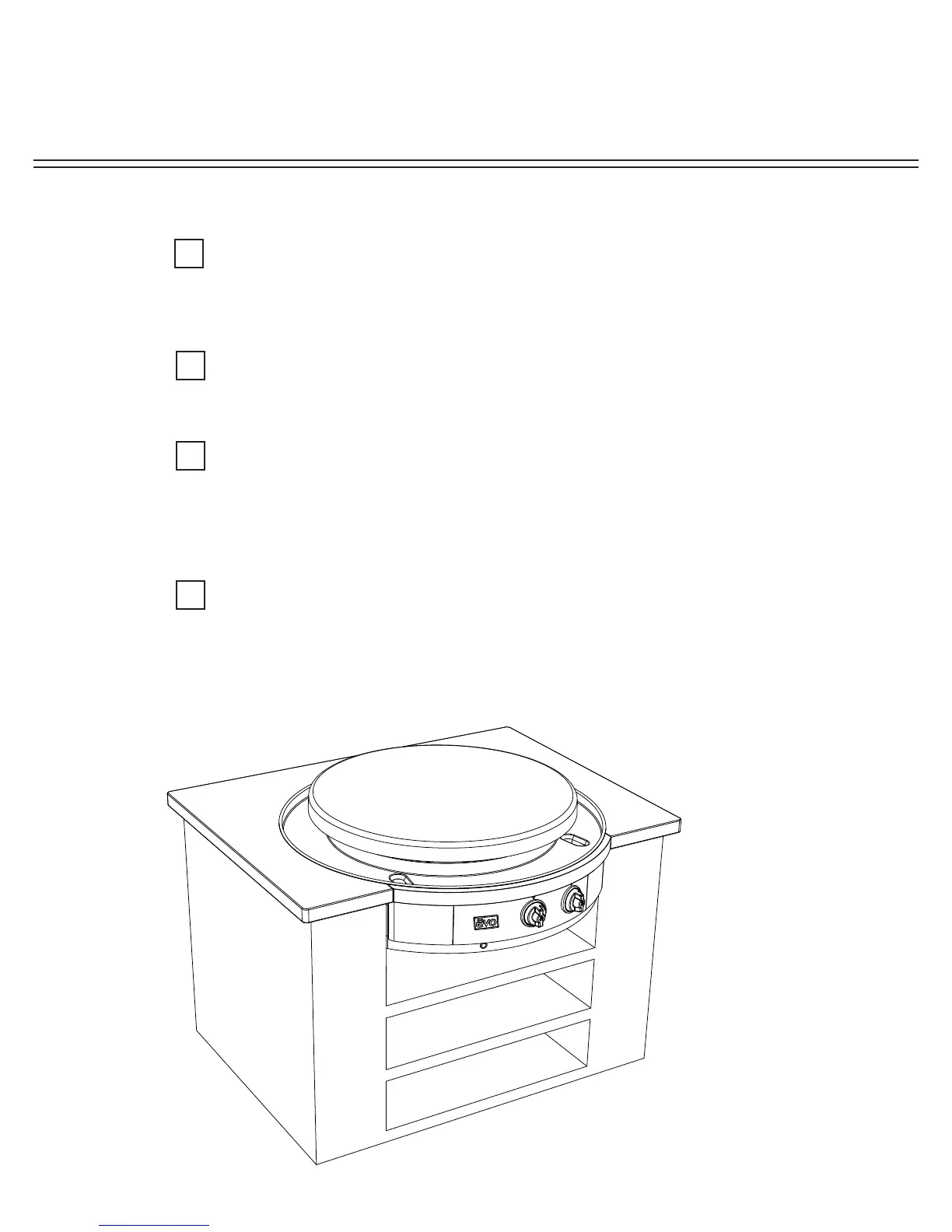

CHECK INSTALLATION
DRIP PAN PROPERLY INSTALLED 16-17
Ensure that the drip pan half-rolled top bead overhangs
the cutout dimension by .25” and the black o-ring
is creating a seal against the countertop.
DRIP PAN GASKET SECURED 17
Black drip pan gasket should fi t properly and create a
seal where the drip pan meets the chassis skirt.
COOK SURFACE INSTALLED PROPERLY 18-20
Cook surface support rails should be sitting on
chassis top with rear bullet secure in rear slot and
two front fasteners tightened so cook surface does
not move.
GAS CONNECTION HOOKED UP PROPERLY 21-24
Check for gas leaks.
Check for proper operation.
PAGE #Check to ensure the following items are complete:
INSTALLATION IS COMPLETE
