INSTALLATION INSTRUCTIONS
Affinity 30G
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
5
This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas
leakage and products of combustion are rapidly dispersed by wind and natural convection.
Any enclosure in which the appliance is used shall comply with one of the following:
• An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover. See Figure1.
• Within a partial enclosure that includes and overhead cover and no more than two walls. See Figure 2 & 3.
• Within a partial enclosure that includes an overhead cover and more than two, the following shall apply:
-At least 25% of the total wall area is completely open; and
-At least 30% of the remaining wall area is open and unrestricted. See Figure 4 & 5.
• In the case of balconies, at least 20% of the total side, back and front areas shall be and remain open and unrestricted.
The following diagrams provide a diagrammatic representation of outdoor areas. Rectangular areas have been used in these
fi gures - the same principles apply to any other shaped area
.
This appliance is not intended to be installed in or on boats,
and is not intended to be installed in or on recreational vehicles.
FOR OUTDOOR USE ONLY

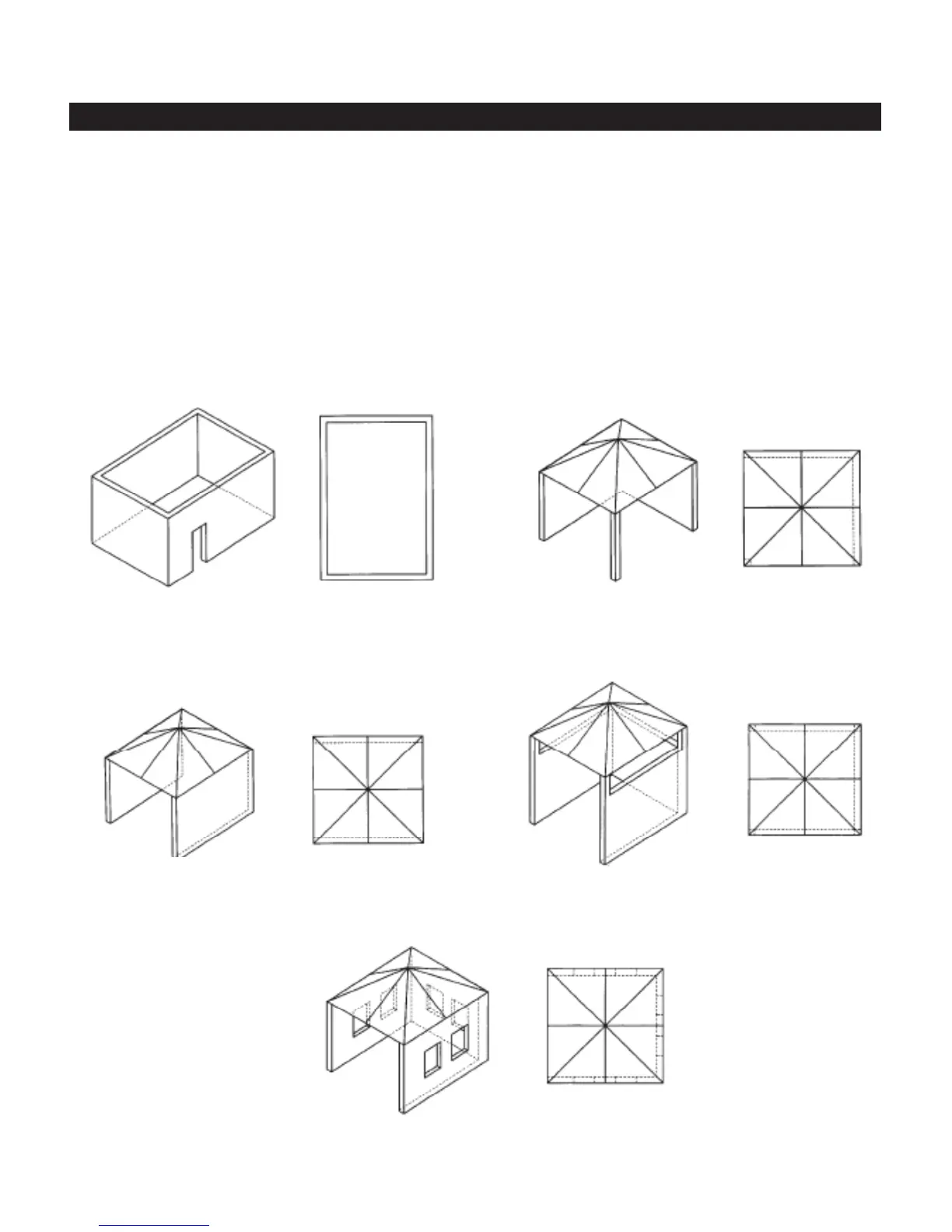

Figure 2 - Partial Enclosure with overhead cover and
no more than two walls.
Figure 1 - Enclosure with walls on all sides but
no overhead cover.
Figure 3 - Partial Enclosure with overhead cover and
no more than two walls.
Figure 4 - Open side at least 25% of total wall area.
30% or more intotal of the remaining wall area is
open and unrestricted
