INSTALLATION INSTRUCTIONS
Affinity 30G
Evo, Inc. | 8140 SW Nimbus Ave., Bldg 5 | Beaverton, Oregon 97008 USA
Phone 503.626.1802 | Fax 503.213.5869 | www.evoamerica.com | support@evoamerica.com
9

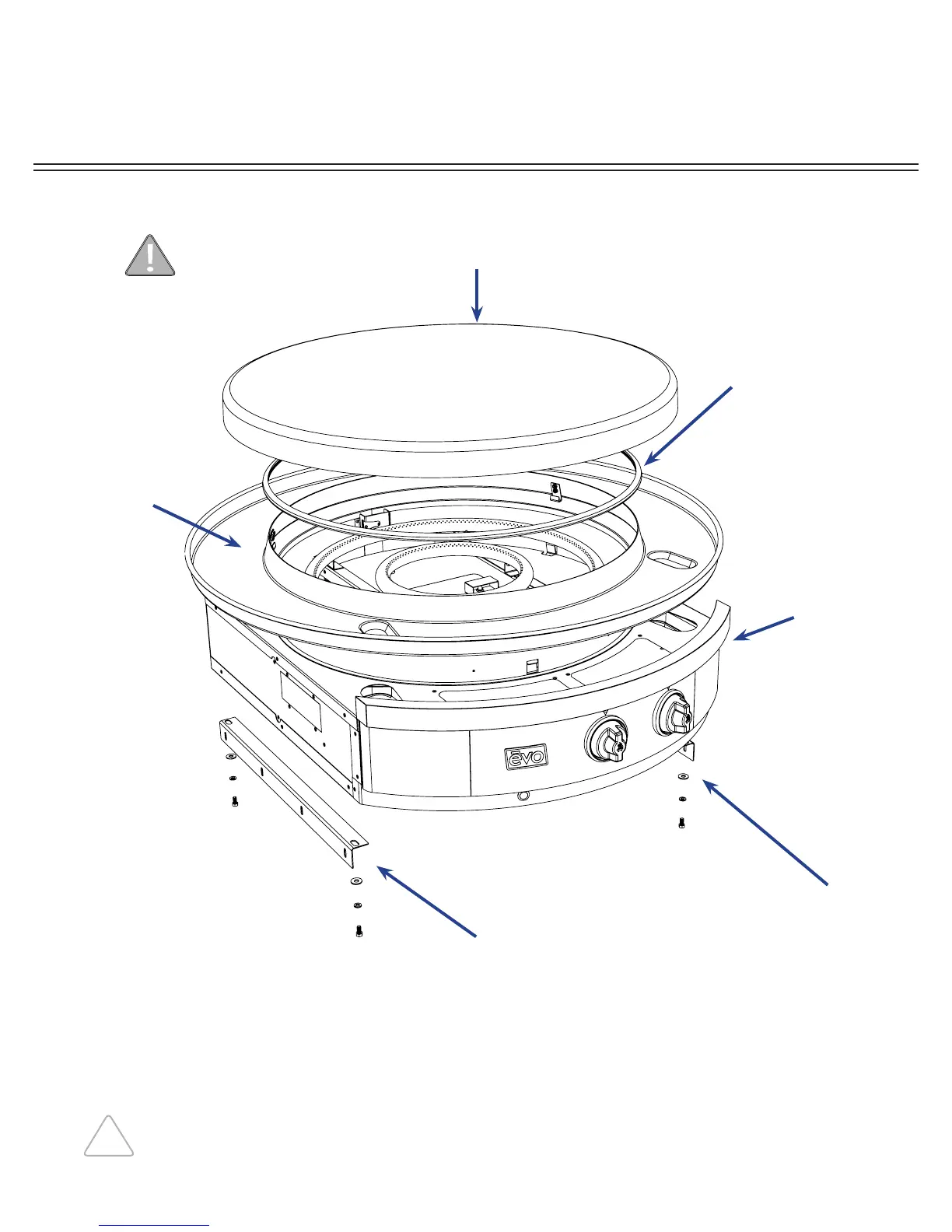

Cook Surface: Lift and separate cook curface from unit and place next to installation area.
Drip Pan Gasket:
Gasket is secured
to top of drip tray.
Remove gasket
from drip tray
and set aside
for reinstallation.
Drip Pan
Unlatch pan
from circular
skirt, then
carefully lift and
separate drip
pan from unit
and place next
to installation
area. Take care
not to scratch
drip pan during
installation.
Chassis:
Lift chassis
from crating box
and place on
its side next to
installation area.
Use caution since
igntion components
are exposed.
Metal Right Angle Brackets: Unscrew from unit
and keep screws and brackets handy for fi rst
installation step.
UNPACKING COOKTOP COMPONENTS
STEP 1: As you are unpacking the crate, make sure you locate all components before
installation.
Ignition components are exposed during uncrating and installation.
Use caution and do not alter factory set positions.
Use caution when lifting. The cook surface is heavy.
To Next Page
