Evolution RAGE7-S User Manual

15
www.evolutionpowertools.com
EN
DE
8. PARALLEL EDGE GUIDE
The supplied Parallel Edge Guide can be tted to either side of
the machine. It can be a useful aid when cutting straight lines
that are parallel to an existing edge.
To t the Parallel Edge Guide:
• Loosenthecross-headscrewfoundintheParallelEdgeGuide
clamp and slide the clamp from the arm of the guide.
• Locatetheclampintherequiredservicepositiononeither
the right or left hand side of the machines footplate just
ahead of the blade. (Fig. 11).
• SlidethearmoftheParallelEdgeGuidethroughtheclamp
and through the two (2) rectangular slots in the footplate.
• SettheEdgeGuideattherequireddistanceandthentighten
the cross-head screw to lock the Edge Guide securely in place.
Note: The Front Chip Guard can be tted to this machine when
the Parallel Edge Guide is tted.
9. AIR BLOWER
This Jigsaw is equipped with an Air Blower. This can be used
to blow away dust created by the blade from the cutting area
thereby keeping the cutting line(s) clear and visible.
Note: We recommend that the Air Blower is used in conjunction
with a suitable workshop dust extraction machine connected to
the Dust Extraction Adaptor of the jigsaw.
We recommend that the Air Blower is not used when cutting
metal or when cutting materials that require a lubricant.
Mechanical vacuum dust extraction using the Adaptor tube will
always work better with the Air Blower turned ‘OFF’.
To switch the Air Blower ‘ON’:
• Pushthe‘AirBlower’controlslidefullytotheright(asseen
from the operators viewpoint) (Fig 12)
To switch the Air Blower ‘OFF’:
• Pushthe‘AirBlower’controlslidefullytotheleft.
10. DUST EXTRACTION
This jigsaw is tted with a Dust Extraction Adaptor tube.
(Fig. 13)
Whenever possible it is good practice to connect the Adaptor
tube to a workshop dust extraction machine. The Air Blower
should be in the ‘OFF’ position.

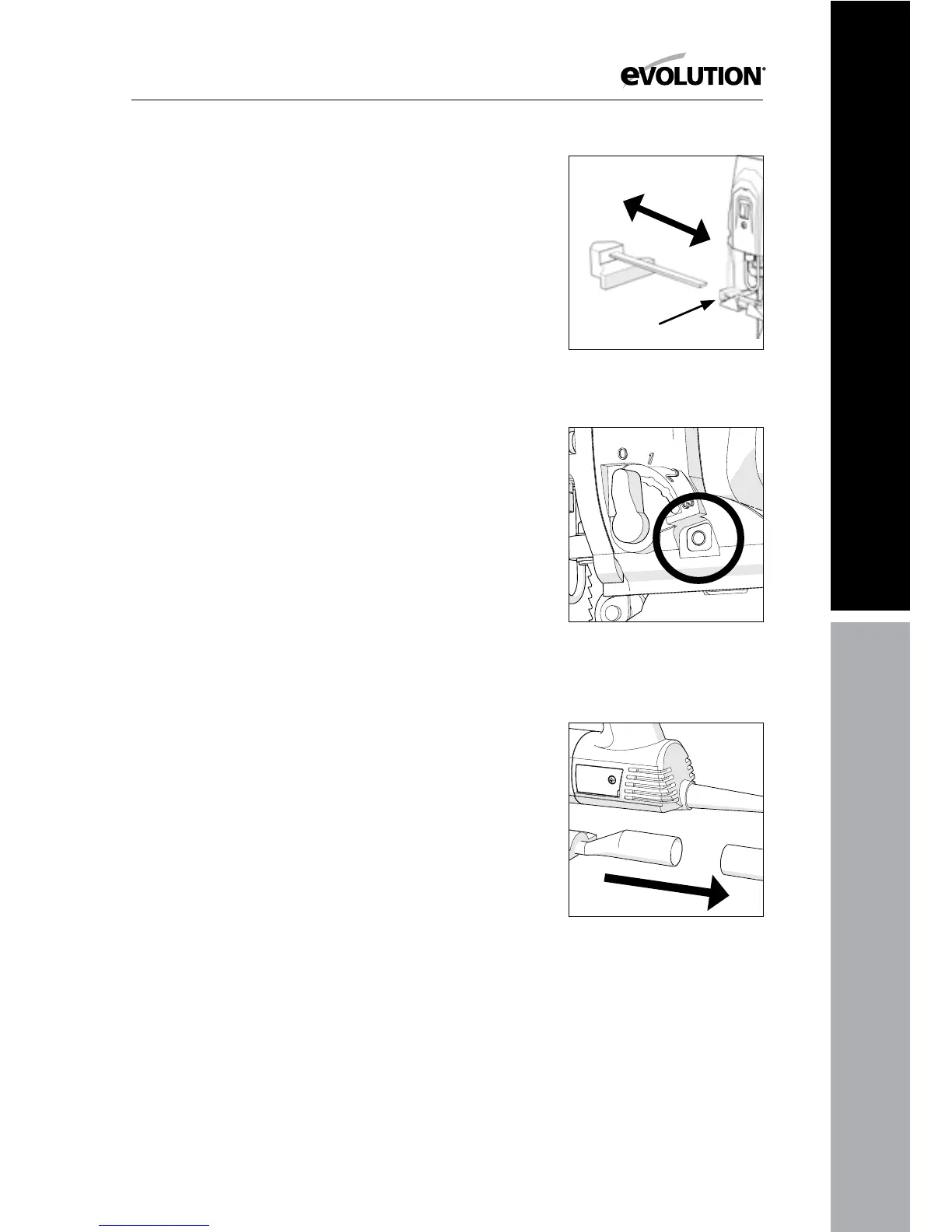

Fig 12
Close up view of Air
Blower Slide control lever.
Fig 11
Parallel Edge Guide.
Clamp
Fig 13
Close up view of adaptor
tube with vacuum hose
about to be connected.
