2. PRE-INSTALLATION: PREPARATION & REQUIREMENTS
2.1. Tools Required
· Dolly or forklift to move the module into place
· Cords, cables or straps to secure module to dolly or forklift
· Slip joint pliers, for tightening of plumbing connectors
· Wire cutters/strippers, for wiring connections inside junction box
· Screwdrivers (flat blade and Phillips head) to connect wires at terminal strip
· Adjustable torque wrench with 10-50 ft-lb (14-68 N-m) range, 3/8” (10 mm) drive
· 19 mm extra deep socket (Ionpure part number W2T210908)
· 19 mm open end wrench
2.2. Unpacking and Moving LX Modules
· After uncrating the module, inspect it for any signs of damage. If damage is apparent,
immediately notify the carrier and your CEDI System Provider.
· The LX modules can weigh 70-330 lbs. (32-150 kg) dry, depending on size, and may
require mechanical assistance for lifting and moving into position. Both LX endplates
have two ¾-10 tapped holes for installation of lifting eyebolts, if desired.
· Ensure that lifting apparatus has appropriate load rating.

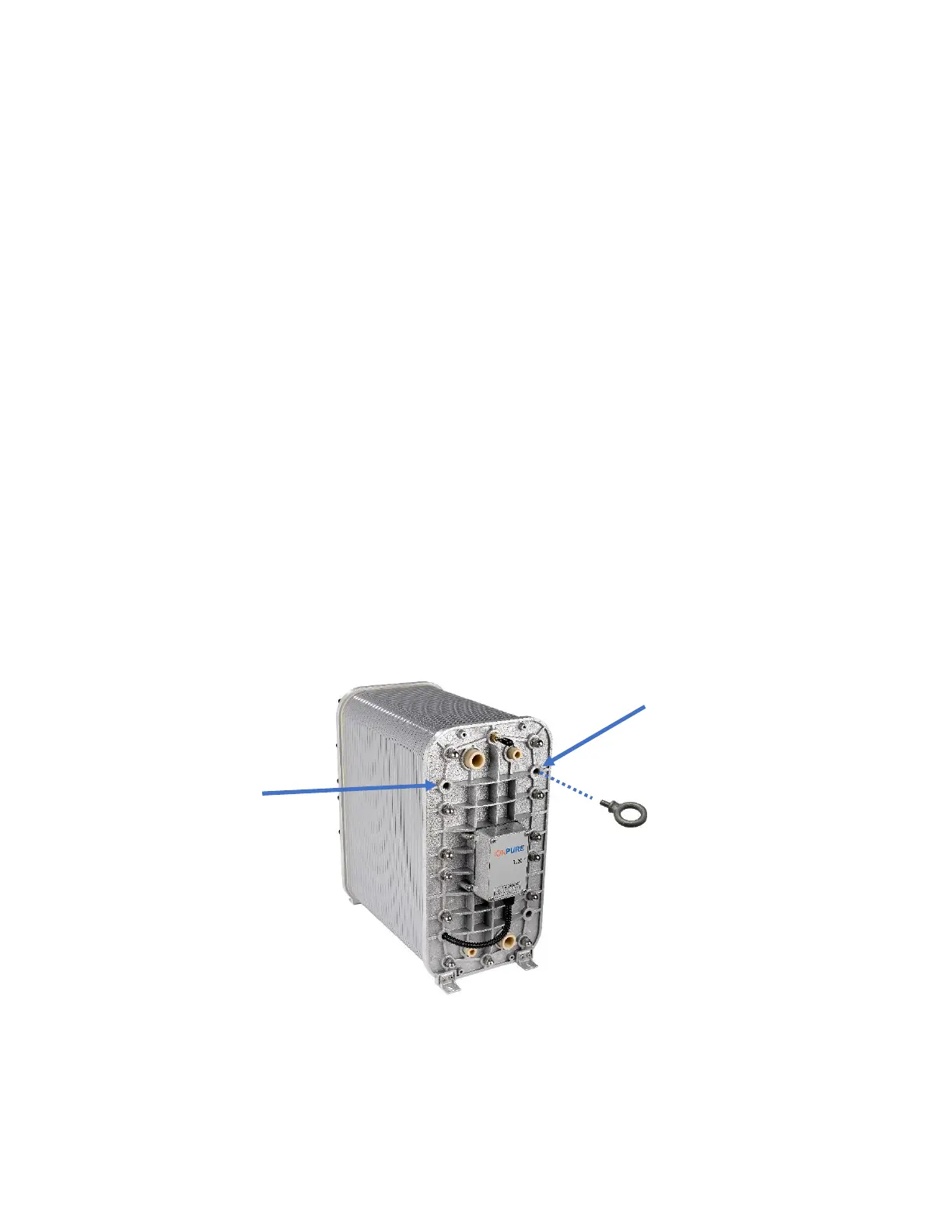

Figure 1-2: LX Module Lifting Points (Cathode/Plumbing Side Shown)
¾”-10
tapped hole
¾”-10
tapped hole
Eyebolt or handle
(not provided)
