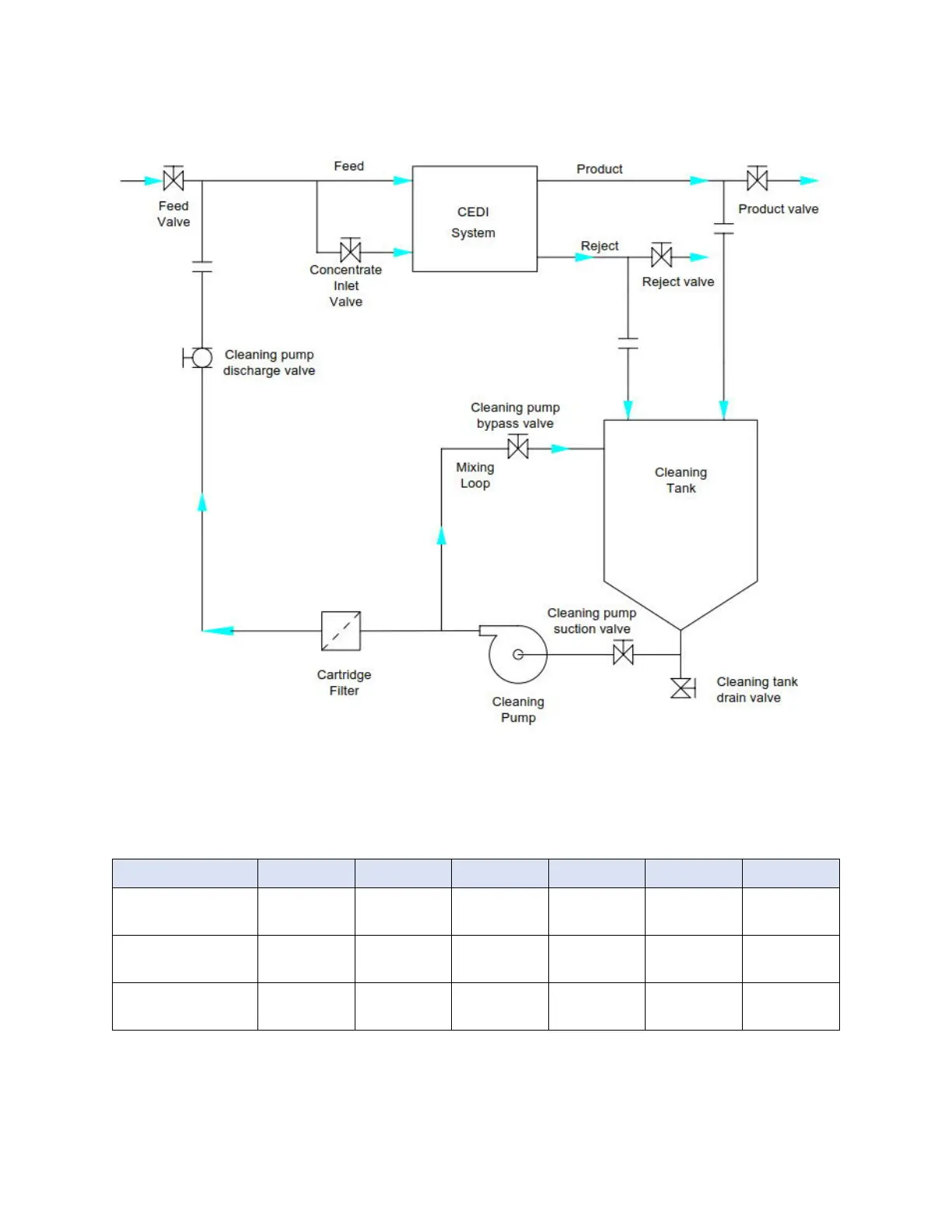

Figure 6-1: Typical CEDI CIP System
Table 6-1 LX CEDI Cleaning Flow Rates (per module)
4-cell 10-cell 18-cell 24-cell 30-cell 45-cell
Product gpm
m
3
/h
1.0-3.0
0.23-0.68
2.5-7.5
0.6-1.7
4.5-13.5
1.0-3.1
6.3-18.8
1.4-4.3
7.5-22.5
1.7-5.1
11.3-33.8
2.6-7.7
Reject gpm
m
3
/h
0.5-1.5
0.11-0.34
1.3-3.8
0.3-0.9
2.3-6.8
0.5-1.5
3.2-9.4
0.7-2.1
3.8-11.3
0.9-2.6
5.7-16.9
1.3-3.8
Pump gpm
Capacity m
3
/h
3
0.7
7.5
1.7
13.5
3.1
18.8
4.3
22.5
5.1
33.8
7.7
The preferred cleaning flow rates are nominal product flow (midpoint of the ranges above)
and reject flow of 0.5 x nominal product flow.
