EVS XT-3 - XT3 4 U with 4-Channel Configuration

XT3 Series DISK RECORDER - Version 10.05 - Hardware Technical Reference Manual
Issue
10.05.D
EVS Broadcast Equipment SA – July 2011
35

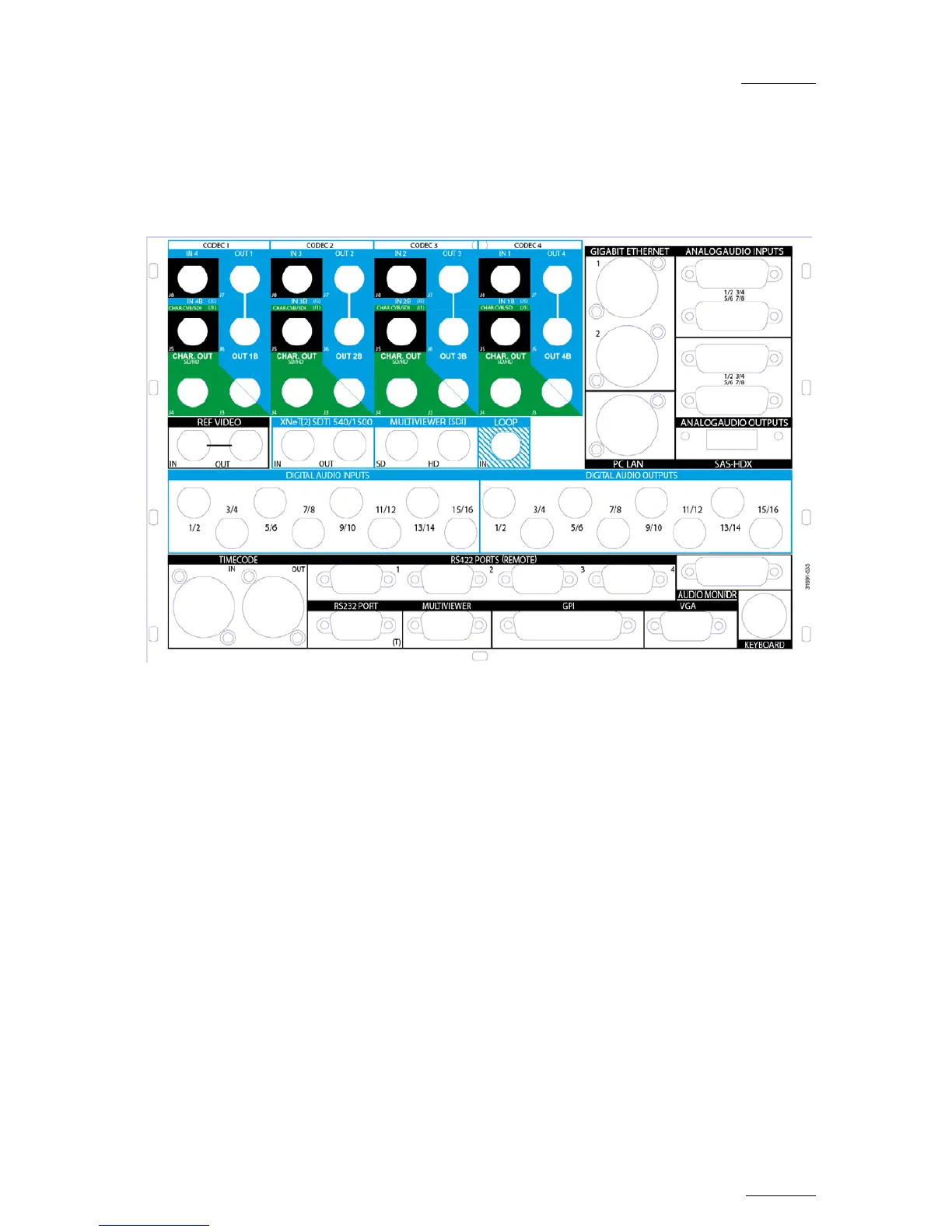

XT3 4U WITH 4-CHANNEL CONFIGURATION
The 4-channel configuration is presented with the optional AES on BNC
connectors.
The 2-channel configuration is a variant of the 4-channel configuration where the
codec modules 3 and 4 have been removed.
