EWM KLE - Load Simulation Unit (LS 600 A); Front View

Machine description
– quick overview
Load simulation unit (LS 600 A)
20
099-008060-EW501
19.02.2013
5.6 Load simulation unit (LS 600 A)
5.7 Front view

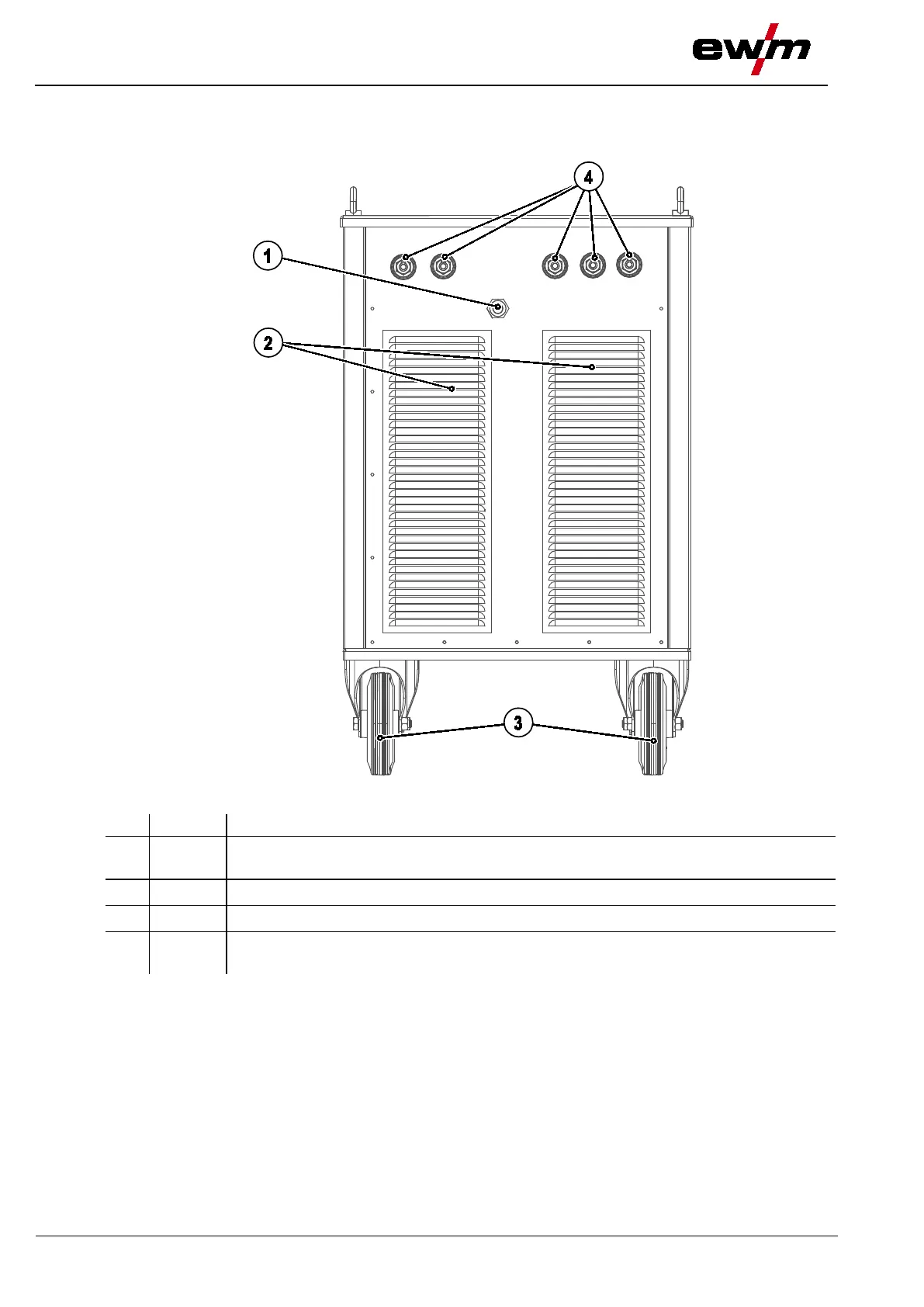

Figure 5-5
Item
Symbol
Description 0
1
Excess temperature signal light
Error display for excess temperature
2
Air outlet
3
Wheels, guide castors
4
Load current connection sockets (characteristics selection)
Establish power bridge according to the intended purpose
