EWM KLE - Rear View

Machine description – qui
ck overview
Rear view
099-008060-EW501
19.02.2013
21

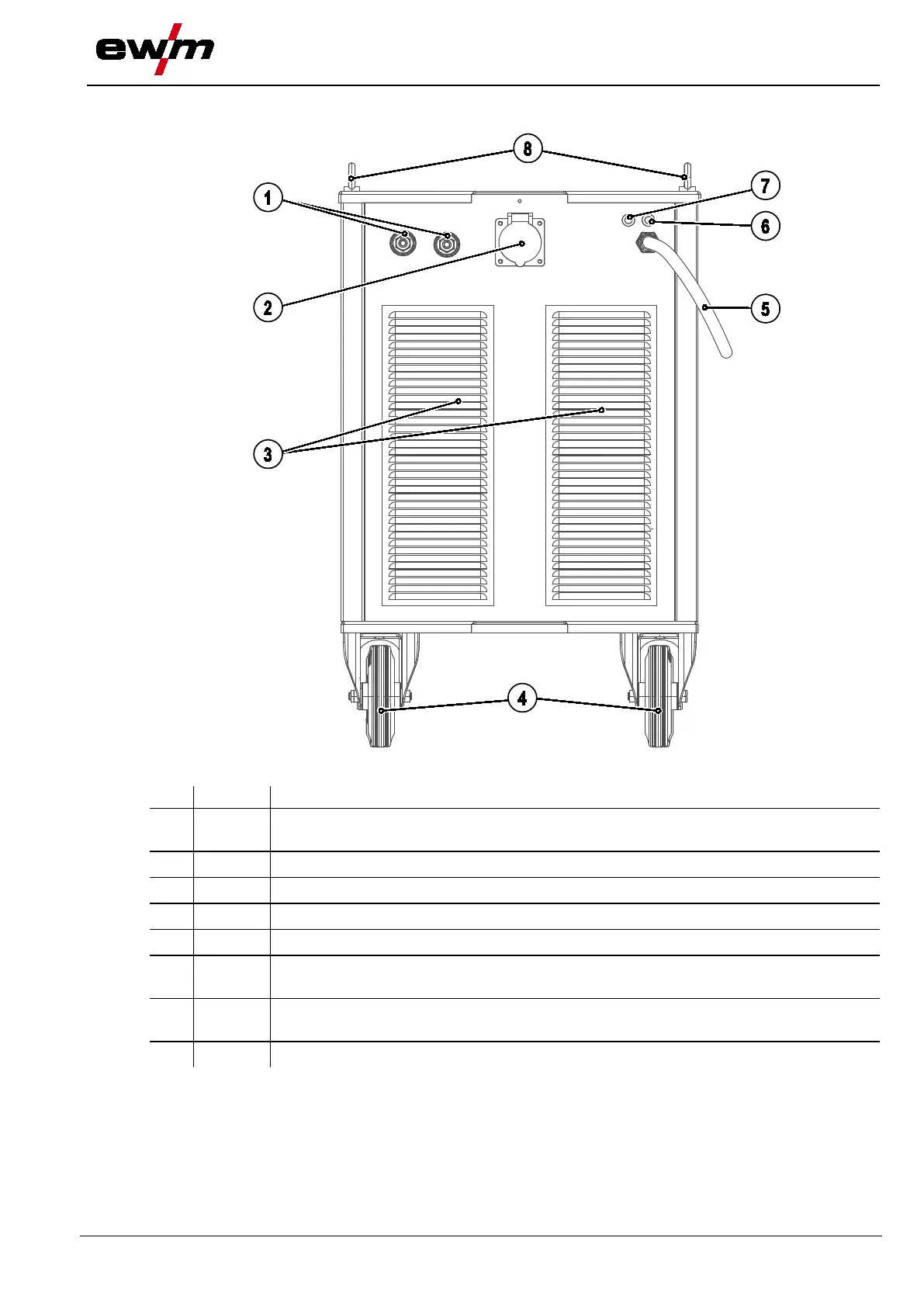

5.8 Rear view
Figure 5-6
Item
Symbol
Description 0
1
Load current sockets (polarity-independent)
Connection to calibration device
2
Calibration device mains connection socket - 32 A CEE
3
Air inlet
4
Wheels, fixed castors
5
Mains connection lead with 32A CEE plug
6 F7
Mains fuse (630 mAT)
Protection of machine’s electronics
7 F6
Machine fuse (4 AT)
Protection of the machine’s fan
8
Lifting lug
