EWM PICO 230 CEL - 10.1.4 Right-Hand Side

Spare parts list
PICO 230; 230 CEL
Item No.: 099-002032-EWM01 41
10.1.4 Right-hand side
1
4
5
3
2
11
7
9
6
8
10

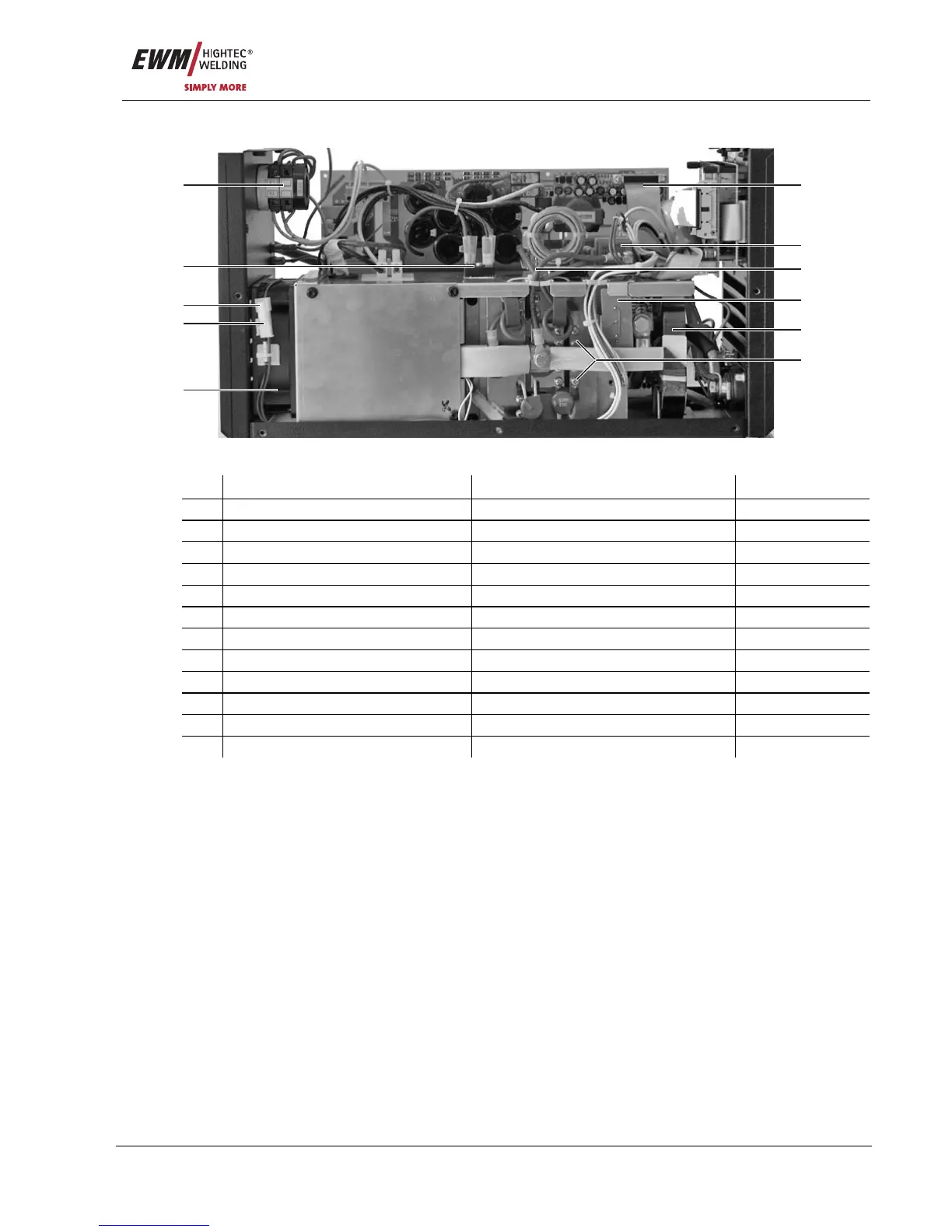

Figure 10-4
Item Designation Type Item number
1 Mains switch MAINS SWITCH 25A/3PHASE 074-000279-00003
2 Flat band cable PKS-LC/26POLIG/340MM 094-007715-00000
3 Fan / 120x120x38mm NMB4715KL-05W-B40-P00 094-007861-00000
4 MINI-FIT pin housing 5559-02P 044-002252-00000
5 MINI-FIT contact pin 5558-TL/AWG 16 044-002251-00000
6 Bridge rectifier 074-002908-00000
7 IND choke PICO 230 SECONDARY AIR CHOKE 032-000201-00000
8 PCB current transformer SW1 042-000787-00000
9 DIO MODULE BYT200PIV-400/ISOTOP 044-002601-00000
10 Cable harness KB " PICO 230 CEL ADD-ON" 094-008937-00000
11 PCB SEC. connections CELL 1 (PICO 230 CELL) 042-000786-00000
12 PCB SEC. connections KON 2 (PICO 230) 042-000785-00000
