Circuit diagrams
PICO 230
44 Item No.: 099-002032-EWM01
12 Circuit diagrams
Original format circuit diagrams are located inside the machine.

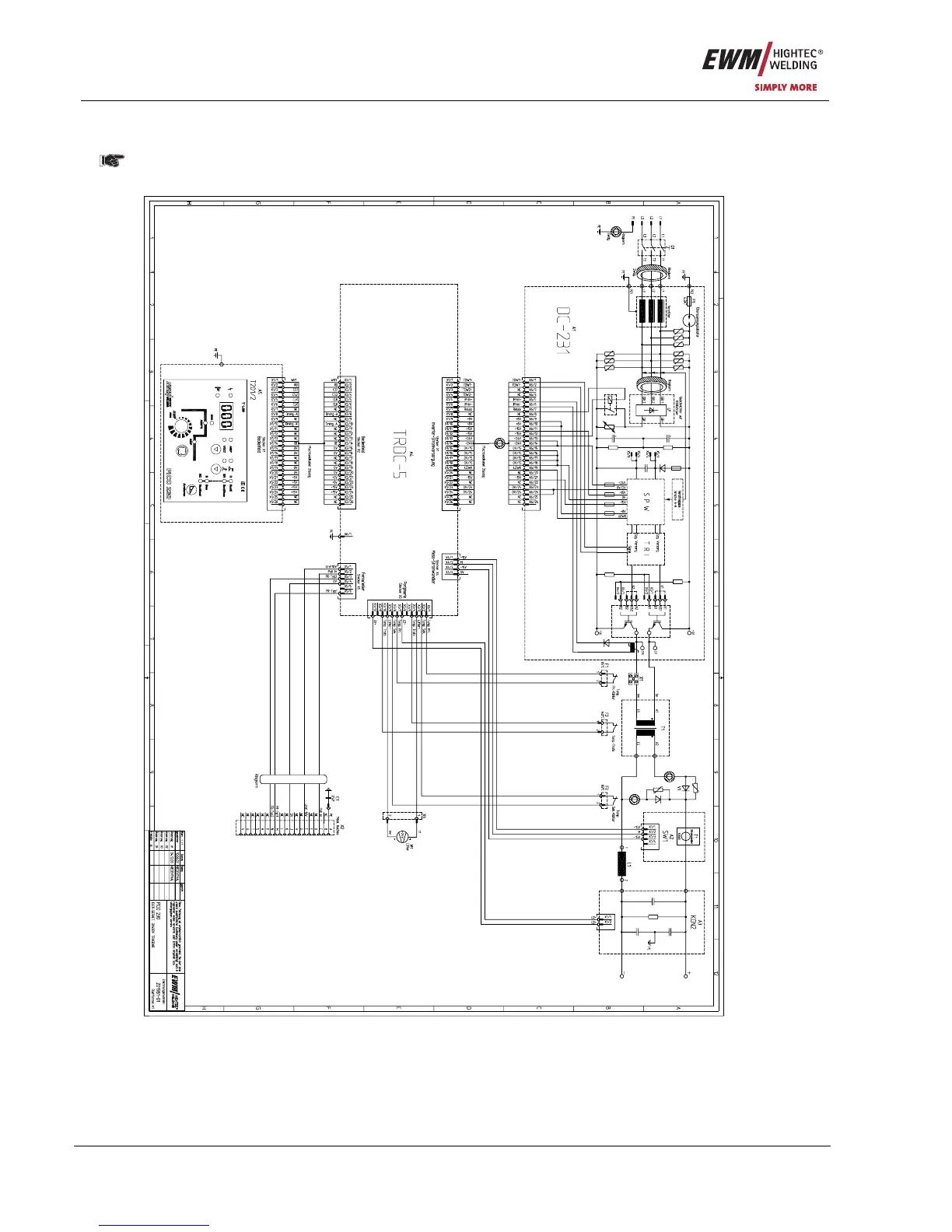

12.1 PICO 230
Figure 12-1
