o If necessary, also connect the LC cables (when using more than one display
together)

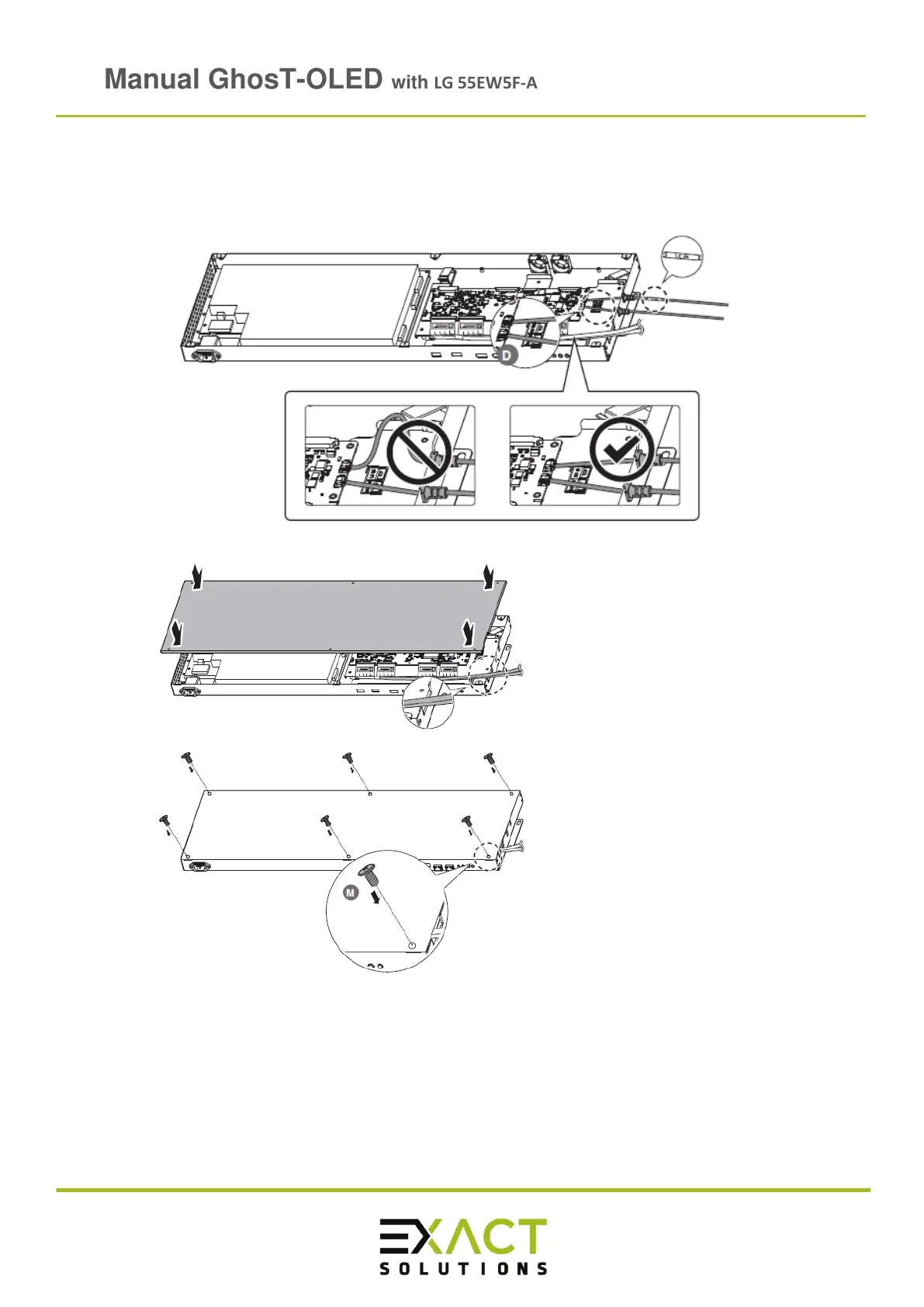

o Make sure to guide the connected cables correctly through the appropriate cut
outs:
o Fix the cover to the signage box:
WARNING: Do not touch anything inside the signage box except the sockets for the
flexible flat cables. Please also refer to the warnings in chapter 1.2 Safety
instructions. Unplug power cord otherwise electric shock may occur
Note: Also follow the instructions in the “LG 55EW5F-A Quick set-up guide” regarding
connecting the flexible flat cables and the LC cables to the signage box, (refer
to chapter 5 Connector panel and control possibilities)
