ASSEMBLY INSTRUCTIONS
• SAVE ALL INSTRUCTIONS
1. Place the unit on its back and insert wheel
axle into front tube (FIG 1). Use (1) M6
washer and (1) M6 x 15mm long hex head
screw to assemble wheel axle to frame
using the supplied open-end wrench.
Tighten securely. Repeat for opposite side.
2. Remove (1) M8 washer and (1) M8 nut from
wheel axle and place wheel onto axle
(FIG 2). Be sure the hub on the wheel goes
to the inside (FIG 3). The wheel hub side of
the wheel has the center piece that
protrudes out from the wheel approximately
a 1/4 inch. Re-assemble the washer and nut
onto axle using the supplied open-end
wrench (FIG 4). Tighten securely. Repeat for
opposite side.
3. With the unit still on its back, assemble the
rubber feet using (1) M8 x 30mm long
socket head cap screw and (1) M8 nut
(FIG 5). Using the supplied hex wrench
and open-end wrench, tighten securely.
Repeat for opposite side (FIG 6).
4. Place the unit on its wheels and rubber feet.
Insert the handle into the frame (FIG 7).
Locate the handle hardware (bolts and
knobs) in the plastic bag with the Operation
Manual. Ensure that the holes on the handle
and frame are aligned. Insert the handle bolt
through the holes from the outside (FIG 8).
Thread the knob onto the bolt from the
inside and securely tighten it into place
(FIG 8).

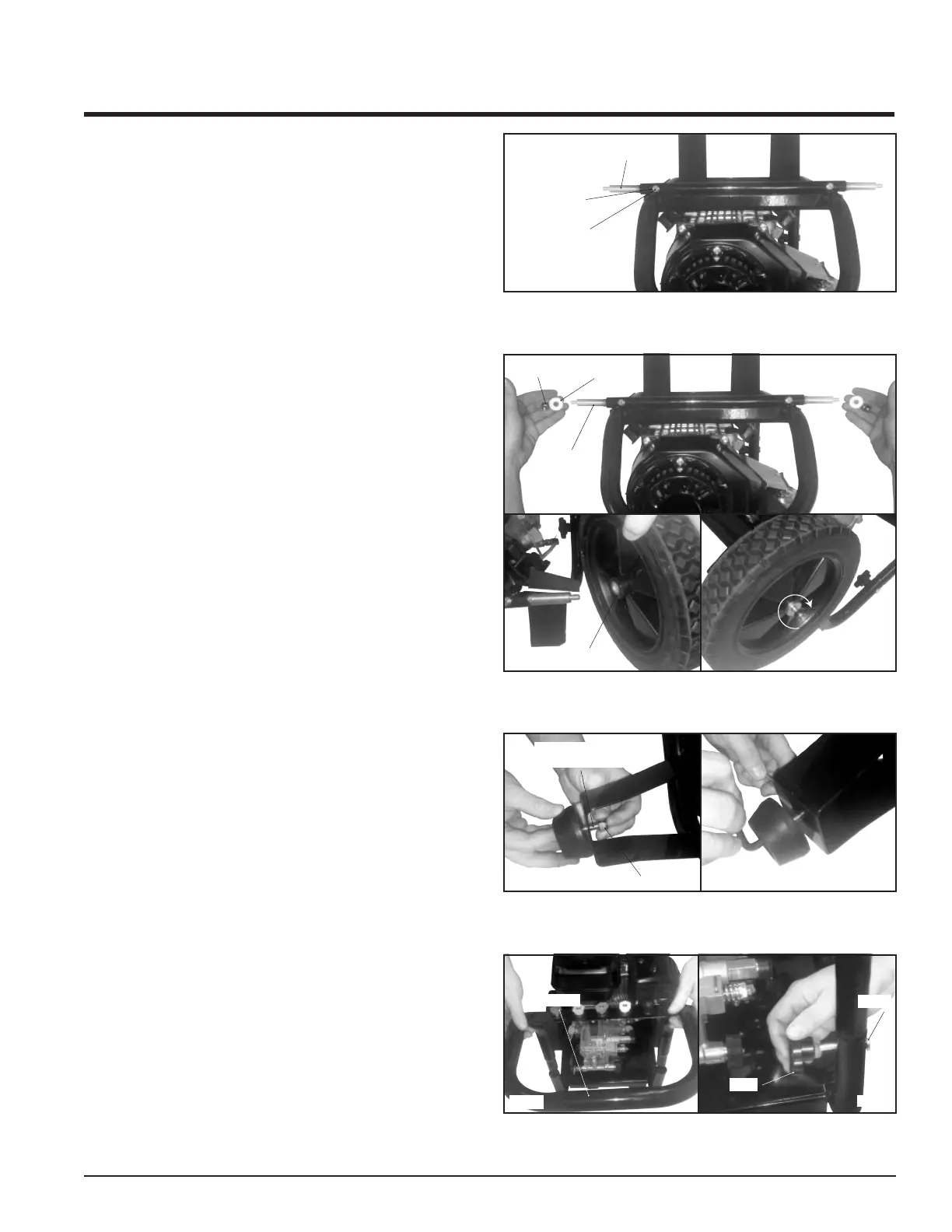

FIG 1
wheel axle
M6 washer
FIG 2
FIG 4FIG 3
wheel axle
wheel hub
M8 washer
FIG 6
FIG 5
M8 nut
M8 x 30mm
head cap screw
M6 X 15mm
hex head screw
M8 nut
FIG 8
FIG 7
knob
screw
handle
