Excell EPW1792500 - Lower Gun Hook Assembly; Upper Gun Hook Assembly; Upper Hose Hanger Assembly

Copyright © 2017 MAT Industries, LLC
8 - ENG
ASSEMBLY INSTRUCTIONS (CONT.)
• SAVE ALL INSTRUCTIONS

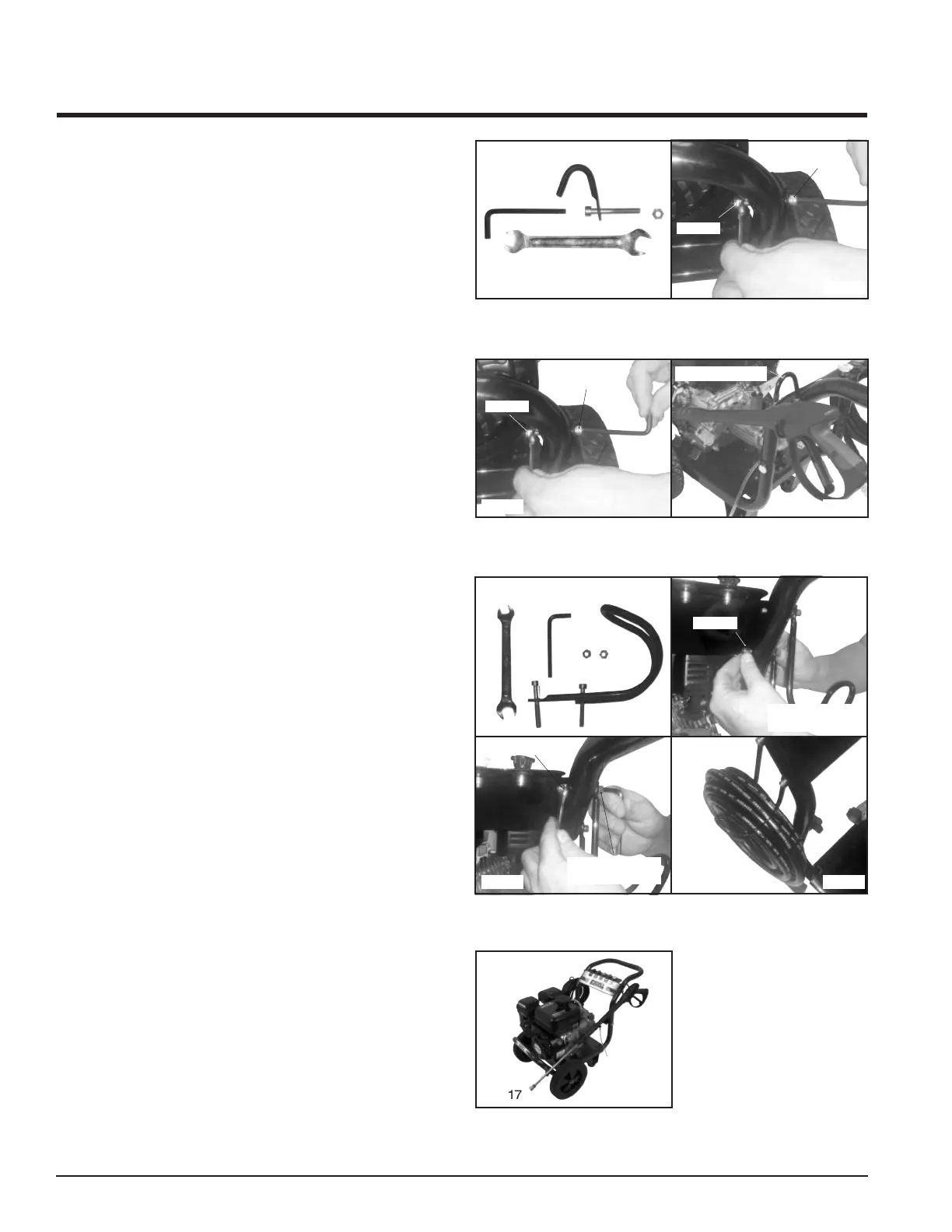

5. Assemble the lower gun hook using
(1) M6 x 45mm long socket head cap screw,
(1) M6 nut, and the supplied hex wrench and
open-end wrench (FIG 9). Tighten securely
(FIG 10).
6. Assemble the upper gun hook using
(1) M6 x 45mm long socket head cap screw,
(1) M6 nut, and the supplied hex wrench and
open-end wrench (FIG 11). Tighten securely.
7. Assemble the upper hose hanger using (2)
M6 x 45mm long socket head cap screws,
(2) M6 nuts, and the supplied hex wrench
and open-end wrench (FIG 13-16).
Tighten securely.
8. Final unit assembly (FIG 17).
FIG 10
FIG 12
FIG 9
FIG 11
M6 nut
M6 nut
upper gun hook
FIG 13
FIG 15 FIG 16
FIG 14
M6 X 45mm
head cap screw
M6 X 45mm
head cap screw
M6 X 45mm
head cap screw
M6 X 45mm
head cap screw
M6 nut
M6 nut
FIG 17
