24
STEP 14

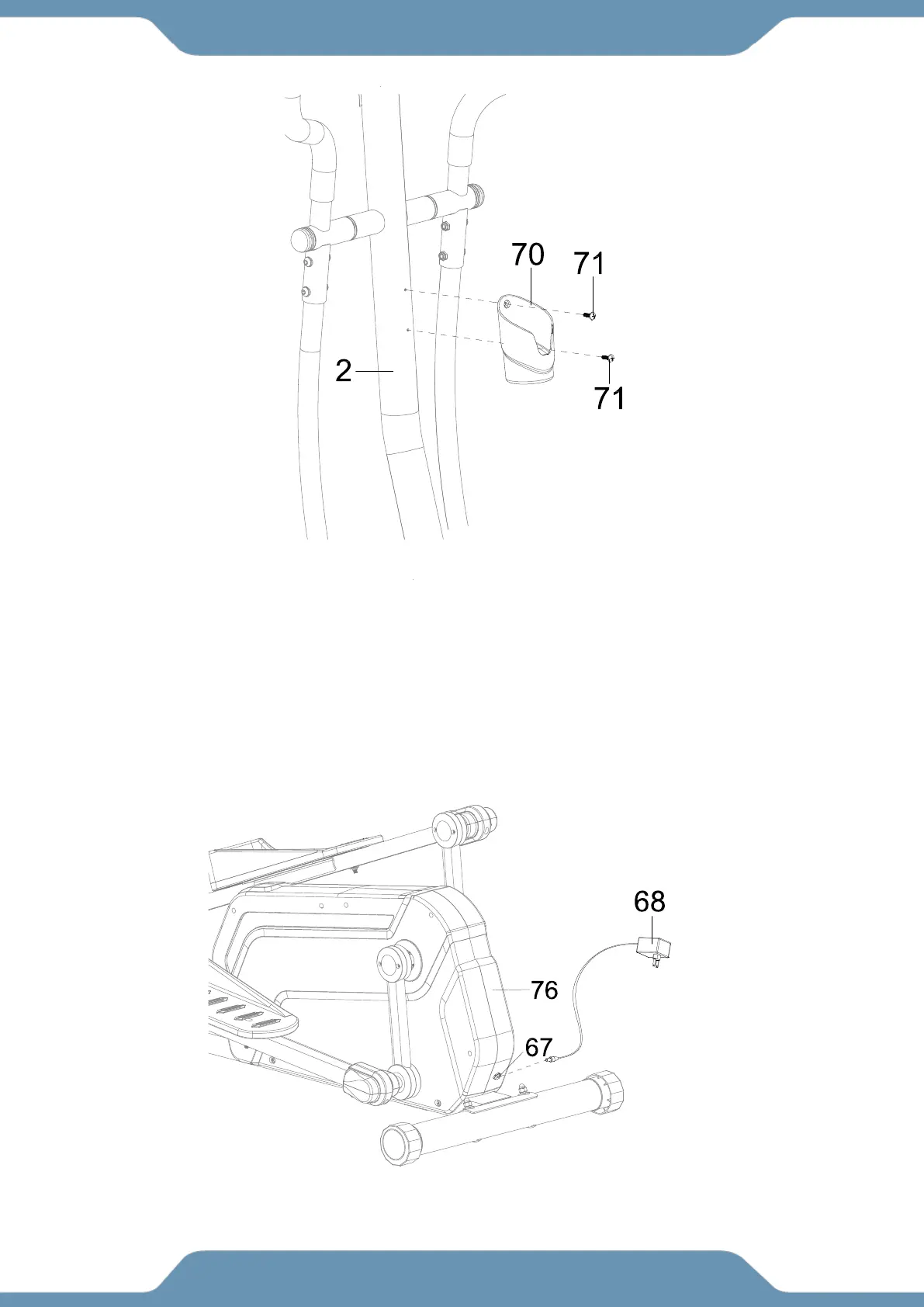

14a. Removing The Hardware From The Front Post –Use the Multi Hex Tool with Phillips
Screwdriver to remove the two Self-Tapping Phillips Screws (71) from the Front Post (2).
14b. Installing the Bottle Holder – Attach the Bottle Holder (70) onto the Front Post (2) with
two Self-Tapping Phillips Screws (71). Tighten the hardware using the Multi Hex Tool with
Philips Screwdriver provided.
14c. Plugging In The Machine – Connect the Adaptor (68) to the Power Jack (67) on the rear of
the Right Protective Cover (76).
