Operating Instructions and Safety Precautions
for the 2100 SP / OP Charger
GB
Safety
Only a trained person should operate this
equipment. The input and output voltages used
with this equipment may be high enough to
endanger life, so insulated, shrouded
connectors must be fitted.
Please read this manual completely and convey
instructions to all personnel concerned. Keep
the manual in a safe and convenient place.
It is advisable to thoroughly read the
information on battery safety supplied with the
battery, prior to charging.
Towards the end of charge, lead acid batteries
give off hydrogen gas, which is explosive if in
sufficient concentration, therefore avoid flames
and sparks. Appropriate measures must be
taken to ensure adequate ventilation.
Incorrect use of a charger or maladjustment of
its controls can damage a battery. The
equipment has been factory set and does not
require user adjustment.
This product has been designed, manufactured
and certified to be in conformance with
European Safety and EMC Directives. Testing
has ensured that the battery and charger
combination conform as a system for use in
Light and Heavy Industrial environments for
each respective product variant. The following
notes are for the guidance of the person
installing and using the product.
The charger must be isolated from the input
supply and the battery, before any panels are
removed.
Installation
Installation must only be carried out by suitably
qualified personnel and in accordance with
current local and national wiring regulations.
Battery leads should not be altered without prior
consultation with service personnel.
The charger should be sited in a cool, dry, well-
ventilated location away from corrosive fumes
and humid atmospheres.
Care must be taken to ensure that the chargers
vents are not obstructed and have at least
100mm of clearance from any surface.
Chargers must be positioned so that the
exhaust of one charger is not directly affecting
the inlet of another.
The charger is for inside use only.
Before installation, check that:
x The charger has not sustained any transit
damage.
x The rating is suitable for the intended input
supply and ‘lead acid’ battery to be
charged.
x The connector polarity is correct and
matches the polarity of the battery
connector.
Input supply
The input current rating and voltage of the
charger is stated on the charger rating plate.
The rating of the protection device should be
based on the maximum input current, as stated
on this plate.

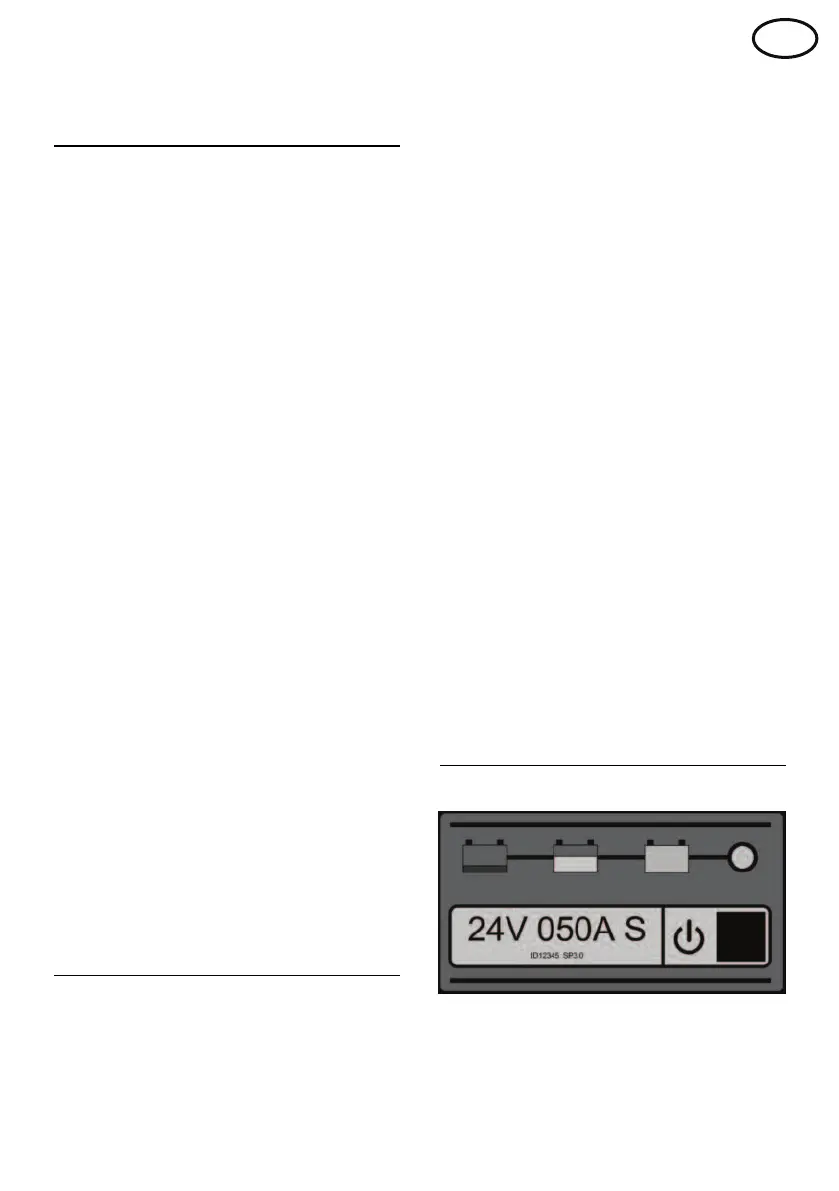

Display and Control
Overview
1. Tri-Colour Charge Status Indicator
2. Charger Voltage
3. Charger Current
4. Charger Profile
5. Pause Button
1
23
4
5
