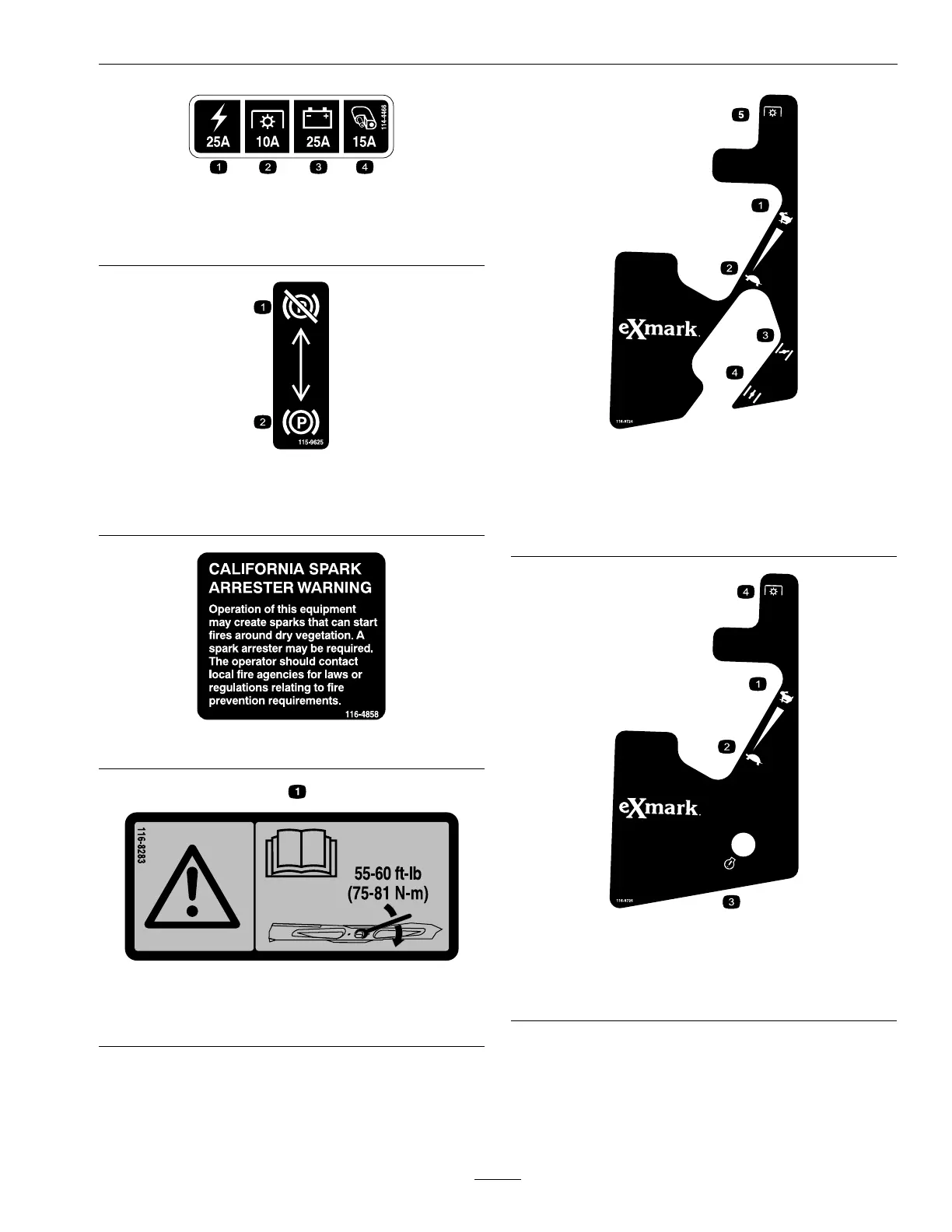

Safety
114-4466
1.Main,25A
3.Charge,25A
2.PTO,10A
4.Auxiliary,15A
115-9625
1.Parking
brake—disengaged
2.Parkingbrake—engaged
116-4858
116-8283
1.Warning—readtheOperator'sManualforinstructions
ontorquingthebladebolt/nutto55-60ft-lb(75-81N-m).
116-8724
AllUnitsexceptEFI
1.Throttle-fast4.Choke-off
2.Throttle-slow
5.PTO
3.Choke-on
116-8725
EFIUnitsOnly
1.Throttle-fast3.PTO
2.Throttle-slow
4.Checkengine
13
