Exmark Quest Bagger User Manual

Operation

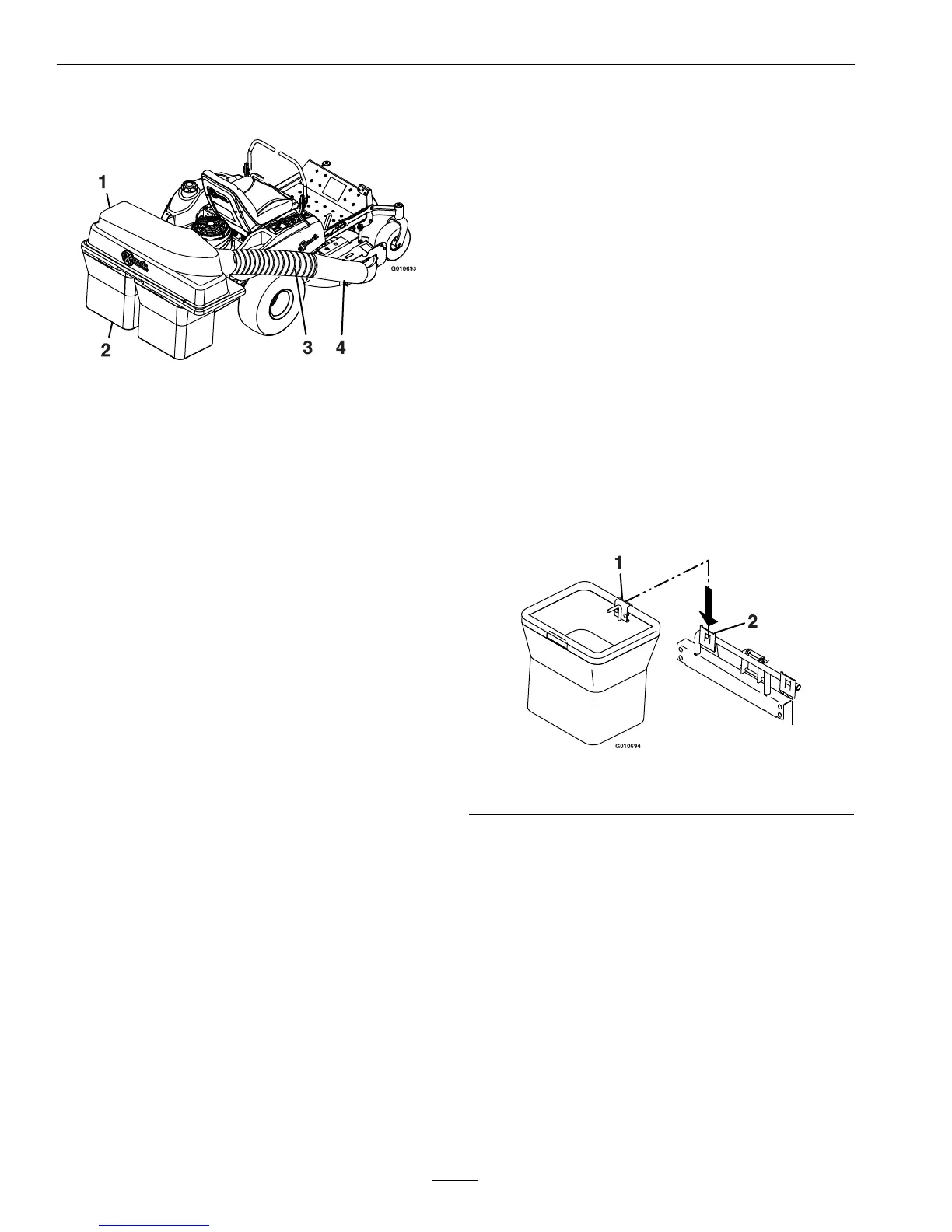

ProductOverview
Figure4
1.Hood
3.Upperexibletube
2.Bag4.Lowertube
Operation
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
EmptyingtheGrassBags
Becarefulwhenliftingorhandlingagrassbagthatis
full.Toemptythegrassbags:
1.Movethemotioncontrolleversoutwardto
neutralposition,disengagethepowertakeoff
(PTO),engageparkingbrake,stoptheengine,
removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
2.Open(raise)thehood.
3.Compressdebrisintothebags.Withbothhands,
liftuponthebagandunhookitfromtheretaining
bracket.Emptythebag.Repeattheprocedure
fortheotherbag.
4.Installthebagsbyslidingthebagframehook
ontotheretainingbracket(Figure5).
Figure5
1.Bagframehook
2.Retainingbracket
5.Lowerthehoodontothebags.
ClearingObstructionsfrom
theBagger
1.Movethemotioncontrolleversoutwardto
neutralposition,disengagethepowertakeoff
(PTO),engageparkingbrake,stoptheengine,
removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
2.Checkthegrassbagsandemptythemiftheyare
full.
3.Removeandseparatethedischargetubeand
chutefromthebaggerhoodandmower.Usinga
stickorsimilarobject,carefullyremoveandclear
10
