22

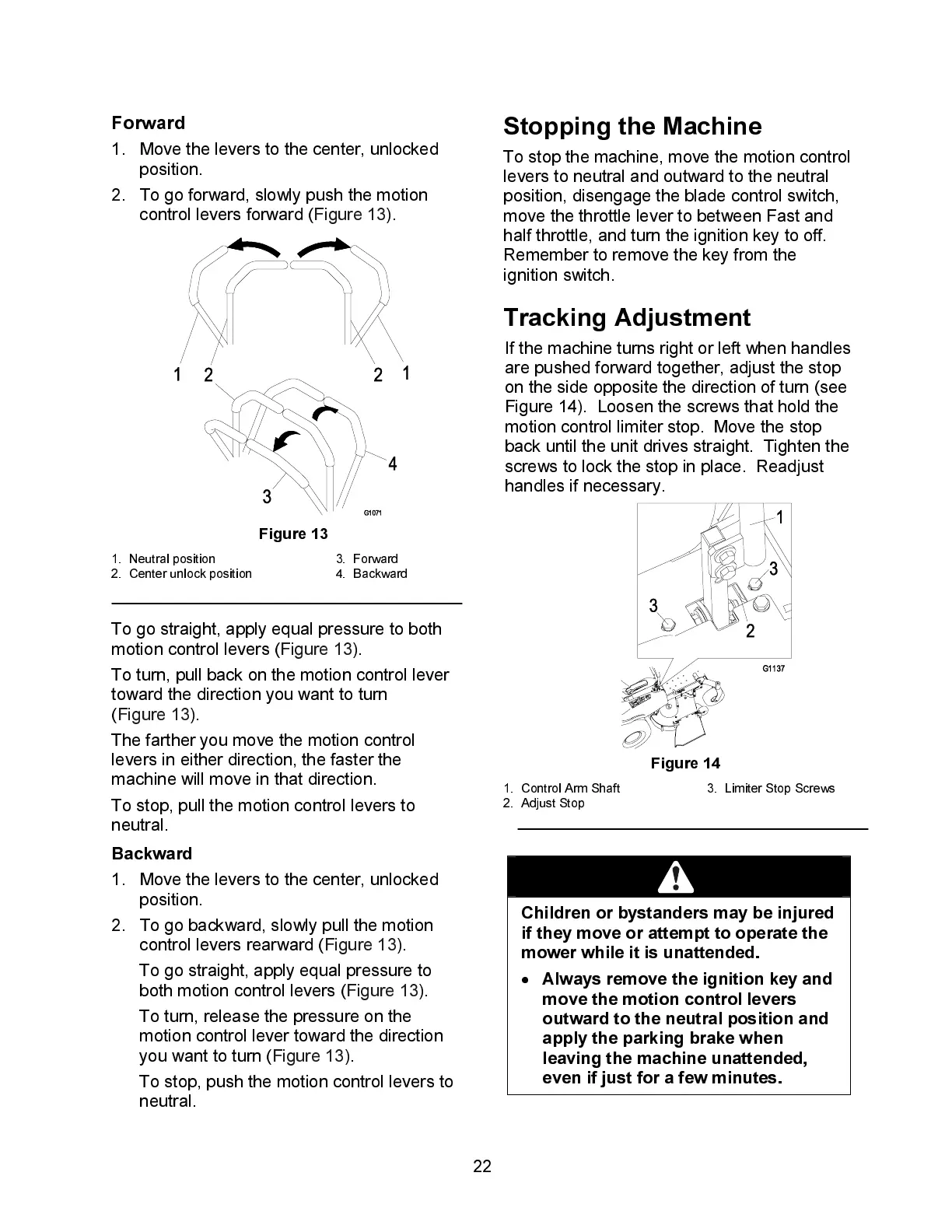

Forward
1. Move the levers to the center, unlocked
position.
2. To go forward, slowly push the motion
control levers forward (Figure 13 ).
Figure 13
1. Neutral position 3. Forward
2. Center unlock position 4. Backward
To go straight, apply equal pressure to both
motion control levers (Figure 13).
To turn, pull back on the motion control lever
toward the direction you want to turn
(Figure 13 ).
The farther you move the motion con trol
levers in either direction, the faster the
machine will move in that direction.
To stop, pull the motion control levers to
neutral.
Backward
1. Move the levers to the center, unlocked
position.
2. To go backward, slowly pull the motion
control levers rearward (Figure 13).
To go straight, apply equal pressure to
both motion control levers (Figure 13).
To turn, release the pressure on the
motion control lever toward the direction
you want to turn ( Figu re 13).
To stop, push the motion control levers to
neutral.
Stopping the Machine
To stop the machine, move the motion control
levers to neutral and outward to the neutral
position, disengag e the b lade control switch,
move the throttle lever to between Fast and
half throttle, and turn the ignition key to off.
Remember to remove the key fro m the
ignition switch.
Tracking A djus tmen t
If the machine turns right or left when handles
are pushed forward toge ther, adjust the stop
on the side opposite the direction o f turn (see
Figure 14). Loosen the screws that hold the
motion control limiter stop. Move the stop
back until the unit drives straight. Tighten the
screws to lock the stop in place. Readjust
handles if necessary.
Figure 14
1. Control Arm Shaft 3. Limiter Stop Screws
2. Adjust Stop
Children or bystanders may be injured
if they move or attempt to operate the
mow er while it is unattended.
•
Always remove the ignition key and
move the motion control levers
outwa rd to the neutral posit ion and
apply the parking brake when
leaving the machine unattended,
even if just for a few minutes.
