23

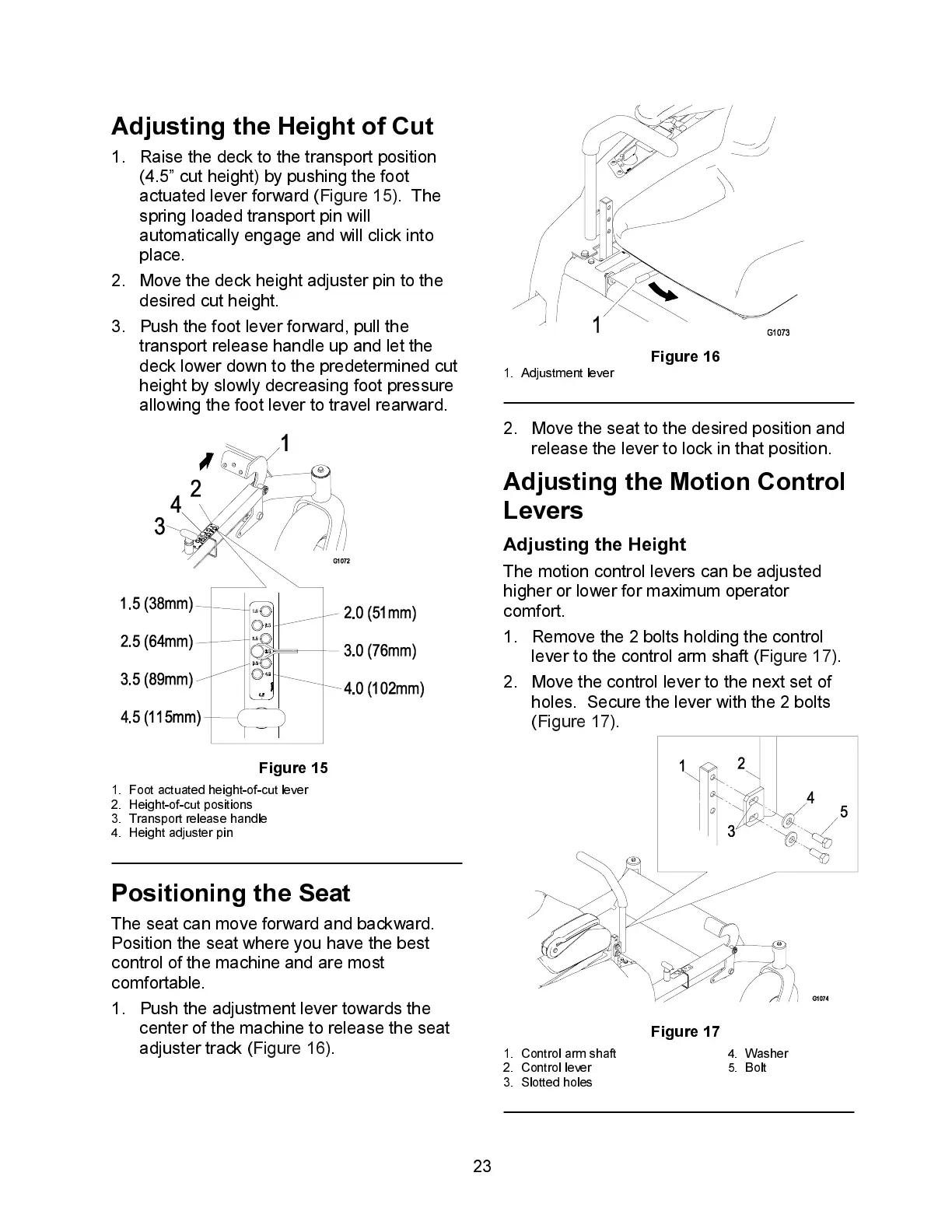

Adjusting the Height of Cut
1. Raise the deck to the transport position
(4.5” cut height) by pushing the foot
actuated lever forward (Figure 15). The
spring loaded transport pin will
automatically engage and will click into
place.
2. Move the deck height adjuster pin to the
desired cut height.
3. Push the foot lever forward, pull the
transport release handle up and let the
deck lower down to the predetermined cut
height by slowly decreasing foot pressure
allowing the foot lever to travel rearward.
Figure 15
1. Foot actuated height-of-cut lever
2. Height-of-cut positions
3. Transport release handle
4. Height adjuster pin
Positioning the Seat
The seat can move forward and backward.
Position the seat where you have the best
control of the machine and are most
comfortable.
1. Push the adjustment lever towards the
center of the machine to release the seat
adjuster trac k ( Figure 16).
Figure 16
1. Adjustment lever
2. Move the seat to the desired position and
release the lever to lock in tha t position.
Adjusting the Motion Control
Levers
Adjusting the Height
The motion control levers can be adjusted
higher or lower for maximum operator
comfort.
1. Remove the 2 bolts holding the control
lever to the control arm shaft (Figure 17).
2. Move the control lever to the next set of
holes. Secure the lever with the 2 bolts
(Figure 17 ).
Figure 17
1. Control arm shaft 4. Washer
2. Control lever 5. Bolt
3. Slotted holes
