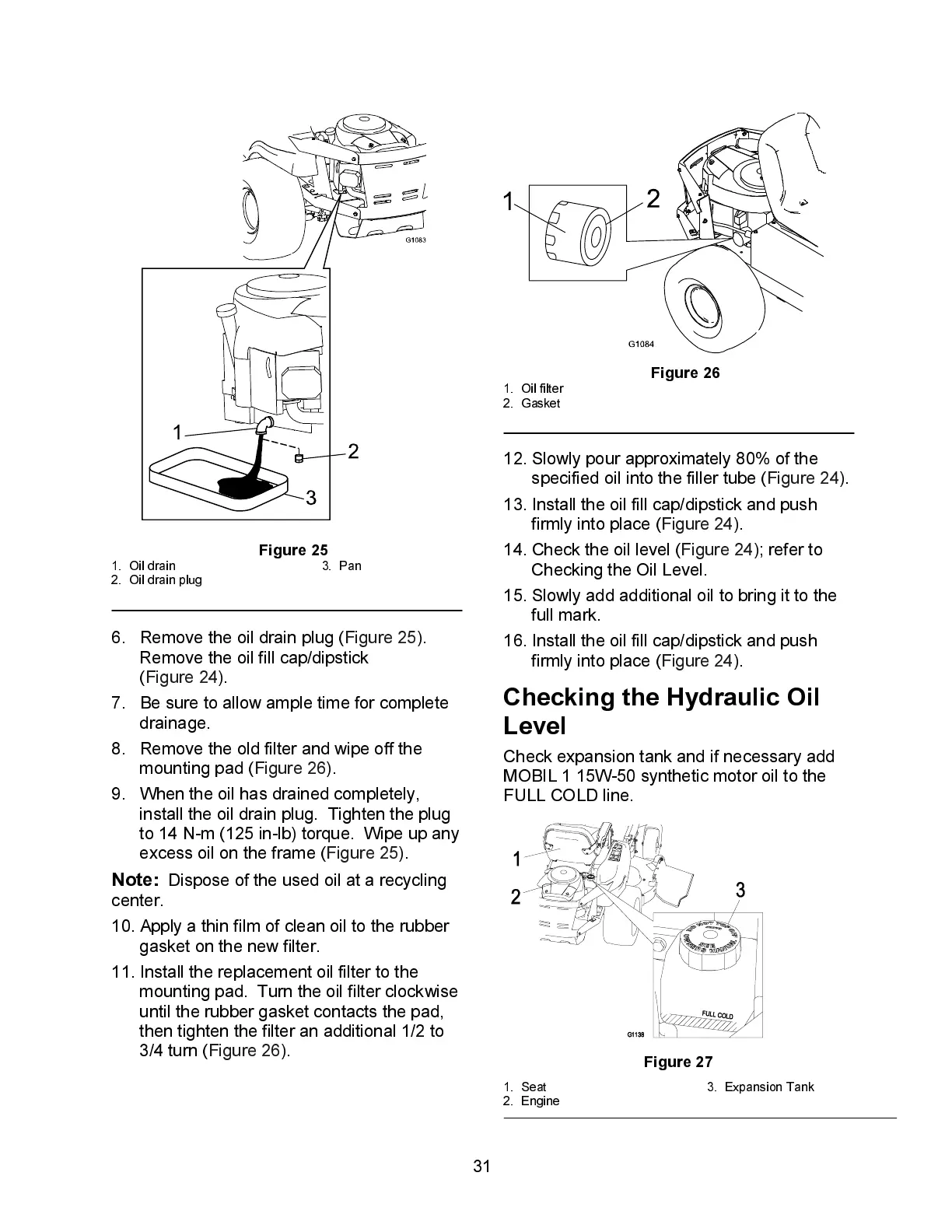

Figure 25
1. Oil drain 3. Pan
2. Oil drain plug
6. Remove the oil drain plug (Figure 25 ).
Remove the oil fill cap/dipstick
(Figure 24 ).
7. Be sure to allow ample time for complete
drainage.
8. Remove the old filter and wipe off the
mounting pad (Figure 26).
9. When the oil has drained completely,
install the oil drain plug. Tighten the plu g
to 14 N-m (125 in-lb) torque. Wipe up any
excess oil on the frame (Figure 25).
Note:
Dispose of the used oil at a recycling
center.
10. Apply a thin film of clean oil to the rubber
gasket on the new filter.
11. Install the replacemen t oil filter to the
mounting pad. Turn the oil filter clockwise
until the rubber gasket c ontacts the pad,
then tighten the filter an additional 1/2 to
3/4 turn (Figure 26 ).
Figure 26
1. Oil filter
2. Gasket
12. Slowly pour approximately 80% of the
specified oil into the filler tube ( Figure 24).
13. Install the oil fill cap/dipstick and push
firmly into place ( Fi gure 24).
14. Check the oil level (Figure 24); re fe r to
Checking the Oil Level.
15. Slowly add additional oil to bring it to the
full mark.
16. Install the oil fill cap/dipstick and push
firmly into place ( Fi gure 24).
Checking the Hyd raulic Oil
Level
Check expansion tank and if necessary add
MOBIL 1 15W- 50 synthetic motor oil to the
FULL COLD line.
Figure 27
1. Seat 3. Expansion Tank
2. Engine
