ExoAtlet ExoAtlet-II - Page 50

User’s Manual
http://www.exoatletasia.com
ExoAtlet
Ⓡ
II 49 / 84 Ver 1.0 (2019.03.29.)

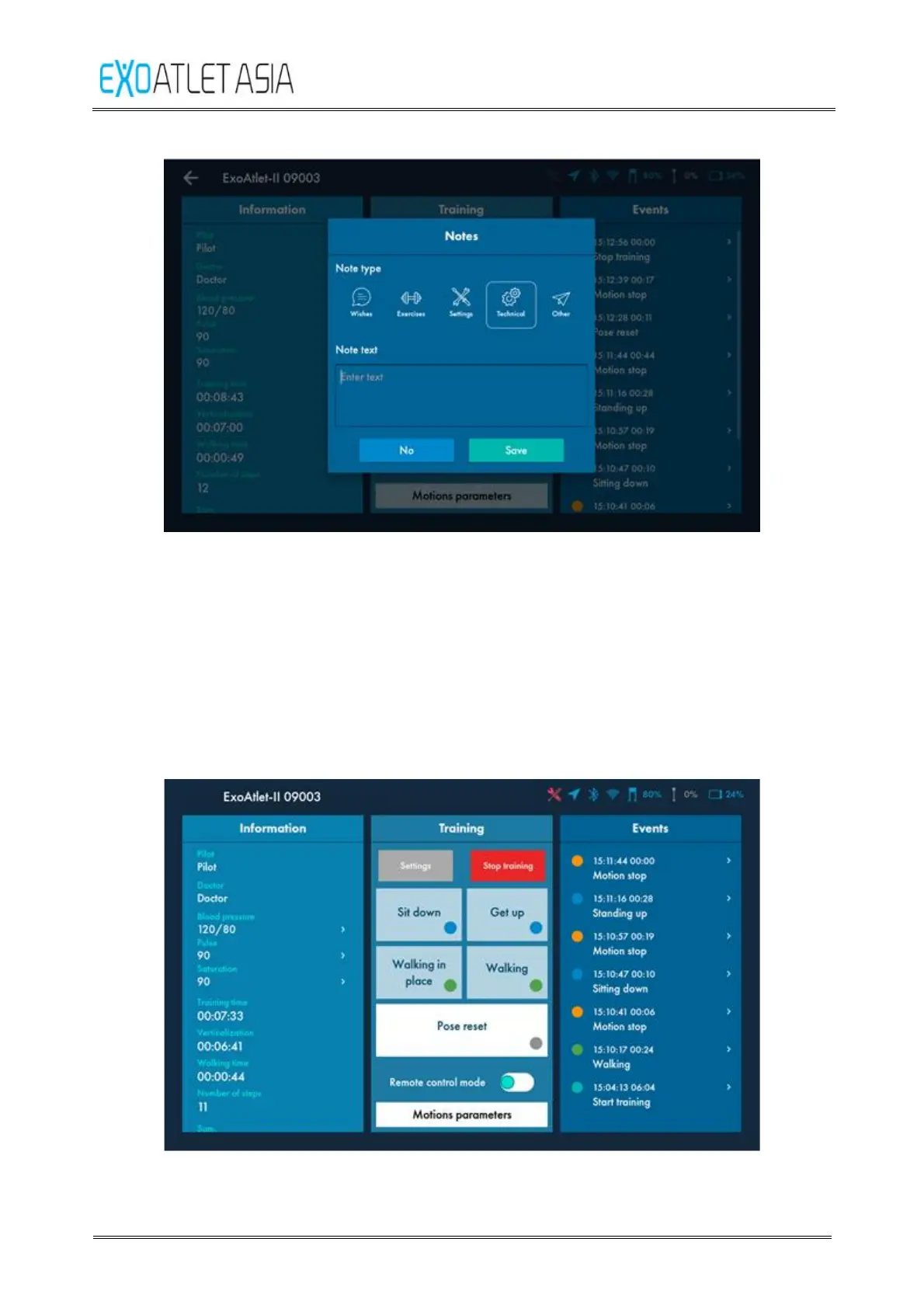

Figure 52
3) Motion buttons
Available motion buttons depend on the current pose of the exoskeleton. There are
3 available poses:
① Undefined pose – when limbs of the exoskeleton are not in standard sitting or standing
pose. If you moved some of the limbs before turning on exoskeleton, it will probably be
in this pose. In this pose only “Pose reset” (more details in 8.2.2.3.5) motion is available
(see Figure 53).
Figure 53
