Exodraft MEC24 - Dimensions and Capacities

2. Specications
2.1 Dimensions and capacities
exodraft MEC24 Control
Power supply V 1x120 VAC / 60 Hz
Fuse Size Control/Motor A 0.4/6.3
Max. Motor Load kW/hp 0.35/0.5
Operating temperature °F/°C -4 to 122/-20 to 50
Range of operation inWC/Pa 0-0.6/0-150
Tolerance inWC/Pa 0.01/3+/-10%
Control signal VFD VDC/mA 0-10/max. 10
Control and Alarm relay Max 230 VAC/4A AC1 - 24 VDC/2A DC1
Boiler Inputs 10-48 VDC / 10-132 VAC
VFD Relay Max 230 VAC/2A AC1 - 24VDC/2A DC1
Output TRIAC VAC 10-120
Dimensions A in/mm 6.88/175
B in/mm 8.48/215
C in/mm 4.33/110
Weight lbs/kg 3.0/1.5
IP-Rating NEMA 4X / IP54
Ashcroft XTP-sensor
Power supply VDC 14-36
Amperage mA 6
Output VDC 0-10
Operating temperature °F/°C 0 to 160/-17 to 70
Tolerance inWC/Pa 0.01/3+/-10%
Weight lbs/kg .9/.4
Chimney Probe
Dimensions H in/mm 4.25/108
I in/mm 3.50/89
B
A
C
D
F
G
E
H
I

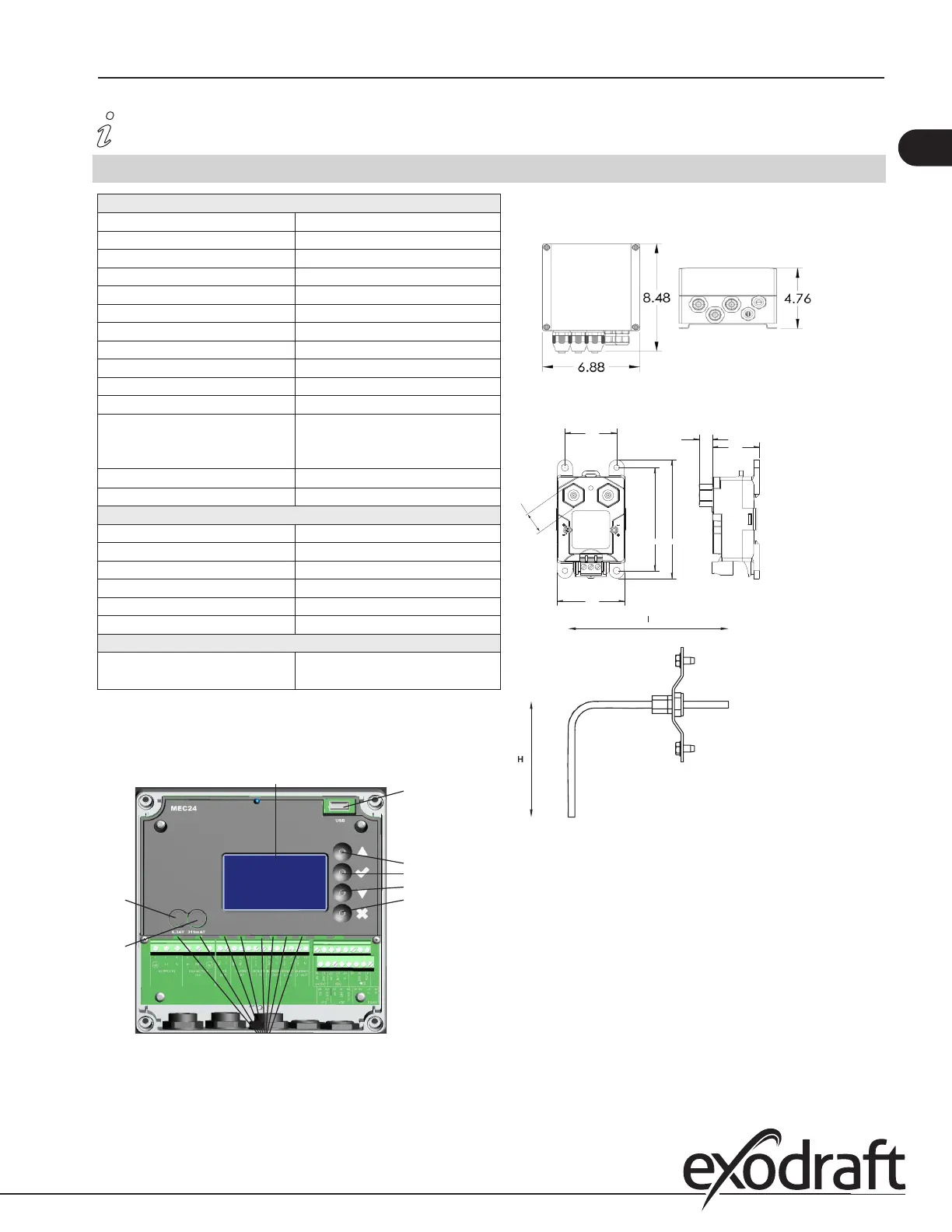

Fig. 1
Symbols
Fig. 1-A Fuse holder Exhaust Fan
Fig. 1-B Fuse holder Control
Fig. 1-C Display 128 x 64 pixels
Fig. 1-D USB port
Fig. 1-E Up button
Fig. 1-F Select / Conrm button
Fig. 1-G Down button
Fig. 1-H Reset / Back button
Fig. 1-I LEDs (green) showing ON/OFF status
1.45
2.90 3.33
1.89
1.32
.37
P OWER
HI LO
SPAN
ZERO
.56
5
3120066 MEC24 US 20210325
