EXPERT GRILL EX5502638816005 - Page 7

7
1
Warming Rack
G2452-010
2
Cooking Grid (2)
G2452-020
3
Lid Handle (2)
G2552-030
4
Temperature Gauge
B0104-J05
5
Heat Shield (2)
G2452-040
6
Left Lid*
G2452-050
7
Right Lid*
G2452-060
8
Griddle Surface
G2452-070
9
Heat Plate (3)
G2452-080
10
Left Grill Body Assembly*
G2452-090
11
Burner (5)*
G2452-100
12
Right Grill Body Assembly*
G2452-110
13
Side Shelf (2)
G2452-120
14
Control Knob Bezel (5)*
G2342-080
15
Control Knob (5)
G2552-090
16
Grill Body Support (2)*
G2452-130
17
Lighting Rod*
B0223-D04
18
Right Grease Cup
G2452-140
19
Leg Cap (4)
G2452-150
20
Regulator / Hose Assembly*
B0308-A14
21
Grease Tray
G2452-160
22
Left Grease Cup Support
G2452-170
23
Left Grease Cup
G2452-180
24
Left Leg
G2452-190
25
Upper Front Panel
G2552-200
26
Right Leg
G2452-210
27
Lower Front Panel
G2452-220
28
Foot (2)
G2452-230
29
LP Gas Tank Retainer Bolt*
G2452-240
30
LP Gas Tank Blocking Bar (3)
G2452-250
31
Bottom Shelf
G2452-260
32
Axle
G2452-270
33
Wheel (2)
B0302-W05
* Pre-assembled
A
Bolt
M6x15 Nickel Plated Phillips Truss Head
15 pcs
B
Bolt
M6x40 Nickel Plated Phillips Truss Head
8 pcs
C
Step Screw
M6x15 Nickel Plated Phillips Truss Head
8 pcs
D
Wing Nut
M6x20 Nickel Plated Phillips Truss Head
2 pcs
E
Nut
M10 Nickel Plated
2 pcs
F
Spacer
Ø18x25 PP
2 pcs
Tools Required for Assembly (Included)
#2 Phillips Head Screwdriver 1 pc
M10-M6 Wrench 2 pcs

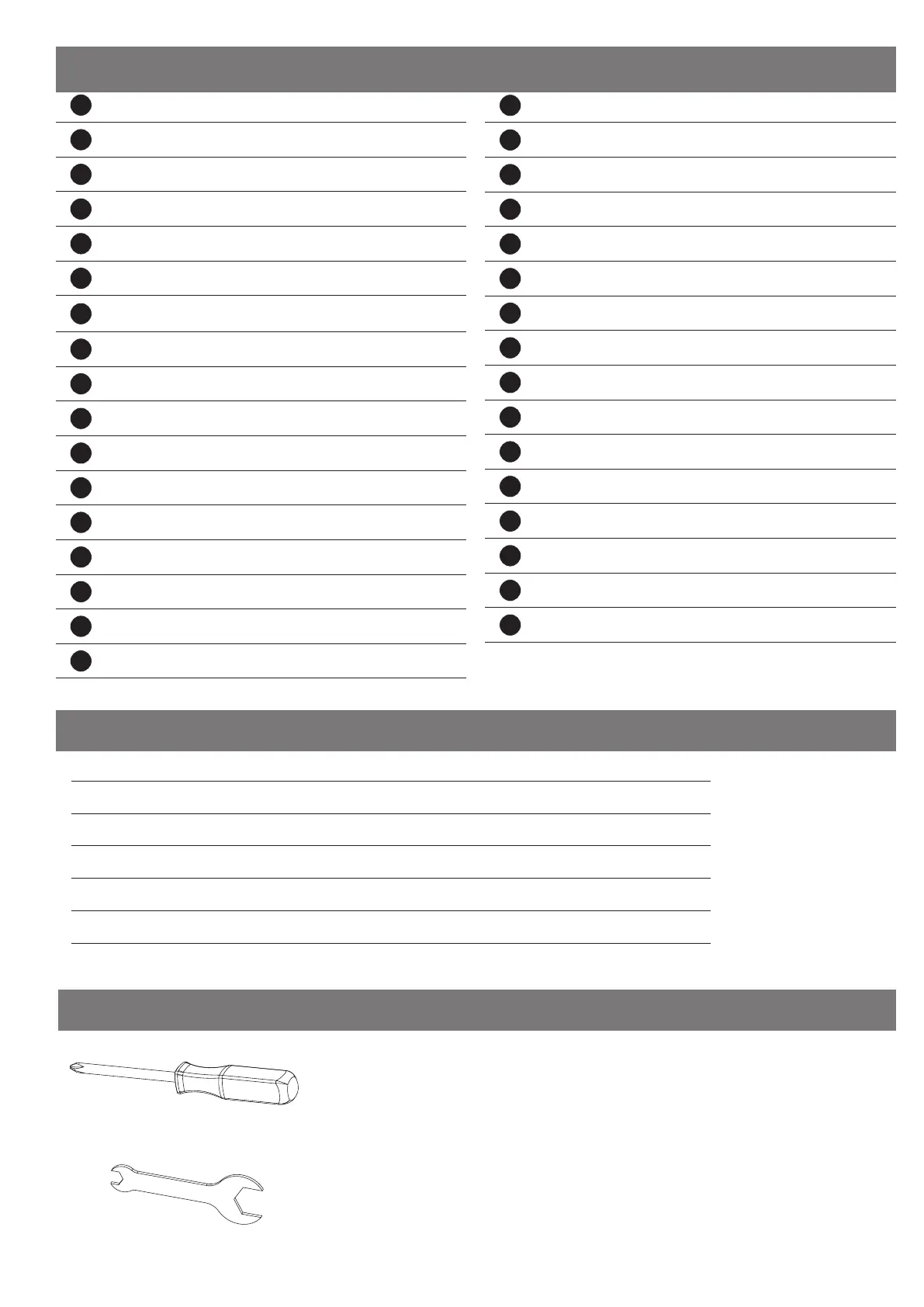

Parts List
Hardware
