TRANSMITTER PREPA R AT I O N
Adjust each of the 4 trim levers (aileron, elevator, rudder, and throttle) to the center position.
8.3
Gimble
Gimble
SYSTEM CHECK
Slide the power on/off switch on your EXPERT Transmitter to the
“on” position.
Next, slide the on/off switch on your flight pack switch harness to the
“on” position.

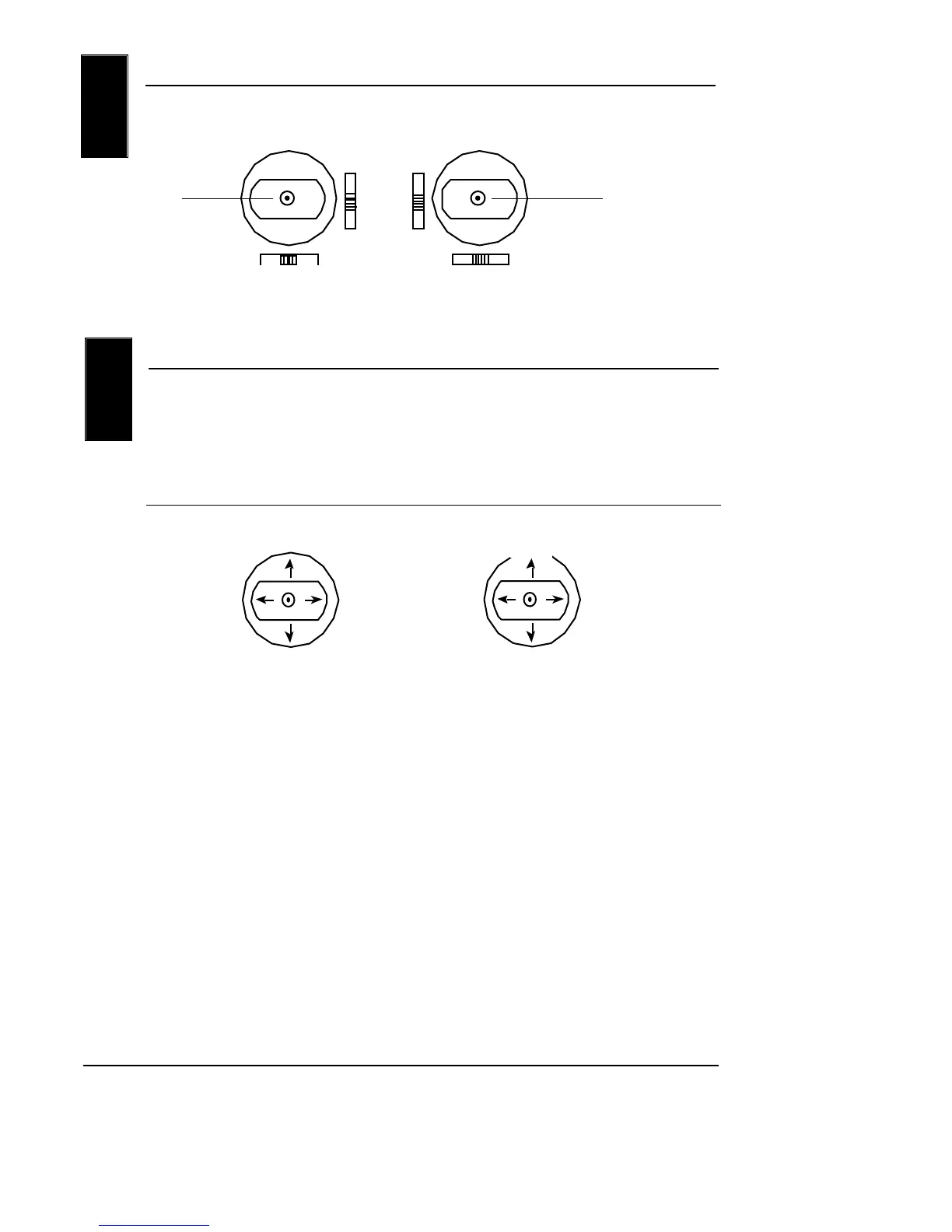

By moving each of the two transmitter sticks in a fore-aft, left-right
motion, the corresponding throttle, rudder, elevator, and aileron
(optional) servo arm/wheel will rotate. Please refer to the transmitter
stick function chart below for clarification.
With the system still activated (on), move the throttle stick to the
neutral (center) position. Double check to be sure that the four
transmitter trim levers are still in their neutral position.
Next, with the power still activated to the transmitter and flight pack,
remove the servo arm/horn from each of the SL500 servos, and then
turn the power “off” to the flight pack first, then the transmitter. By
doing this, the SL500 servos will be left in their neutral position, and
they are now ready to be installed into your model.
NOTE: Save the servo arms/horns; they will be reattached to the
servos after installation.
8.4
Throttle
Throttle
Rudder
Elevator
Elevator
Aileron
(w/optional servo)
Aileron
(w/optional servo)
Rudder
