CONTROL STICK LENGTH ADJUSTMENT
NECK STRAP AT TA C H M E N T
There is an eye hook on the front of the transmitter for attaching an
optional neck strap. The eye hook is precisely positioned (see Section
3.2) so that the transmitter will be perfectly balanced when a neck
strap is used.

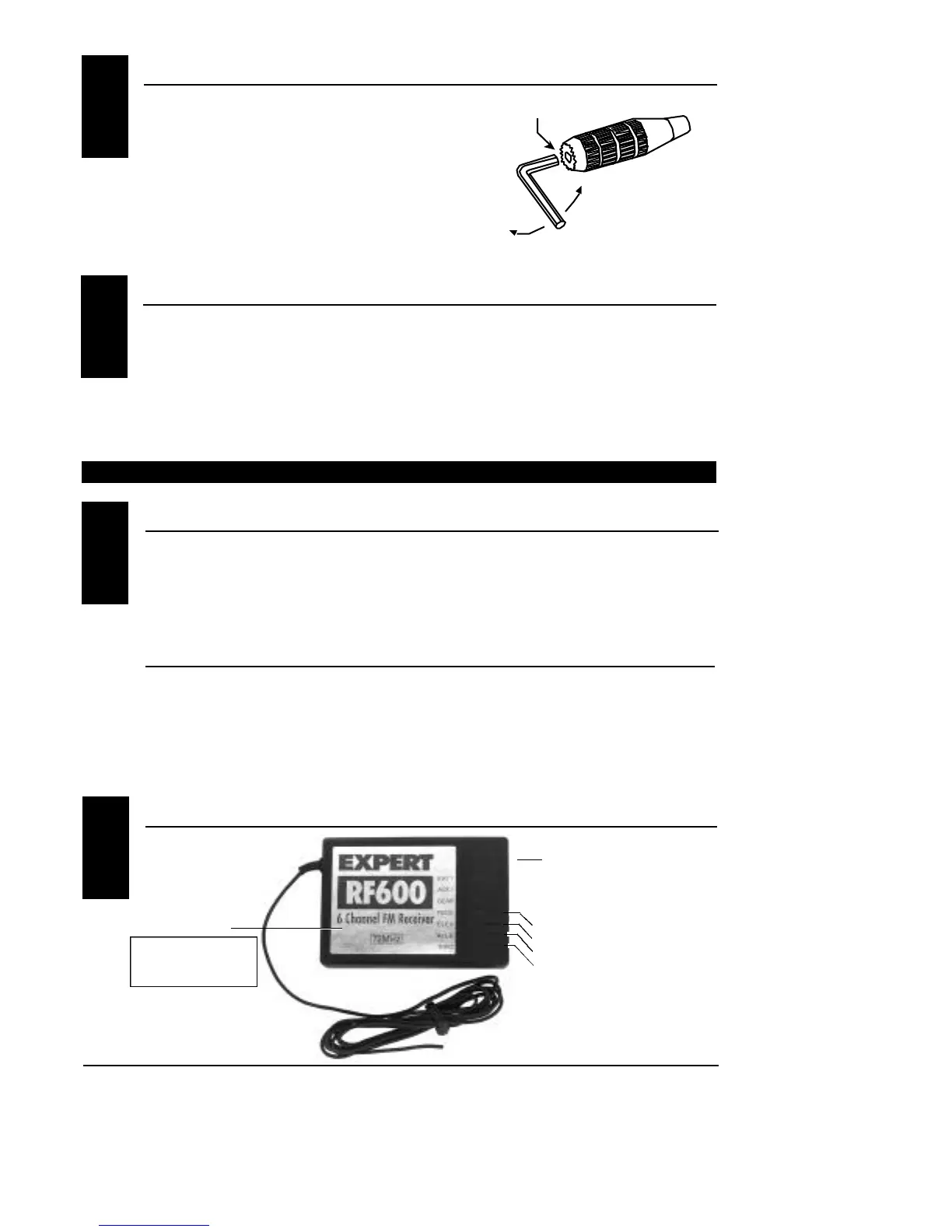

To adjust the control stick length, use a 2mm Allen wrench to unlock
the set screw located inside the end of the control stick. Turn the set
screw counterclockwise to loosen it, then turn the knurled portion of the
stick to adjust the length. Counterclockwise will lengthen the stick and
clockwise will shorten it. After the control stick(s) has been adjusted to
suit your flying style, tighten the set screw.
LOOSEN
TIGHTEN
SET SCREW
2.3
2.4
Set Screw
Loosen
Tighten
RECEIVER SPECIFICAT I O N S
Model Number RF600
Type 6-Channel FM
Frequency 72 MHz
Sensitivity
(Microseconds
)
5µs Minimum
Selectivity 8KHz/50db
Weight (oz.) 1 oz.
Size (W x L x H) 1.43" x 2.06" x .55"
Receiver Antenna 39" for all Aircraft Frequencies
RECEIVER FEAT U R E S / S P E C I F I C AT I O N S
• Patented noise rejection system for excellent interference
protection
• Compact, lightweight design provides easy installation into most
model designs
• State-of-the-art surface mount technology (SMT) design
RECEIVER LAY O U T
3. RF600 RECEIVER
3.1
3.2
Antenna
RF600 Receiver
Battery (Switch Harness)
Rudder
Receiver Frequency Crystal
Elevator
Aileron
Throttle (Engine)
JR brand replacement crystals
recommended order JRPXF**
Replace ** with channel number
To Next Page
