Expert RF600 - Pre-Installation System Preparation; Flight Pack Connections; SL500 Servo Preparation

Receiver Battery
4.8V 600ma
Not Used With
4-Channel System
Not Used With
4-Channel System
Rudder
Elevator
Aileron
Note: On some types
of 2 and 3 channel
aircraft, the rudder
servo is plugged
in here.
On/Off Switch Harness
(EXRA050)
Connect to Charger for
Charging
RF600 Receiver
Antenna
9
EXPERT Manual

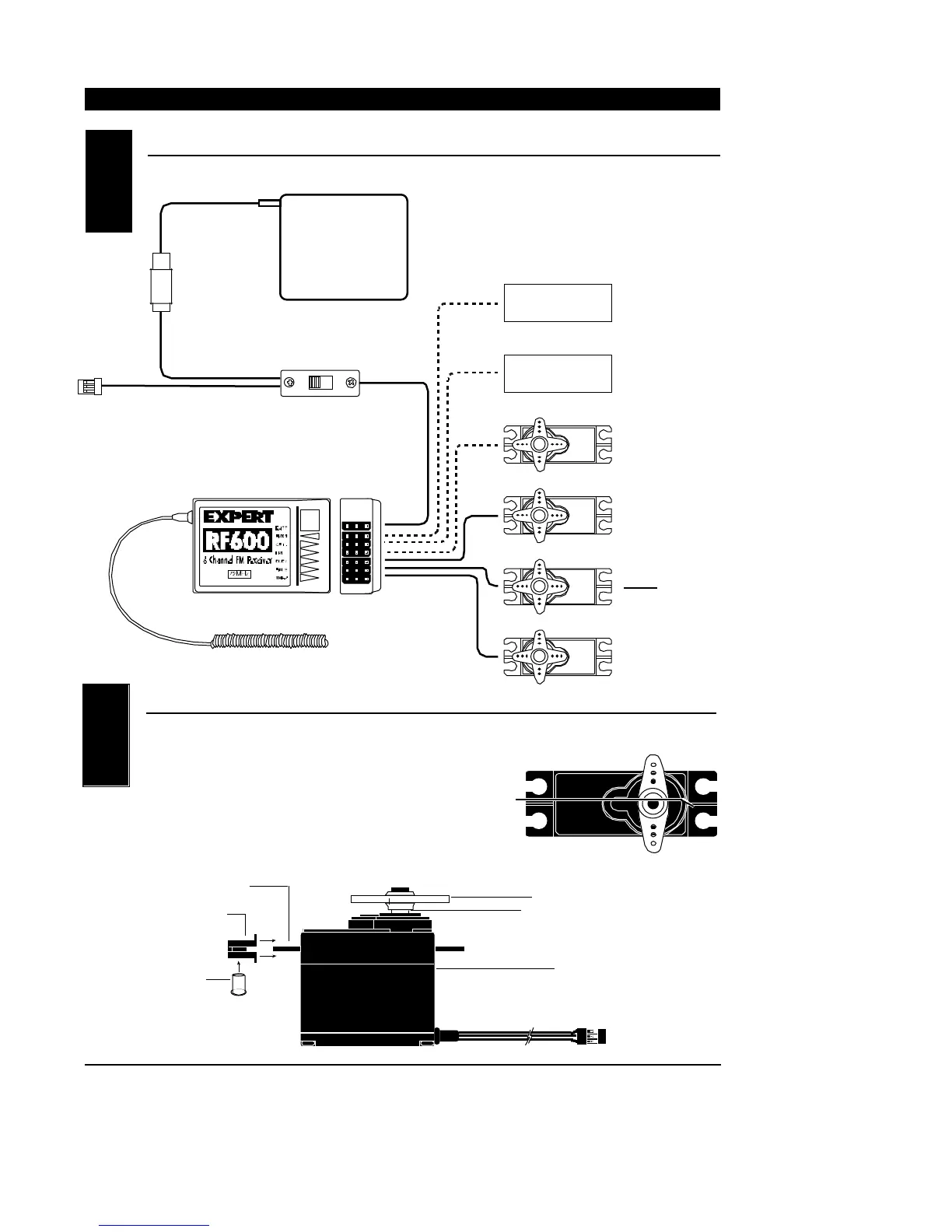

FLIGHT PACK CONNECTIONS
Connect all flight pack components of your EXPERT system as outlined in the diagram below:
8. PRE-INSTA L L ATION SYSTEM PREPA R AT I O N
8.1
SL500 SERVO PREPA R AT I O N
Using a Phillips screwdriver, remove the servo arm retaining screws from each of the SL500 servos as shown in Figure 1.
Next, install 4 servo grommets and 4 servo eyelets to each SL500 servo as shown in Figure 2.
8.2
Rubber Grommet
Servo Case
Servo Lead w/Connector
Servo Output Shaft
Servo Mounting Flange
Servo Arm/Horn
Servo Arm Retaining Screw
Servo Eyelet
Figure 2
Figure 1
Servo Arm Retaining
Screw (Phillips Head).
Throttle
