Expert RF600 - Transmitter Layout

5
EXPERT Manual

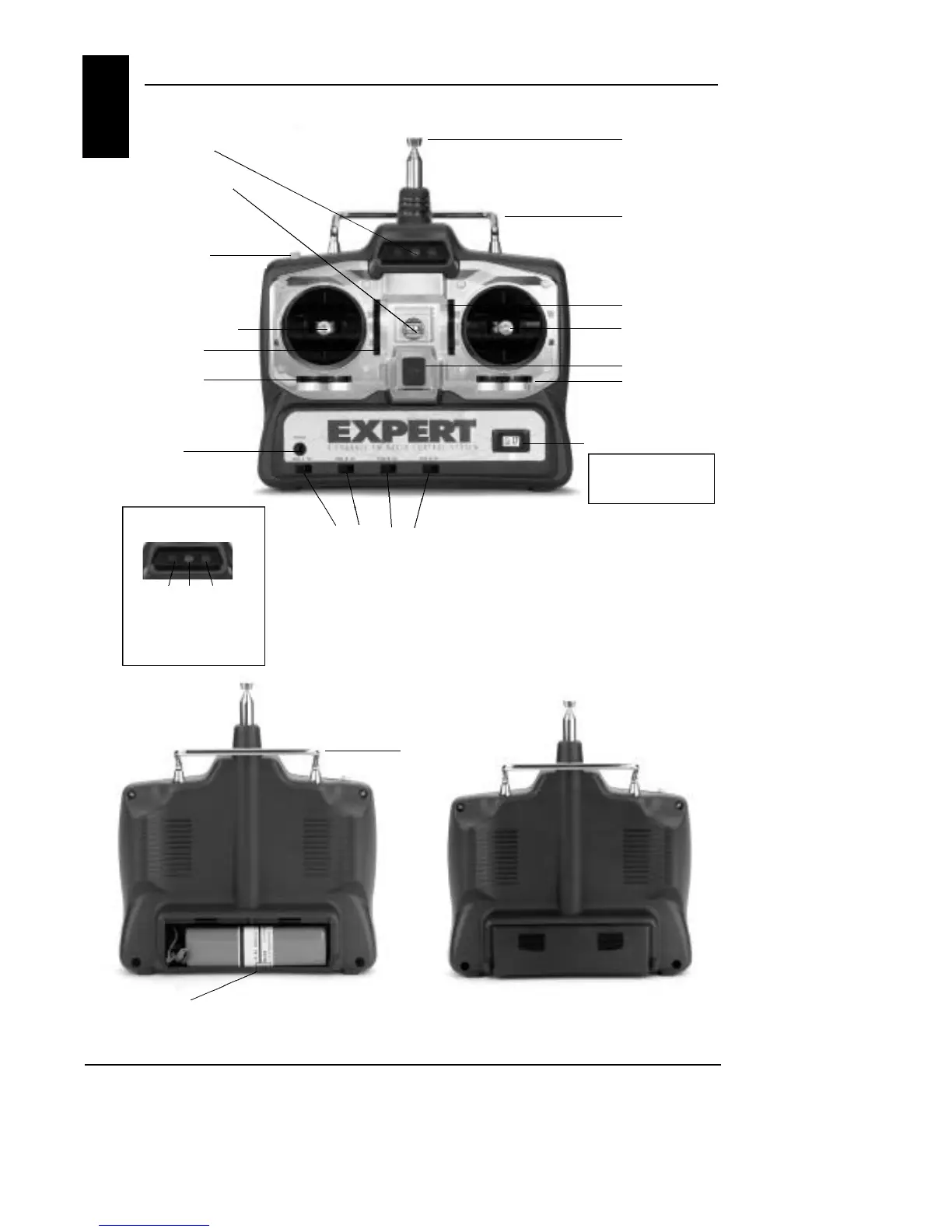

TRANSMITTER LAY O U T
2.2
Transmitter Battery
Voltage LED
Neck Strap Attachment
Throttle/Rudder Stick
Trainer Button
Transmitter Antenna
Carrying Bar
Elevator Trim
Aileron Trim
Elevator/Aileron Stick
Power Switch
Transmitter Crystal
JR brand replacement crystals
recommended order JRPXF**
Replace ** with channel number
Throttle Trim
Rudder Trim
Trainer Cord Jack
(Cord not included,
order EXRA400.)
Servo Reversing Switches
9.6V 600mAh
Ni-Cad Transmitter Battery Pack
Carrying Bar
IMPORTANT
Transmiter Battery Voltage LED Indicator
Low: Do not fly
Mid: System should be recharged
Full: System ok to fly
Low Mid Full
Red Orange Green
