380820-en-GB_V1.5 3/15
6
Operation
Preparation for use
1. Place the supply on a flat level surface.
2. Select the input voltage using the switch (1) on the
rear of the supply.
3. Ensure that the sides and the back of the unit are
not blocked. Leave at least 2” (5 cm) of space for
good ventilation.

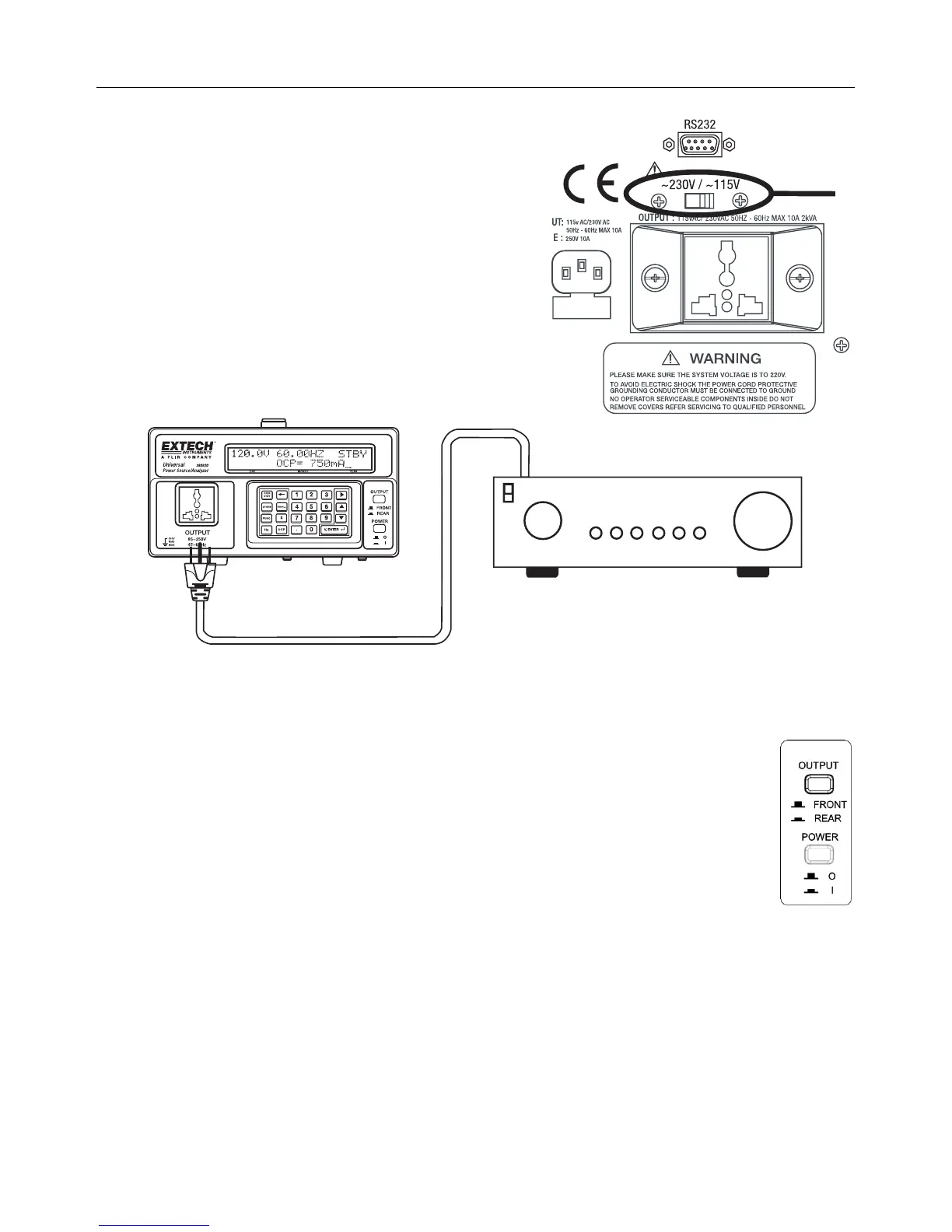

Basic Test Setup Diagram
Connect the Unit Under Test to the 380820.
Front and Rear Output Select
When the unit is switched ON, use the OUTPUT button to select the display for the
Front or Rear output data. When the push button is in the out position, the LCD
displays the data for the Front output. When depressed, the LCD will display the
power data for the Rear output.
Note: The voltage present at the REAR output cannot be set.
The input voltage is looped through the AC INPUT to the REAR output.
1
