Extech Instruments 380947 User Manual

380947 V3.0V 10/06
4

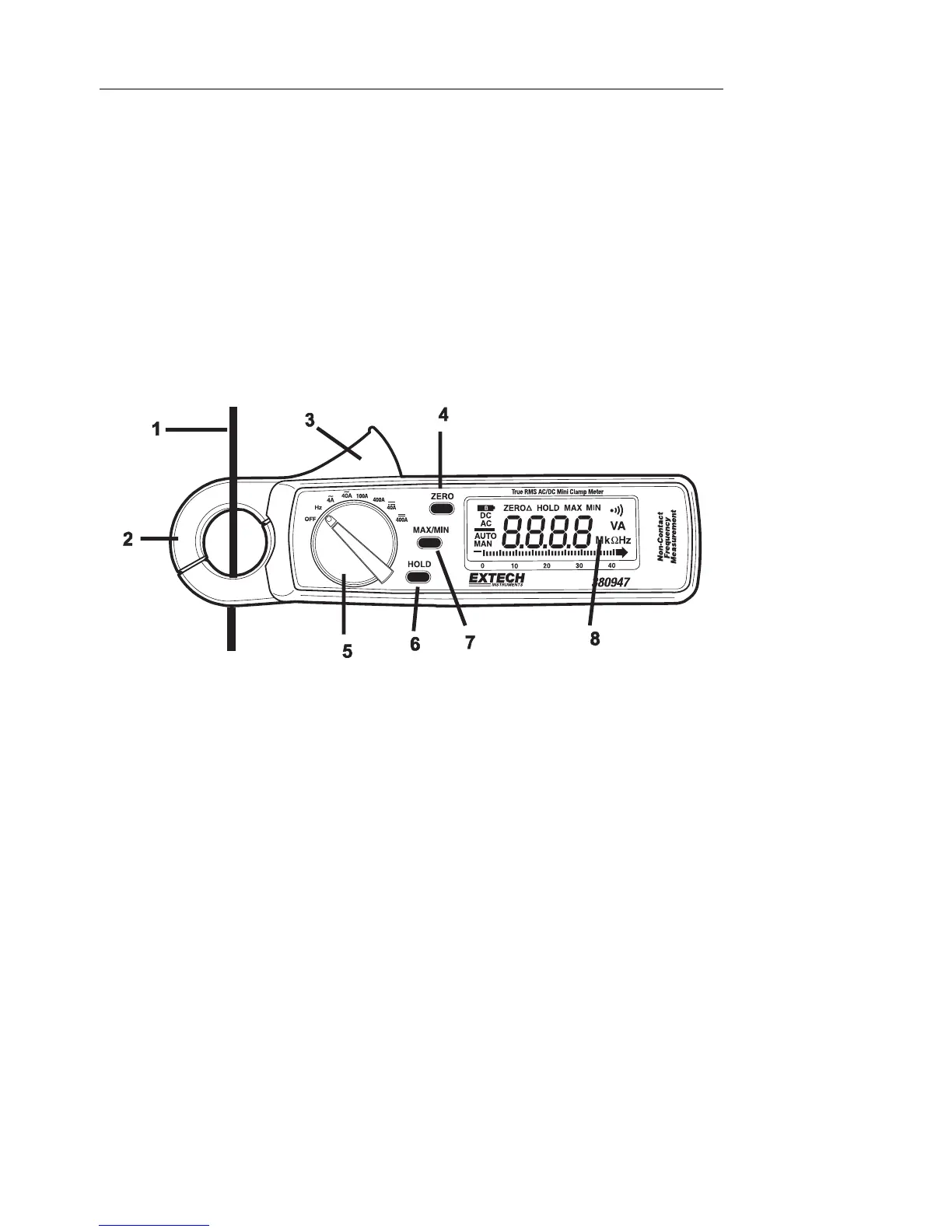

Meter Description
1. Conductor under test
2. Clamp Jaws
3. Jaw trigger – Opens the meter jaws
4. ZERO / Relative button – Zeroes the DCA reading
5. Function select switch
6. HOLD button to freeze displayed reading
7. MAX/MIN button – Press to track and view highest and lowest readings
8. LCD Display with function indicators, units of measure, and bargraph
www.burntec.com

Extech Instruments 380947 Specifications

General

Brand	Extech Instruments
Model	380947
Category	Multimeter
Language	English
